SK410

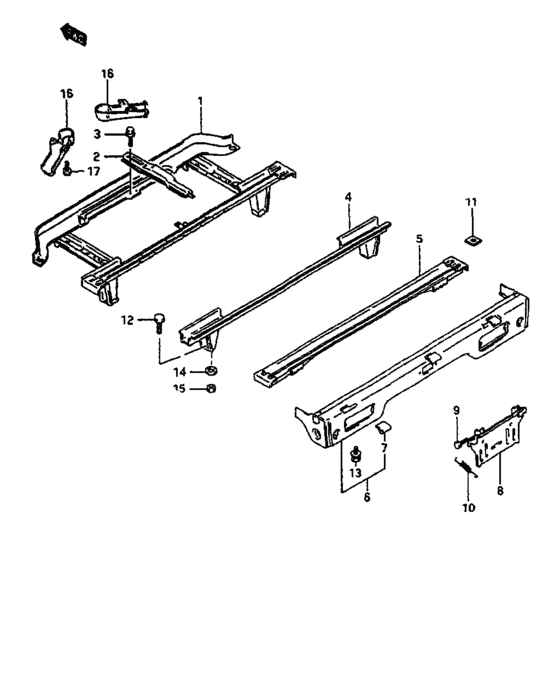

Deck floor member (K) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 66101-62C20-000 | MEMBER ASSY,DECK FL FR |
| 2 | 67911-85001-000 | MEMBER,SERVICE HOLE,CTR |
| 3 | 01550-06123-000 | Bolt |
| 3 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 3 | 01550-0612A-000 | Bolt |
| 4 | 66201-51F01-000 | クロスメンバ,デッキフロア,NO.3 |
| 4 | 66201-51F02-000 | CROSSMEMBER,DECK FL NO.3 |
| 5 | 66210-85090-000 | X MBR,DECK FLOOR NO.4 |
| 6 | 66102-62C00-000 | MEMBER ASSY,DECK FL TAIL |
| 7 | 66571-70D00-000 | HINGE,DECK GATE |
| 8 | 73860-70D00-000 | BRACKET,RR LICENSE |
| 9 | 09100-06075-000 | BOLT(6X14) - Bolt, carrier (6x14) |
| 10 | 09443-15004-000 | SPRING |
| 11 | 73221-67400-000 | PAD,MOUNTING |
| 12 | 09118-10009-000 | BOLT(10X25) |
| 13 | 09118-10052-000 | BOLT(10X30) |
| 14 | 09160-10002-000 | ワッシャ,10.5X30X3.2 |
| 14 | 09160-10094-000 | WASHER(10.5X30X3.2) |
| 15 | 08310-00103-000 | Nut |
| 15 | 08310-0010B-000 | NUT |
| 15 | 08310-0010A-000 | NUT |
| 16 | 72811-85000-000 | BRACKET,RR BODY FLOOR DRAIN |
| 17 | 02162-06123-000 | Bolt (6x12) |
| 17 | 02162-0612B-000 | SCREW - Bolt |
| 17 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Deck floor member (K) |
| 01550-0612A-000 | Bolt | Deck floor member (K) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Deck floor member (K) |
| 02162-06123-000 | Bolt (6x12) | Deck floor member (K) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Deck floor member (K) |
| 02162-0612B-000 | SCREW - Bolt | Deck floor member (K) |
| 08310-00103-000 | Nut | Deck floor member (K) |
| 08310-0010A-000 | NUT | Deck floor member (K) |
| 08310-0010B-000 | NUT | Deck floor member (K) |
| 09100-06075-000 | BOLT(6X14) - Bolt, carrier (6x14) | Deck floor member (K) |
| 09118-10009-000 | BOLT(10X25) | Deck floor member (K) |
| 09118-10052-000 | BOLT(10X30) | Deck floor member (K) |
| 09160-10002-000 | ワッシャ,10.5X30X3.2 | Deck floor member (K) |
| 09160-10094-000 | WASHER(10.5X30X3.2) | Deck floor member (K) |
| 09443-15004-000 | SPRING | Deck floor member (K) |
| 66101-62C20-000 | MEMBER ASSY,DECK FL FR | Deck floor member (K) |
| 66102-62C00-000 | MEMBER ASSY,DECK FL TAIL | Deck floor member (K) |
| 66201-51F01-000 | クロスメンバ,デッキフロア,NO.3 | Deck floor member (K) |
| 66201-51F02-000 | CROSSMEMBER,DECK FL NO.3 | Deck floor member (K) |
| 66210-85090-000 | X MBR,DECK FLOOR NO.4 | Deck floor member (K) |
| 66571-70D00-000 | HINGE,DECK GATE | Deck floor member (K) |
| 67911-85001-000 | MEMBER,SERVICE HOLE,CTR | Deck floor member (K) |
| 72811-85000-000 | BRACKET,RR BODY FLOOR DRAIN | Deck floor member (K) |
| 73221-67400-000 | PAD,MOUNTING | Deck floor member (K) |
| 73860-70D00-000 | BRACKET,RR LICENSE | Deck floor member (K) |
