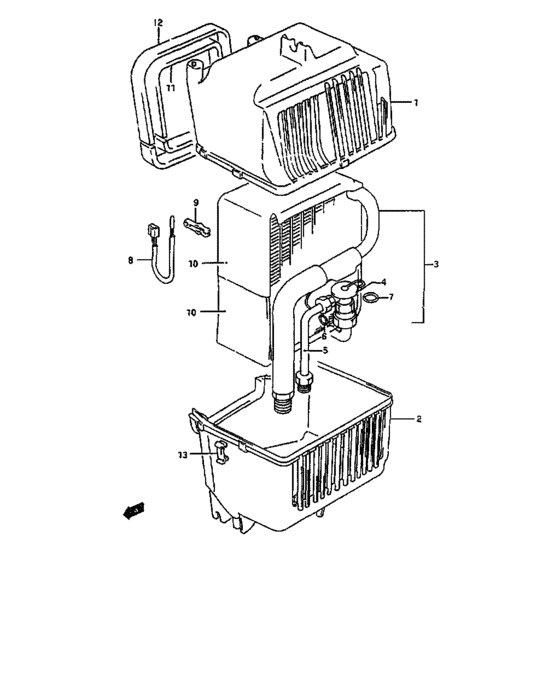

Cooling unit (RHD)
15
| # | OEM | Part name |
|---|
| 0 |
95400-68C60-000 |
Cooling unit |
| 1 |
95421-60C00-000 |
CASE,EVAPO,UPPER |
| 2 |
95422-60C01-000 |
CASE,EVAPO,LOWER |
| 3 |
95410-68C60-000 |
CORE,EVAP |
| 4 |
95431-72B00-000 |
Valve,expansion |
| 4 |
95431-72B20-000 |
VALVE,EXPANSION |
| 5 |
95412-68C60-000 |
Pipe, valve inlet |
| 6 |
95891-50G00-000 |
O-RING,D:1.8 ID:6.7 |
| 7 |
95895-50G00-000 |
O-RING,D:2.4 ID:10.8 |
| 8 |
95451-78041-000 |
THERMISTOR,EVAP |
| 9 |
95452-70B21-000 |
CLAMP,THERMISTER |
| 10 |
95426-60C00-000 |
Packing,core |
| 11 |
95423-85000-000 |
PACKING,AIR INTAKE |
| 12 |
95425-85000-000 |
PACKING,EVAPORATOR |
| 13 |
74316-85500-000 |
CLAMP - Clamp, case |
| OEM |
Part name |
Category |
| 74316-85500-000 |
CLAMP - Clamp, case |
Cooling unit (RHD) |
| 95400-68C60-000 |
Cooling unit |
Cooling unit (RHD) |
| 95410-68C60-000 |
CORE,EVAP |
Cooling unit (RHD) |
| 95412-68C60-000 |
Pipe, valve inlet |
Cooling unit (RHD) |
| 95421-60C00-000 |
CASE,EVAPO,UPPER |
Cooling unit (RHD) |
| 95422-60C01-000 |
CASE,EVAPO,LOWER |
Cooling unit (RHD) |
| 95423-85000-000 |
PACKING,AIR INTAKE |
Cooling unit (RHD) |
| 95425-85000-000 |
PACKING,EVAPORATOR |
Cooling unit (RHD) |
| 95426-60C00-000 |
Packing,core |
Cooling unit (RHD) |
| 95431-72B00-000 |
Valve,expansion |
Cooling unit (RHD) |
| 95431-72B20-000 |
VALVE,EXPANSION |
Cooling unit (RHD) |
| 95451-78041-000 |
THERMISTOR,EVAP |
Cooling unit (RHD) |
| 95452-70B21-000 |
CLAMP,THERMISTER |
Cooling unit (RHD) |
| 95891-50G00-000 |
O-RING,D:1.8 ID:6.7 |
Cooling unit (RHD) |
| 95895-50G00-000 |
O-RING,D:2.4 ID:10.8 |
Cooling unit (RHD) |
