Search › Model › SK410
SK410

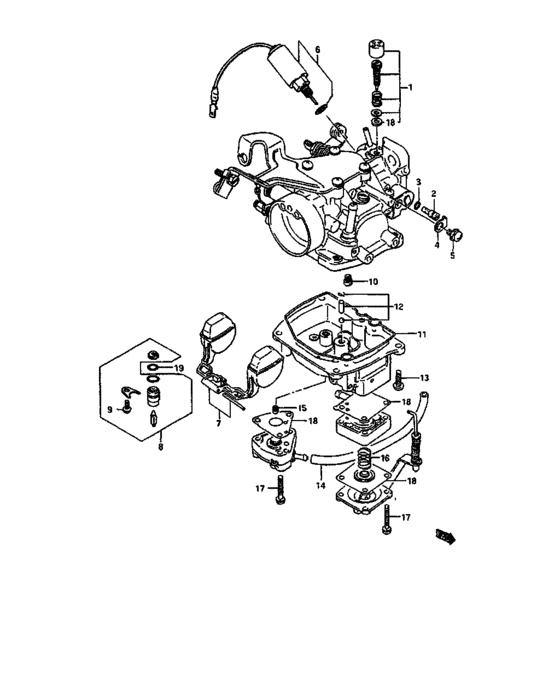

Carburetor (CARBURETOR) 73
| # | OEM | Part name |
|---|---|---|
| 0 | 13200-85231-000 | CARBURETOR ASSY |
| 0 | 13200-85260-000 | Carburetor assy |
| 1 | 13270-855T0-000 | SCREW SET,IDLE ADJUST |
| 1 | 13433-79110-000 | PACKING |
| 2 | 09492-47006-000 | JET,PILOT |
| 2 | 13432-47090-000 | WASHER |
| 3 | 13278-45010-000 | O RING - O-ring |
| 3 | 13268-51010-000 | Throt stop scr - Spring |
| 3 | 13444-61A00-000 | SPRING |
| 4 | 13398-78110-000 | PLATE |
| 4 | 13379-85260-000 | Screw, pilot |
| 5 | 02112-75103-000 | Screw |
| 5 | 02112-7510A-000 | SCREW |
| 5 | 13427-38300-000 | WASHER |
| 6 | 13260-797T0-000 | SOLENOID SET |
| 7 | 13250-852T0-000 | FLOAT SET |
| 8 | 13370-60CT0-000 | VALVE SET,NEEDLE |
| 9 | 02112-04087-000 | SCREW |
| 9 | 13399-78110-000 | Screw |
| 10 | 09491-21024-000 | JET,MAIN |
| 10 | 13260-79721-000 | Valve, solenoid |
| 11 | 13251-79110-000 | O-RING |
| 11 | 13249-31210-000 | WASHER |
| 11 | 09168-08016-000 | GASKET(8.2X14X1) - Gasket (8.2x14x1.0) |
| 12 | 13240-852T0-000 | WEIGHT SET,PUMP |
| 12 | 13262-79720-000 | Clip |
| 12 | 13254-83090-000 | CLAMP |
| 13 | 02142-05163-000 | Bolt - Screw |
| 13 | 02142-0516B-000 | SCREW |
| 13 | 02142-0516A-000 | SCREW |
| 13 | 13250-85200-000 | Float |
| 14 | 09355-35754-600 | ホース,3.5X7.5X600 |
| 14 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 14 | 09355-35006-601 | Hose(3.5X7.5X601) |
| 14 | 13254-01010-000 | PIN,FLOAT |
| 15 | 09492-65005-000 | JET,AIR(65) - Jet, pilot air (65) |
| 15 | 13370-77100-000 | Valve assy, needle |
| 16 | 13494-78420-000 | SPRING,PUMP |
| 16 | 13374-79110-000 | O-RING |
| 17 | 02112-34253-000 | No description - Screw |
| 17 | 02112-3425B-000 | SCREW |
| 17 | 13376-84110-000 | 13376-19f00 - Filter |
| 17 | 13376-19F00-000 | FILTER |
| 18 | 13380-793T0-000 | GASKET SET,CARB |
| 18 | 13373-39110-000 | PLATE |
| 19 | 13378-85200-000 | SHIM T:0.2 |
| 19 | 13378-85210-000 | SHIM T:0.3 |
| 19 | 13378-85220-000 | SHIM T:0.4 |
| 19 | 13378-85230-000 | Shim - T:0.5 |
| 19 | 13602-04088-000 | Screw |
| 20 | 09491-22020-000 | Jet, main |
| 22 | 13322-84000-000 | BALL |
| 23 | 13321-85200-000 | Weight |
| 24 | 13423-85000-000 | CHIP |
| 25 | 02112-05166-000 | Screw |
| 25 | 02112-0516B-000 | SCREW |
| 25 | 02112-0516A-000 | SCREW |
| 26 | 08321-21056-000 | Lock washer |
| 26 | 08321-0105B-000 | WASHER,LOCK |
| 26 | 08321-0105A-000 | WASHER,LOCK |
| 27 | 13683-85200-000 | ホース |
| 27 | 09358-35754-600 | ホース,3.5X7.5X600 |
| 28 | 09492-45027-000 | JET,ENRICHMENT(55) |
| 29 | 13438-79000-000 | Gasket |
| 30 | 13435-85200-000 | Body assy, enrich |
| 31 | 13361-85200-000 | Gasket |
| 33 | 13491-79110-000 | DIAPHRAGM |
| 34 | 02112-04256-000 | スクリュ |
| 34 | 02112-0425B-000 | SCREW |
| 35 | 08321-21046-000 | Lock washer |
| 35 | 08321-0104A-000 | WASHER,LOCK |
| 36 | 13200-85850-000 | Gasket set - Ref.1,7,11,16,21,29,31,33 |
| 36 | 13200-85891-000 | GASKET SET,CARB |
| OEM | Part name | Category |
|---|---|---|
| 02112-04087-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-04256-000 | スクリュ | Carburetor (CARBURETOR) |
| 02112-0425B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-05166-000 | Screw | Carburetor (CARBURETOR) |
| 02112-0516A-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-0516B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-34253-000 | No description - Screw | Carburetor (CARBURETOR) |
| 02112-3425B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-75103-000 | Screw | Carburetor (CARBURETOR) |
| 02112-7510A-000 | SCREW | Carburetor (CARBURETOR) |
| 02142-05163-000 | Bolt - Screw | Carburetor (CARBURETOR) |
| 02142-0516A-000 | SCREW | Carburetor (CARBURETOR) |
| 02142-0516B-000 | SCREW | Carburetor (CARBURETOR) |
| 08321-0104A-000 | WASHER,LOCK | Carburetor (CARBURETOR) |
| 08321-0105A-000 | WASHER,LOCK | Carburetor (CARBURETOR) |
| 08321-0105B-000 | WASHER,LOCK | Carburetor (CARBURETOR) |
| 08321-21046-000 | Lock washer | Carburetor (CARBURETOR) |
| 08321-21056-000 | Lock washer | Carburetor (CARBURETOR) |
| 09168-08016-000 | GASKET(8.2X14X1) - Gasket (8.2x14x1.0) | Carburetor (CARBURETOR) |
| 09355-35006-601 | Hose(3.5X7.5X601) | Carburetor (CARBURETOR) |
| 09355-35754-600 | ホース,3.5X7.5X600 | Carburetor (CARBURETOR) |
| 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | Carburetor (CARBURETOR) |
| 09358-35754-600 | ホース,3.5X7.5X600 | Carburetor (CARBURETOR) |
| 09491-21024-000 | JET,MAIN | Carburetor (CARBURETOR) |
| 09491-22020-000 | Jet, main | Carburetor (CARBURETOR) |
| 09492-45027-000 | JET,ENRICHMENT(55) | Carburetor (CARBURETOR) |
| 09492-47006-000 | JET,PILOT | Carburetor (CARBURETOR) |
| 09492-65005-000 | JET,AIR(65) - Jet, pilot air (65) | Carburetor (CARBURETOR) |
| 13200-85231-000 | CARBURETOR ASSY | Carburetor (CARBURETOR) |
| 13200-85260-000 | Carburetor assy | Carburetor (CARBURETOR) |
| 13200-85850-000 | Gasket set - Ref.1,7,11,16,21,29,31,33 | Carburetor (CARBURETOR) |
| 13200-85891-000 | GASKET SET,CARB | Carburetor (CARBURETOR) |
| 13240-852T0-000 | WEIGHT SET,PUMP | Carburetor (CARBURETOR) |
| 13249-31210-000 | WASHER | Carburetor (CARBURETOR) |
| 13250-85200-000 | Float | Carburetor (CARBURETOR) |
| 13250-852T0-000 | FLOAT SET | Carburetor (CARBURETOR) |
| 13251-79110-000 | O-RING | Carburetor (CARBURETOR) |
| 13254-01010-000 | PIN,FLOAT | Carburetor (CARBURETOR) |
| 13254-83090-000 | CLAMP | Carburetor (CARBURETOR) |
| 13260-79721-000 | Valve, solenoid | Carburetor (CARBURETOR) |
| 13260-797T0-000 | SOLENOID SET | Carburetor (CARBURETOR) |
| 13262-79720-000 | Clip | Carburetor (CARBURETOR) |
| 13268-51010-000 | Throt stop scr - Spring | Carburetor (CARBURETOR) |
| 13270-855T0-000 | SCREW SET,IDLE ADJUST | Carburetor (CARBURETOR) |
| 13278-45010-000 | O RING - O-ring | Carburetor (CARBURETOR) |
| 13321-85200-000 | Weight | Carburetor (CARBURETOR) |
| 13322-84000-000 | BALL | Carburetor (CARBURETOR) |
| 13361-85200-000 | Gasket | Carburetor (CARBURETOR) |
| 13370-60CT0-000 | VALVE SET,NEEDLE | Carburetor (CARBURETOR) |
| 13370-77100-000 | Valve assy, needle | Carburetor (CARBURETOR) |
| 13373-39110-000 | PLATE | Carburetor (CARBURETOR) |
| 13374-79110-000 | O-RING | Carburetor (CARBURETOR) |
| 13376-19F00-000 | FILTER | Carburetor (CARBURETOR) |
| 13376-84110-000 | 13376-19f00 - Filter | Carburetor (CARBURETOR) |
| 13378-85200-000 | SHIM T:0.2 | Carburetor (CARBURETOR) |
| 13378-85210-000 | SHIM T:0.3 | Carburetor (CARBURETOR) |
| 13378-85220-000 | SHIM T:0.4 | Carburetor (CARBURETOR) |
| 13378-85230-000 | Shim - T:0.5 | Carburetor (CARBURETOR) |
| 13379-85260-000 | Screw, pilot | Carburetor (CARBURETOR) |
| 13380-793T0-000 | GASKET SET,CARB | Carburetor (CARBURETOR) |
| 13398-78110-000 | PLATE | Carburetor (CARBURETOR) |
| 13399-78110-000 | Screw | Carburetor (CARBURETOR) |
| 13423-85000-000 | CHIP | Carburetor (CARBURETOR) |
| 13427-38300-000 | WASHER | Carburetor (CARBURETOR) |
| 13432-47090-000 | WASHER | Carburetor (CARBURETOR) |
| 13433-79110-000 | PACKING | Carburetor (CARBURETOR) |
| 13435-85200-000 | Body assy, enrich | Carburetor (CARBURETOR) |
| 13438-79000-000 | Gasket | Carburetor (CARBURETOR) |
| 13444-61A00-000 | SPRING | Carburetor (CARBURETOR) |
| 13491-79110-000 | DIAPHRAGM | Carburetor (CARBURETOR) |
| 13494-78420-000 | SPRING,PUMP | Carburetor (CARBURETOR) |
| 13602-04088-000 | Screw | Carburetor (CARBURETOR) |
| 13683-85200-000 | ホース | Carburetor (CARBURETOR) |
