| 01550-06163-000 |
Bolt |

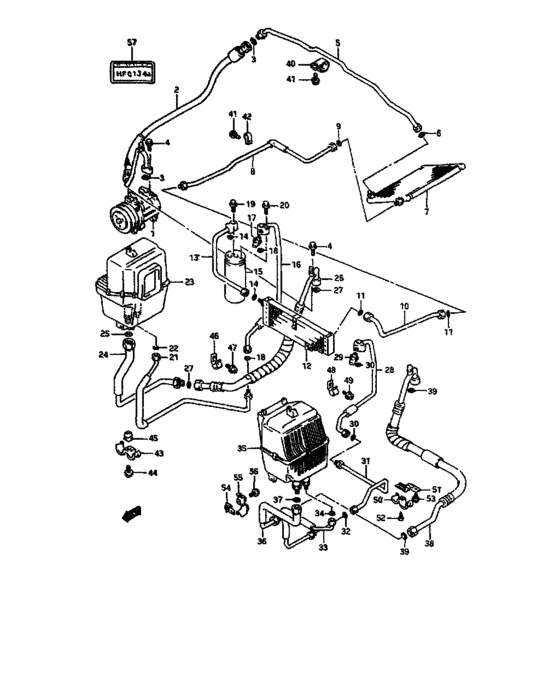

Air con piping (V) |
| 01550-0616A-000 |
Bolt |
Air con piping (V) |
| 01550-0616B-000 |
Bolt |
Air con piping (V) |
| 01550-06253-000 |
Bolt (6x25) |
Air con piping (V) |
| 01550-0625A-000 |
Bolt |
Air con piping (V) |
| 01550-0625B-000 |
Bolt - Bolt, head cover |
Air con piping (V) |
| 01550-06353-000 |
Bolt |
Air con piping (V) |
| 01550-0635A-000 |
Bolt |
Air con piping (V) |
| 01550-0635B-000 |
Bolt |
Air con piping (V) |
| 03141-05123-000 |
Screw 5 x 12 - Tapping screw |
Air con piping (V) |
| 03141-0512A-000 |
SCREW - Screw, belt cooling duct |
Air con piping (V) |
| 09132-06006-000 |
SCREW(6X12) |
Air con piping (V) |
| 09148-06006-000 |
NUT - Nut, side |
Air con piping (V) |
| 95200-70C00-000 |
Compressor assy |
Air con piping (V) |
| 95200-70C30-000 |
COMPRESSOR ASSY |
Air con piping (V) |
| 95310-68C50-000 |
CONDENSER,SIDE |
Air con piping (V) |
| 95321-68C50-000 |
CONDENSER,FR |
Air con piping (V) |
| 95330-71B10-000 |
RECEIVER |
Air con piping (V) |
| 95400-68C50-000 |
COOLING UNIT |
Air con piping (V) |
| 95400-68C60-000 |
Cooling unit |
Air con piping (V) |
| 95526-50G10-000 |
Switch, dual pressure |
Air con piping (V) |
| 95526-50G30-000 |
SWITCH,DUAL PRESSURE |
Air con piping (V) |
| 95533-70C00-000 |
HARNESS,COMPRESSOR JOINT |
Air con piping (V) |
| 95633-60C00-000 |
STAY,EVAP PROTECTOR |
Air con piping (V) |
| 95710-68C50-000 |
HOSE,SUCT |
Air con piping (V) |
| 95710-68C60-000 |
Hose,suct |
Air con piping (V) |
| 95720-68C50-000 |
HOSE,DISCH |
Air con piping (V) |
| 95731-68C50-000 |
PIPE,EVAPORATOR INLET |
Air con piping (V) |
| 95731-68C60-000 |
Pipe, cooling unit inlet |
Air con piping (V) |
| 95732-68C50-000 |
PIPE,RECEIVER OUTLET |
Air con piping (V) |
| 95732-68C60-000 |
Pipe, receiver outlet no.1 |
Air con piping (V) |
| 95733-68C50-000 |
PIPE,FRONT COND OUTLET |
Air con piping (V) |
| 95734-68C50-000 |
PIPE,SIDE COND OUTLET |
Air con piping (V) |
| 95735-68C50-000 |
PIPE,FRONT COND INLET |
Air con piping (V) |
| 95736-68C60-000 |
Pipe, receiver outlet no.2 |
Air con piping (V) |
| 95737-68C50-000 |
PIPE,SIDE COND INLET |
Air con piping (V) |
| 95741-68C50-000 |
PIPE,EVAP OUTLET |
Air con piping (V) |
| 95741-68C60-000 |
PIPE,EVAP OUTLET |
Air con piping (V) |
| 95771-50F00-000 |
クランプ,サクションパイプ |
Air con piping (V) |
| 95771-50FV0-000 |
STAY,PIPE CLAMP SET |
Air con piping (V) |
| 95771-85000-000 |
CLAMP,EVAP PIPE |
Air con piping (V) |
| 95772-85000-000 |
STAY,PIPE CLAMP |
Air con piping (V) |
| 95773-85000-000 |
CLAMP,PIPE |
Air con piping (V) |
| 95774-60C00-000 |
CLAMP,DELIVERY PIPE |
Air con piping (V) |
| 95776-85001-000 |
CLAMP,RCVR OUTLET PIPE |
Air con piping (V) |
| 95777-85000-000 |
CLAMP,INNER PIPE |
Air con piping (V) |
| 95891-50G00-000 |
O-RING,D:1.8 ID:6.7 |
Air con piping (V) |
| 95895-50C00-000 |
O ring |
Air con piping (V) |
| 95895-50G00-000 |
O-RING,D:2.4 ID:10.8 |
Air con piping (V) |
| 95896-50G00-000 |
O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
Air con piping (V) |
| 95955-72B00-000 |
LABEL,REFRIGERANT |
Air con piping (V) |
