Search › Model › SK410

SK410

Suzuki CARRY-SUPER-CARRY · 3,906 parts · 196 categories

3,906 items

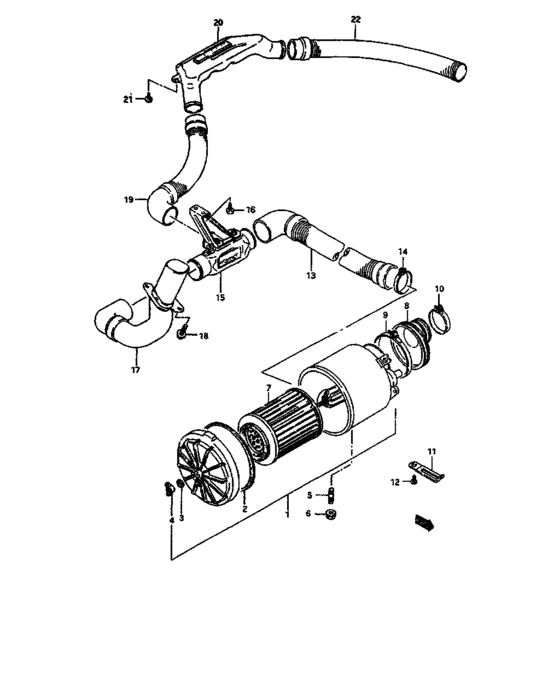

Air cleaner (V:N/SUB CLEANER) 33

#	OEM	Part name
1	13701-85230-000	Case assy, air cleaner
1	13701-852V0-000	CASE ASSY,AIR CLEANER
2	13772-77300-000	GASKET,AIR CLEANER CAP
3	08322-01063-000	Washer
3	08322-0106B-000	WASHER
4	08317-12063-000	Nut
4	08317-1206A-000	NUT
5	09108-08244-000	BOLT,STUD
6	09159-08069-000	Nut
6	09159-08135-000	NUT
7	13780-79201-000	ELEMENT,AIR CLEANER
8	13881-85200-000	BOOT,AIR CLEANER
9	09402-00303-000	CLAMP
10	09402-58306-000	CLAMP - Band
11	09404-06431-000	CLAMP(L:65) - Clamp, harness
11	09404-06432-000	CLAMP(L:65) - Clamp (l:80)
11	09404-06039-000	Clamp(L:65)
11	09404-06038-000	Clamp(L:65)
12	03141-05103-000	スクリュ
12	03142-0510B-000	SCREW
13	13860-79X50-000	HOSE,COOL AIR
14	09402-54303-000	CLAMP
15	13740-85710-000	CASE ASSY,AIR VALVE
15	13740-85700-000	CASE ASSY,AIR VALVE
16	03141-06123-000	Screw 6x12
16	03141-0612A-000	SCREW
17	13870-85710-000	PIPE,COOL AIR
18	02162-06123-000	Bolt (6x12)
18	02162-0612B-000	SCREW - Bolt
18	02162-0612A-000	SCREW - Bolt, bracket
19	13840-85702-000	HOSE,WARM AIR
20	13847-85500-000	CHAMBER,WARM AIR
22	13840-85X51-000	HOSE,WARM AIR

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	Air cleaner (V:N/SUB CLEANER)
02162-0612A-000	SCREW - Bolt, bracket	Air cleaner (V:N/SUB CLEANER)
02162-0612B-000	SCREW - Bolt	Air cleaner (V:N/SUB CLEANER)
03141-05103-000	スクリュ	Air cleaner (V:N/SUB CLEANER)
03141-06123-000	Screw 6x12	Air cleaner (V:N/SUB CLEANER)
03141-0612A-000	SCREW	Air cleaner (V:N/SUB CLEANER)
03142-0510B-000	SCREW	Air cleaner (V:N/SUB CLEANER)
08317-12063-000	Nut	Air cleaner (V:N/SUB CLEANER)
08317-1206A-000	NUT	Air cleaner (V:N/SUB CLEANER)
08322-01063-000	Washer	Air cleaner (V:N/SUB CLEANER)
08322-0106B-000	WASHER	Air cleaner (V:N/SUB CLEANER)
09108-08244-000	BOLT,STUD	Air cleaner (V:N/SUB CLEANER)
09159-08069-000	Nut	Air cleaner (V:N/SUB CLEANER)
09159-08135-000	NUT	Air cleaner (V:N/SUB CLEANER)
09402-00303-000	CLAMP	Air cleaner (V:N/SUB CLEANER)
09402-54303-000	CLAMP	Air cleaner (V:N/SUB CLEANER)
09402-58306-000	CLAMP - Band	Air cleaner (V:N/SUB CLEANER)
09404-06038-000	Clamp(L:65)	Air cleaner (V:N/SUB CLEANER)
09404-06039-000	Clamp(L:65)	Air cleaner (V:N/SUB CLEANER)
09404-06431-000	CLAMP(L:65) - Clamp, harness	Air cleaner (V:N/SUB CLEANER)
09404-06432-000	CLAMP(L:65) - Clamp (l:80)	Air cleaner (V:N/SUB CLEANER)
13701-85230-000	Case assy, air cleaner	Air cleaner (V:N/SUB CLEANER)
13701-852V0-000	CASE ASSY,AIR CLEANER	Air cleaner (V:N/SUB CLEANER)
13740-85700-000	CASE ASSY,AIR VALVE	Air cleaner (V:N/SUB CLEANER)
13740-85710-000	CASE ASSY,AIR VALVE	Air cleaner (V:N/SUB CLEANER)
13772-77300-000	GASKET,AIR CLEANER CAP	Air cleaner (V:N/SUB CLEANER)
13780-79201-000	ELEMENT,AIR CLEANER	Air cleaner (V:N/SUB CLEANER)
13840-85702-000	HOSE,WARM AIR	Air cleaner (V:N/SUB CLEANER)
13840-85X51-000	HOSE,WARM AIR	Air cleaner (V:N/SUB CLEANER)
13847-85500-000	CHAMBER,WARM AIR	Air cleaner (V:N/SUB CLEANER)
13860-79X50-000	HOSE,COOL AIR	Air cleaner (V:N/SUB CLEANER)
13870-85710-000	PIPE,COOL AIR	Air cleaner (V:N/SUB CLEANER)
13881-85200-000	BOOT,AIR CLEANER	Air cleaner (V:N/SUB CLEANER)
