Search › Model › SK408
SK408

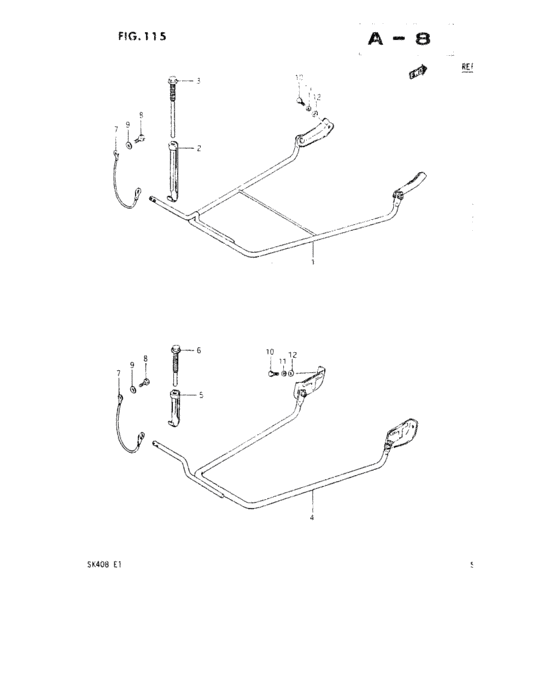

Tire carrier (V) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 71510-85511-000 | キャリア,スペアタイヤ |
| 1 | 71510-85512-000 | CARRIER,SPARE TIRE |
| 2 | 71520-85510-000 | HOOK,SPARE TIRE CARRIER |
| 3 | 71531-85510-000 | BOLT,SPARE TIRE HOOK |
| 4 | 71510-85700-000 | Carrier, spare tire |
| 4 | 71510-85701-000 | CARRIER,SPARE TIRE |
| 5 | 71520-85500-000 | Hook, carrier |
| 5 | 71520-79A10-000 | HOOK,SPARE TIRE CARRIER |
| 5 | 71520-79A00-000 | HOOKSPARE TIRE CARRIER |
| 6 | 71531-85500-000 | BOLT,SPARE TIRE HOOK |
| 7 | 71560-85500-000 | CABLE,SPARE TIRE CARRIER |
| 8 | 09100-06075-000 | BOLT(6X14) - Bolt, carrier (6x14) |
| 9 | 09161-10006-000 | New Genuine Part |
| 9 | 09161-10007-000 | WASHER(10X17X2) |
| 10 | 01107-06126-000 | Bolt 6x12 |
| 10 | 01500-0612A-000 | Bolt |
| 11 | 08321-21066-000 | Lock washer |
| 11 | 08321-0106A-000 | WASHER,LOCK |
| 12 | 08322-21066-000 | Washer |
| 12 | 08322-0106B-000 | WASHER |
| OEM | Part name | Category |
|---|---|---|
| 01107-06126-000 | Bolt 6x12 | Tire carrier (V) |
| 01500-0612A-000 | Bolt | Tire carrier (V) |
| 08321-0106A-000 | WASHER,LOCK | Tire carrier (V) |
| 08321-21066-000 | Lock washer | Tire carrier (V) |
| 08322-0106B-000 | WASHER | Tire carrier (V) |
| 08322-21066-000 | Washer | Tire carrier (V) |
| 09100-06075-000 | BOLT(6X14) - Bolt, carrier (6x14) | Tire carrier (V) |
| 09161-10006-000 | New Genuine Part | Tire carrier (V) |
| 09161-10007-000 | WASHER(10X17X2) | Tire carrier (V) |
| 71510-85511-000 | キャリア,スペアタイヤ | Tire carrier (V) |
| 71510-85512-000 | CARRIER,SPARE TIRE | Tire carrier (V) |
| 71510-85700-000 | Carrier, spare tire | Tire carrier (V) |
| 71510-85701-000 | CARRIER,SPARE TIRE | Tire carrier (V) |
| 71520-79A00-000 | HOOKSPARE TIRE CARRIER | Tire carrier (V) |
| 71520-79A10-000 | HOOK,SPARE TIRE CARRIER | Tire carrier (V) |
| 71520-85500-000 | Hook, carrier | Tire carrier (V) |
| 71520-85510-000 | HOOK,SPARE TIRE CARRIER | Tire carrier (V) |
| 71531-85500-000 | BOLT,SPARE TIRE HOOK | Tire carrier (V) |
| 71531-85510-000 | BOLT,SPARE TIRE HOOK | Tire carrier (V) |
| 71560-85500-000 | CABLE,SPARE TIRE CARRIER | Tire carrier (V) |
