| 01517-08126-000 |
Bolt, front |

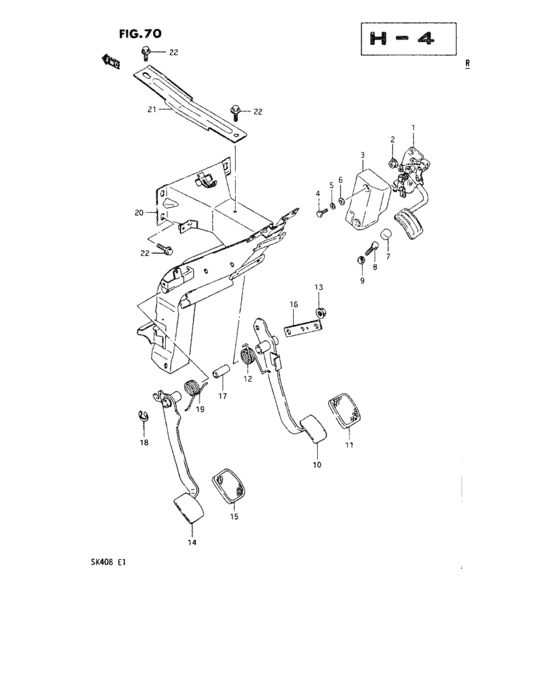

Pedal and pedal bracket (RHD) |
| 01550-0812A-000 |
Bolt |
Pedal and pedal bracket (RHD) |
| 01550-0812B-000 |
Bolt - Plug, drain |
Pedal and pedal bracket (RHD) |
| 08310-0006A-000 |
NUT |
Pedal and pedal bracket (RHD) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Pedal and pedal bracket (RHD) |
| 08310-11066-000 |
Nut |
Pedal and pedal bracket (RHD) |
| 08316-1008B-000 |
NUT |
Pedal and pedal bracket (RHD) |
| 08316-16086-000 |
Nut, reverse lever pivot |
Pedal and pedal bracket (RHD) |
| 08316-2010B-000 |
NUT |
Pedal and pedal bracket (RHD) |
| 08316-26106-000 |
Nut |
Pedal and pedal bracket (RHD) |
| 08322-0105A-000 |
WASHER - Washer, front |
Pedal and pedal bracket (RHD) |
| 08322-0105B-000 |
WASHER |
Pedal and pedal bracket (RHD) |
| 08322-21056-000 |
Washer |
Pedal and pedal bracket (RHD) |
| 08332-11106-000 |
E ring |
Pedal and pedal bracket (RHD) |
| 08332-1110A-000 |
E RING |
Pedal and pedal bracket (RHD) |
| 09100-06133-000 |
Bolt - Bolt (6x31) |
Pedal and pedal bracket (RHD) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
Pedal and pedal bracket (RHD) |
| 09128-05009-000 |
スクリュ |
Pedal and pedal bracket (RHD) |
| 09128-05101-000 |
SCREW(5X12) - Lock plate screw |
Pedal and pedal bracket (RHD) |
| 09162-05002-000 |
WASHER,LOCK - Lock washer |
Pedal and pedal bracket (RHD) |
| 09162-05005-000 |
ロックワッシャ |
Pedal and pedal bracket (RHD) |
| 09180-10056-000 |
SPACER(10.1X13X47.5) |
Pedal and pedal bracket (RHD) |
| 09251-09002-000 |
CAP(OD:13.6) |
Pedal and pedal bracket (RHD) |
| 09251-09008-000 |
Cap(Od:13.6) |
Pedal and pedal bracket (RHD) |
| 09448-29002-000 |
スプリング |
Pedal and pedal bracket (RHD) |
| 09448-29004-000 |
SPRING |
Pedal and pedal bracket (RHD) |
| 09448-30004-000 |
SPRING |
Pedal and pedal bracket (RHD) |
| 49400-70D02-000 |
PEDAL ASSY,ACCELERATOR |
Pedal and pedal bracket (RHD) |
| 49400-85010-000 |
ペダルアッシ,アクセル |
Pedal and pedal bracket (RHD) |
| 49400-85011-000 |
ペダルアッシ,アクセル |
Pedal and pedal bracket (RHD) |
| 49451-70D00-000 |
COVER,ACCEL PEDAL |
Pedal and pedal bracket (RHD) |
| 49451-85001-000 |
カバー,アクセルペダル |
Pedal and pedal bracket (RHD) |
| 49451-85002-000 |
カバー,アクセルペダル |
Pedal and pedal bracket (RHD) |
| 49610-85000-000 |
Pedal, brake |
Pedal and pedal bracket (RHD) |
| 49610-85001-000 |
Pedal, brake |
Pedal and pedal bracket (RHD) |
| 49710-85000-000 |
Bracket, pedal |
Pedal and pedal bracket (RHD) |
| 49710-85600-000 |
Bracket, pedal |
Pedal and pedal bracket (RHD) |
| 49722-79101-000 |
PLATE,PEDAL SHAFT |
Pedal and pedal bracket (RHD) |
| 49741-85000-000 |
Stay, pedal bracket |
Pedal and pedal bracket (RHD) |
| 49751-58J00-000 |
PAD,PEDAL |
Pedal and pedal bracket (RHD) |
| 49751-79001-000 |
Pad, pedal |
Pedal and pedal bracket (RHD) |
| 49810-85000-000 |
Pedal comp,clutch |
Pedal and pedal bracket (RHD) |
