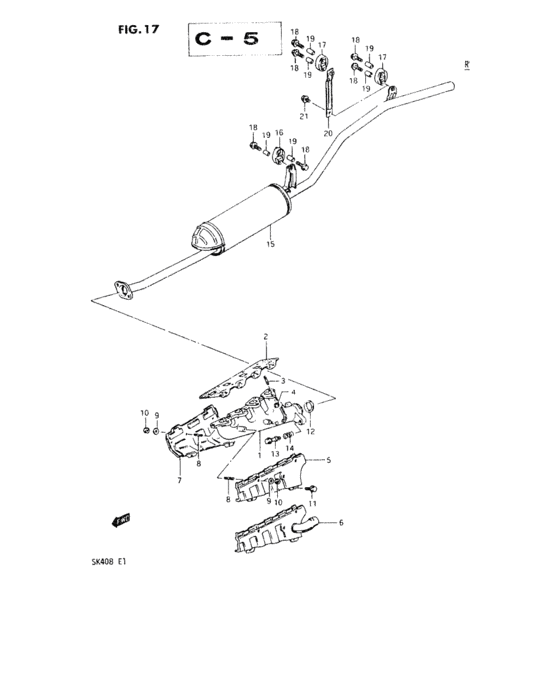

Muffler (T/K)
41
| # | OEM | Part name |
|---|
| 1 |
14111-85200-000 |
Manifold, exhaust |
| 2 |
14140-79200-000 |
Gasket |
| 2 |
14140-85200-000 |
GASKET,EXH MANF |
| 3 |
01411-08253-000 |
New Genuine Part |
| 3 |
01411-0825A-000 |
BOLT,STUD |
| 4 |
08310-11083-000 |
NUT M8X125X65 |
| 4 |
08310-0008A-000 |
NUT - Nut, bead stopper |
| 4 |
08310-0008B-000 |
NUT |
| 5 |
14121-85200-000 |
Cover, upper |
| 5 |
14120-85220-000 |
COVER,EXH MANIFOLD |
| 6 |
14120-85210-000 |
Cover, upper |
| 7 |
14125-85201-000 |
COVER,LOWER |
| 8 |
01411-06123-000 |
Bolt, stud - Stud bolt |
| 8 |
01411-0612A-000 |
BOLT,STUD |
| 9 |
08322-21063-000 |
Washer |
| 9 |
08322-0106B-000 |
WASHER |
| 10 |
08310-11063-000 |
Nut m6x1x5 |
| 10 |
08310-0006B-000 |
NUT - Nut gear shift link rod |
| 10 |
08310-0006A-000 |
NUT |
| 11 |
01517-06103-000 |
BOLT 6X10 |
| 11 |
01550-0610A-000 |
Bolt |
| 11 |
01550-0610B-000 |
Bolt |
| 12 |
14183-82000-000 |
リング,シール |
| 12 |
14183-820V0-000 |
RING,SEAL EXH PIPE |
| 13 |
09119-10039-000 |
Bolt |
| 13 |
14493-76G01-000 |
BOLT,EXH PIPE |
| 14 |
14492-82001-000 |
SPRING,EXH PIPE |
| 15 |
14300-85200-000 |
Muffler |
| 15 |
14300-85210-000 |
Muffler |
| 16 |
14282-78010-000 |
MOUNTING EX |
| 16 |
14281-60G11-000 |
MOUNTING,MUFFLER(HS60) |
| 17 |
14281-79010-000 |
Mounting, muffler |
| 18 |
01517-08353-000 |
Bolt |
| 18 |
01550-0835B-000 |
Bolt |
| 18 |
01550-0835A-000 |
Bolt |
| 19 |
09180-08057-000 |
Spacer |
| 19 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 20 |
14327-79210-000 |
Bracket, tail adapter |
| 21 |
01517-08123-000 |
BOLT 8X12 |
| 21 |
01550-0812B-000 |
Bolt - Plug, drain |
| 21 |
01550-0812A-000 |
Bolt |
| OEM |
Part name |
Category |
| 01411-06123-000 |
Bolt, stud - Stud bolt |
Muffler (T/K) |
| 01411-0612A-000 |
BOLT,STUD |
Muffler (T/K) |
| 01411-08253-000 |
New Genuine Part |
Muffler (T/K) |
| 01411-0825A-000 |
BOLT,STUD |
Muffler (T/K) |
| 01517-06103-000 |
BOLT 6X10 |
Muffler (T/K) |
| 01517-08123-000 |
BOLT 8X12 |
Muffler (T/K) |
| 01517-08353-000 |
Bolt |
Muffler (T/K) |
| 01550-0610A-000 |
Bolt |
Muffler (T/K) |
| 01550-0610B-000 |
Bolt |
Muffler (T/K) |
| 01550-0812A-000 |
Bolt |
Muffler (T/K) |
| 01550-0812B-000 |
Bolt - Plug, drain |
Muffler (T/K) |
| 01550-0835A-000 |
Bolt |
Muffler (T/K) |
| 01550-0835B-000 |
Bolt |
Muffler (T/K) |
| 08310-0006A-000 |
NUT |
Muffler (T/K) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Muffler (T/K) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Muffler (T/K) |
| 08310-0008B-000 |
NUT |
Muffler (T/K) |
| 08310-11063-000 |
Nut m6x1x5 |
Muffler (T/K) |
| 08310-11083-000 |
NUT M8X125X65 |
Muffler (T/K) |
| 08322-0106B-000 |
WASHER |
Muffler (T/K) |
| 08322-21063-000 |
Washer |
Muffler (T/K) |
| 09119-10039-000 |
Bolt |
Muffler (T/K) |
| 09180-08057-000 |
Spacer |
Muffler (T/K) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
Muffler (T/K) |
| 14111-85200-000 |
Manifold, exhaust |
Muffler (T/K) |
| 14120-85210-000 |
Cover, upper |
Muffler (T/K) |
| 14120-85220-000 |
COVER,EXH MANIFOLD |
Muffler (T/K) |
| 14121-85200-000 |
Cover, upper |
Muffler (T/K) |
| 14125-85201-000 |
COVER,LOWER |
Muffler (T/K) |
| 14140-79200-000 |
Gasket |
Muffler (T/K) |
| 14140-85200-000 |
GASKET,EXH MANF |
Muffler (T/K) |
| 14183-82000-000 |
リング,シール |
Muffler (T/K) |
| 14183-820V0-000 |
RING,SEAL EXH PIPE |
Muffler (T/K) |
| 14281-60G11-000 |
MOUNTING,MUFFLER(HS60) |
Muffler (T/K) |
| 14281-79010-000 |
Mounting, muffler |
Muffler (T/K) |
| 14282-78010-000 |
MOUNTING EX |
Muffler (T/K) |
| 14300-85200-000 |
Muffler |
Muffler (T/K) |
| 14300-85210-000 |
Muffler |
Muffler (T/K) |
| 14327-79210-000 |
Bracket, tail adapter |
Muffler (T/K) |
| 14492-82001-000 |
SPRING,EXH PIPE |
Muffler (T/K) |
| 14493-76G01-000 |
BOLT,EXH PIPE |
Muffler (T/K) |
