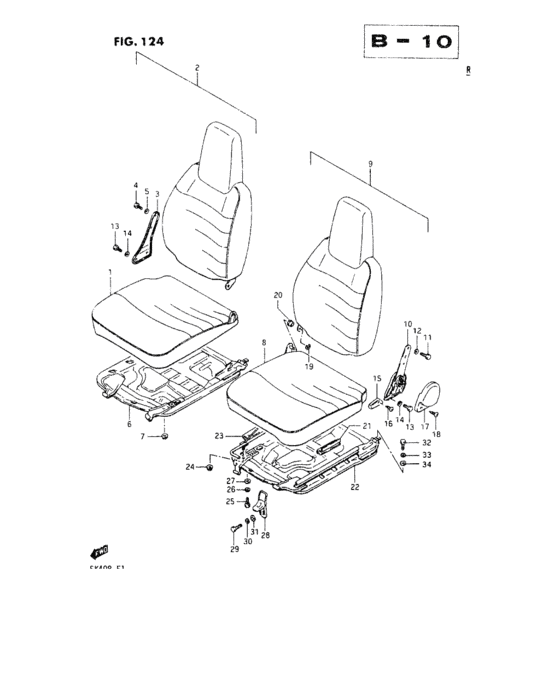

Front seat (V:Chile)
47
| # | OEM | Part name |
|---|
| 1 |
85101-85740-7WS |
Cushion assy, rh - Beige |
| 1 |
85101-85740-7WV |
Cushion assy, rh - Blue |
| 2 |
85301-85740-7WS |
Back assy, rh - Beige |
| 2 |
85301-85740-7WV |
Back assy, rh - Blue |
| 3 |
85211-85530-000 |
ステー,フロントシートバック |
| 4 |
01107-08166-000 |
Bolt m8x1.25x16 |
| 4 |
01500-0816B-000 |
Bolt |
| 5 |
08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
| 5 |
08321-0108B-000 |
WASHER,LOCK |
| 5 |
08321-0108A-000 |
WASHER,LOCK |
| 6 |
85410-85530-000 |
Panel, seat riser rh |
| 7 |
08316-26066-000 |
Nut 6mm |
| 7 |
08316-2006A-000 |
NUT |
| 7 |
08316-1006B-000 |
NUT |
| 8 |
85102-85531-7WS |
Cushion assy, lh - Beige |
| 8 |
85102-85531-7WV |
Cushion assy, lh - Blue |
| 9 |
85302-85720-7WS |
Back assy, lh - Gray |
| 9 |
85302-85720-7WV |
Back assy, lh - Blue |
| 10 |
85710-85500-000 |
Reclining assy, lh |
| 10 |
85710-85501-000 |
RECLINING ASSY,FR SEAT,L |
| 15 |
85211-84000-281 |
ノブ,リクライニングレバー |
| 15 |
85211-84000-5PK |
KNOB,RECLINING |
| 16 |
03231-05105-000 |
SCREW |
| 16 |
03231-0510B-000 |
Screw |
| 17 |
85721-84000-281 |
カバー,リクライニングアッシ,レフト(ブラック) |
| 17 |
85721-84000-5PK |
COVER,RECLINING ASSY,L |
| 18 |
03241-05125-000 |
Screw |
| 18 |
03241-0512A-000 |
SCREW |
| 19 |
08332-11068-000 |
E ring |
| 19 |
08332-1106B-000 |
E RING - Circlip |
| 19 |
08332-1106A-000 |
E RING - E ring, pinion |
| 20 |
09306-08003-000 |
Bush |
| 20 |
09306-08016-000 |
BUSH |
| 21 |
85292-85000-000 |
SPACER,FRONT SEAT SLIDE |
| 22 |
85910-85520-000 |
Panel, seat riser lh |
| 22 |
85910-85551-000 |
PANEL,FR SEAT RISER,L |
| 23 |
86810-85010-000 |
Rail assy, slide lh |
| 23 |
86810-85012-000 |
RAIL ASSY,FR SEAT,L |
| 25 |
01107-06126-000 |
Bolt 6x12 |
| 25 |
01500-0612A-000 |
Bolt |
| 26 |
08321-21066-000 |
Lock washer |
| 26 |
08321-0106A-000 |
WASHER,LOCK |
| 27 |
08322-21066-000 |
Washer |
| 27 |
08322-0106B-000 |
WASHER |
| 28 |
86650-85000-000 |
LOCK,FR SEAT CUSHION |
| 29 |
01107-06166-000 |
Bolt |
| 29 |
01500-0616A-000 |
Bolt |
| OEM |
Part name |
Category |
| 01107-06126-000 |
Bolt 6x12 |
Front seat (V:Chile) |
| 01107-06166-000 |
Bolt |
Front seat (V:Chile) |
| 01107-08166-000 |
Bolt m8x1.25x16 |
Front seat (V:Chile) |
| 01500-0612A-000 |
Bolt |
Front seat (V:Chile) |
| 01500-0616A-000 |
Bolt |
Front seat (V:Chile) |
| 01500-0816B-000 |
Bolt |
Front seat (V:Chile) |
| 03231-05105-000 |
SCREW |
Front seat (V:Chile) |
| 03231-0510B-000 |
Screw |
Front seat (V:Chile) |
| 03241-05125-000 |
Screw |
Front seat (V:Chile) |
| 03241-0512A-000 |
SCREW |
Front seat (V:Chile) |
| 08316-1006B-000 |
NUT |
Front seat (V:Chile) |
| 08316-2006A-000 |
NUT |
Front seat (V:Chile) |
| 08316-26066-000 |
Nut 6mm |
Front seat (V:Chile) |
| 08321-0106A-000 |
WASHER,LOCK |
Front seat (V:Chile) |
| 08321-0108A-000 |
WASHER,LOCK |
Front seat (V:Chile) |
| 08321-0108B-000 |
WASHER,LOCK |
Front seat (V:Chile) |
| 08321-21066-000 |
Lock washer |
Front seat (V:Chile) |
| 08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
Front seat (V:Chile) |
| 08322-0106B-000 |
WASHER |
Front seat (V:Chile) |
| 08322-21066-000 |
Washer |
Front seat (V:Chile) |
| 08332-11068-000 |
E ring |
Front seat (V:Chile) |
| 08332-1106A-000 |
E RING - E ring, pinion |
Front seat (V:Chile) |
| 08332-1106B-000 |
E RING - Circlip |
Front seat (V:Chile) |
| 09306-08003-000 |
Bush |
Front seat (V:Chile) |
| 09306-08016-000 |
BUSH |
Front seat (V:Chile) |
| 85101-85740-7WS |
Cushion assy, rh - Beige |
Front seat (V:Chile) |
| 85101-85740-7WV |
Cushion assy, rh - Blue |
Front seat (V:Chile) |
| 85102-85531-7WS |
Cushion assy, lh - Beige |
Front seat (V:Chile) |
| 85102-85531-7WV |
Cushion assy, lh - Blue |
Front seat (V:Chile) |
| 85211-84000-281 |
ノブ,リクライニングレバー |
Front seat (V:Chile) |
| 85211-84000-5PK |
KNOB,RECLINING |
Front seat (V:Chile) |
| 85211-85530-000 |
ステー,フロントシートバック |
Front seat (V:Chile) |
| 85292-85000-000 |
SPACER,FRONT SEAT SLIDE |
Front seat (V:Chile) |
| 85301-85740-7WS |
Back assy, rh - Beige |
Front seat (V:Chile) |
| 85301-85740-7WV |
Back assy, rh - Blue |
Front seat (V:Chile) |
| 85302-85720-7WS |
Back assy, lh - Gray |
Front seat (V:Chile) |
| 85302-85720-7WV |
Back assy, lh - Blue |
Front seat (V:Chile) |
| 85410-85530-000 |
Panel, seat riser rh |
Front seat (V:Chile) |
| 85710-85500-000 |
Reclining assy, lh |
Front seat (V:Chile) |
| 85710-85501-000 |
RECLINING ASSY,FR SEAT,L |
Front seat (V:Chile) |
| 85721-84000-281 |
カバー,リクライニングアッシ,レフト(ブラック) |
Front seat (V:Chile) |
| 85721-84000-5PK |
COVER,RECLINING ASSY,L |
Front seat (V:Chile) |
| 85910-85520-000 |
Panel, seat riser lh |
Front seat (V:Chile) |
| 85910-85551-000 |
PANEL,FR SEAT RISER,L |
Front seat (V:Chile) |
| 86650-85000-000 |
LOCK,FR SEAT CUSHION |
Front seat (V:Chile) |
| 86810-85010-000 |
Rail assy, slide lh |
Front seat (V:Chile) |
| 86810-85012-000 |
RAIL ASSY,FR SEAT,L |
Front seat (V:Chile) |
