SK408

Suzuki CARRY-SUPER-CARRY · 3,957 parts · 153 categories

3,957 items

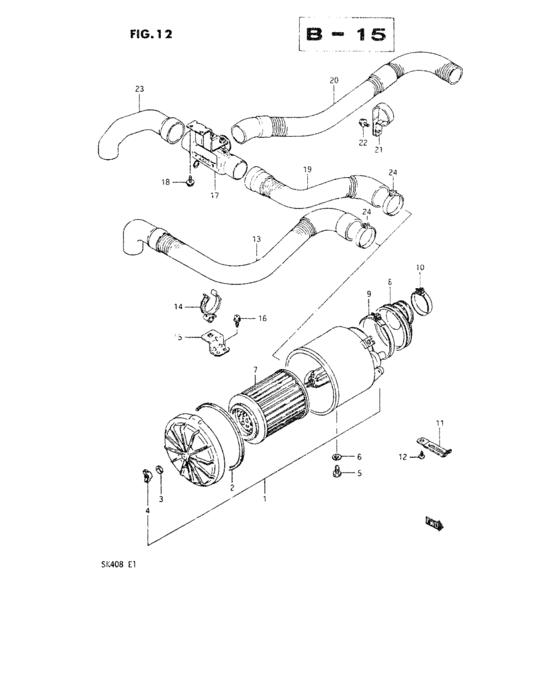

Air cleaner (T/K:N/SUB CLEANER) 37

#	OEM	Part name
1	13701-85200-000	Case assy, air cleaner
1	13701-85X52-000	CASE ASSY,AIR CLEANER
1	13701-85600-000	Case assy, air cleaner
2	13772-77300-000	GASKET,AIR CLEANER CAP
3	08322-11066-000	E ring
3	08322-0106B-000	WASHER
4	08317-12066-000	Nut
4	08317-1206A-000	NUT
5	01107-08123-000	ボルト
5	01500-0812A-000	Bolt
6	08321-21083-000	Washr,lk8.2x15. - Lock washer
6	08321-0108B-000	WASHER,LOCK
6	08321-0108A-000	WASHER,LOCK
7	13780-79201-000	ELEMENT,AIR CLEANER
8	13881-79100-000	BOOT,AIR CLEANER TO CARBURATOR
9	09402-00303-000	CLAMP
10	09402-58306-000	CLAMP - Band
11	09404-06413-000	Clamp throttle
11	09404-06432-000	CLAMP(L:65) - Clamp (l:80)
11	09404-06039-000	Clamp(L:65)
12	03141-05106-000	New Genuine Part
12	03142-0510B-000	SCREW
13	13870-85200-000	Hose, cool air
13	13870-85X51-000	HOSE,COOL AIR
14	09403-45301-000	CLAMP
15	13862-79110-000	BRACKET,WARM AIR HOSE CLAMP
16	09132-06008-000	SCREW(6X12)
17	13740-85200-000	Case assy,air valve
18	01517-06103-000	BOLT 6X10
18	01550-0610A-000	Bolt
18	01550-0610B-000	Bolt
19	13730-85200-000	Hose, valve to air cleaner
20	13840-85200-000	Hose, warm air
20	13840-85X52-000	HOSE,WARM AIR
21	09403-48401-000	CLAMP
23	13871-85400-000	ジョイント,インレットツーエアバルブ
24	09402-56309-000	CLAMP

OEM	Part name	Category
01107-08123-000	ボルト	Air cleaner (T/K:N/SUB CLEANER)
01500-0812A-000	Bolt	Air cleaner (T/K:N/SUB CLEANER)
01517-06103-000	BOLT 6X10	Air cleaner (T/K:N/SUB CLEANER)
01550-0610A-000	Bolt	Air cleaner (T/K:N/SUB CLEANER)
01550-0610B-000	Bolt	Air cleaner (T/K:N/SUB CLEANER)
03141-05106-000	New Genuine Part	Air cleaner (T/K:N/SUB CLEANER)
03142-0510B-000	SCREW	Air cleaner (T/K:N/SUB CLEANER)
08317-12066-000	Nut	Air cleaner (T/K:N/SUB CLEANER)
08317-1206A-000	NUT	Air cleaner (T/K:N/SUB CLEANER)
08321-0108A-000	WASHER,LOCK	Air cleaner (T/K:N/SUB CLEANER)
08321-0108B-000	WASHER,LOCK	Air cleaner (T/K:N/SUB CLEANER)
08321-21083-000	Washr,lk8.2x15. - Lock washer	Air cleaner (T/K:N/SUB CLEANER)
08322-0106B-000	WASHER	Air cleaner (T/K:N/SUB CLEANER)
08322-11066-000	E ring	Air cleaner (T/K:N/SUB CLEANER)
09132-06008-000	SCREW(6X12)	Air cleaner (T/K:N/SUB CLEANER)
09402-00303-000	CLAMP	Air cleaner (T/K:N/SUB CLEANER)
09402-56309-000	CLAMP	Air cleaner (T/K:N/SUB CLEANER)
09402-58306-000	CLAMP - Band	Air cleaner (T/K:N/SUB CLEANER)
09403-45301-000	CLAMP	Air cleaner (T/K:N/SUB CLEANER)
09403-48401-000	CLAMP	Air cleaner (T/K:N/SUB CLEANER)
09404-06039-000	Clamp(L:65)	Air cleaner (T/K:N/SUB CLEANER)
09404-06413-000	Clamp throttle	Air cleaner (T/K:N/SUB CLEANER)
09404-06432-000	CLAMP(L:65) - Clamp (l:80)	Air cleaner (T/K:N/SUB CLEANER)
13701-85200-000	Case assy, air cleaner	Air cleaner (T/K:N/SUB CLEANER)
13701-85600-000	Case assy, air cleaner	Air cleaner (T/K:N/SUB CLEANER)
13701-85X52-000	CASE ASSY,AIR CLEANER	Air cleaner (T/K:N/SUB CLEANER)
13730-85200-000	Hose, valve to air cleaner	Air cleaner (T/K:N/SUB CLEANER)
13740-85200-000	Case assy,air valve	Air cleaner (T/K:N/SUB CLEANER)
13772-77300-000	GASKET,AIR CLEANER CAP	Air cleaner (T/K:N/SUB CLEANER)
13780-79201-000	ELEMENT,AIR CLEANER	Air cleaner (T/K:N/SUB CLEANER)
13840-85200-000	Hose, warm air	Air cleaner (T/K:N/SUB CLEANER)
13840-85X52-000	HOSE,WARM AIR	Air cleaner (T/K:N/SUB CLEANER)
13862-79110-000	BRACKET,WARM AIR HOSE CLAMP	Air cleaner (T/K:N/SUB CLEANER)
13870-85200-000	Hose, cool air	Air cleaner (T/K:N/SUB CLEANER)
13870-85X51-000	HOSE,COOL AIR	Air cleaner (T/K:N/SUB CLEANER)
13871-85400-000	ジョイント,インレットツーエアバルブ	Air cleaner (T/K:N/SUB CLEANER)
13881-79100-000	BOOT,AIR CLEANER TO CARBURATOR	Air cleaner (T/K:N/SUB CLEANER)
