Search › Model › SK22M
SK22M

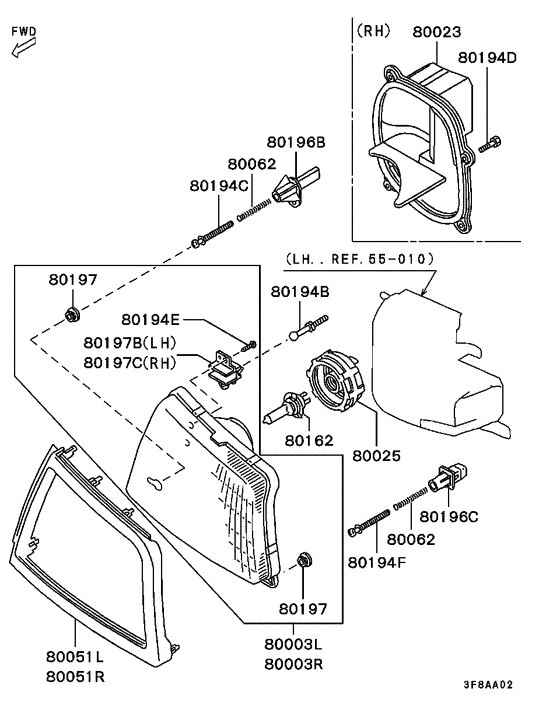

Headlamp (-0003.3) 30
| # | OEM | Part name |
|---|---|---|
| 80003 | MQ904559 | BODY, HEADLAMP, LH |
| 80003 | MQ907988 | BODY, HEADLAMP, LH |
| 80003 | MQ907995 | BODY, HEADLAMP, LH |
| 80003 | MQ904558 | BODY, HEADLAMP, RH |
| 80003 | MQ907997 | BODY, HEADLAMP, RH |
| 80003 | MQ907998 | BODY, HEADLAMP, RH |
| 80023 | MQ905063 | COVER, HEADLAMP |
| 80025 | MQ900460 | COVER, HEADLAMP BULB SOCKET |
| 80051 | MQ904561 | RING, HEADLAMP RETAINING, LH |
| 80051 | MQ907957 | RING, HEADLAMP RETAINING, LH |
| 80051 | MQ907499 | RING, HEADLAMP RETAINING, RH |
| 80051 | MQ907955 | RING, HEADLAMP RETAINING, RH |
| 80062 | MQ902217 | SPRING, FR FOG LAMP |
| 80162 | MQ906588 | BULB, HEADLAMP - 12v-60/55w,halogen |
| 80194 | MQ904557 | SCREW, HEADLAMP |
| 80194 | MQ907987 | SCREW, HEADLAMP |
| 80194 | MQ902216 | SCREW, HEADLAMP |
| 80194 | MQ904562 | SCREW, HEADLAMP |
| 80194 | MQ906299 | BOLT, AIR CLEANER |
| 80194 | MQ906300 | SCREW, HEADLAMP |
| 80194 | MQ907990 | SCREW, HEADLAMP |
| 80196 | MQ902215 | GROMMET, HEADLAMP |
| 80196 | MQ905920 | GROMMET, HEADLAMP |
| 80197 | MQ904556 | CLIP, HEADLAMP |
| 80197 | MQ907983 | CLIP, HEADLAMP |
| 80197 | MQ907984 | CLIP, HEADLAMP |
| 80197 | MQ907994 | CLIP, HEADLAMP |
| 80197 | MQ907981 | CLIP, HEADLAMP |
| 80197 | MQ907982 | CLIP, HEADLAMP |
| 80197 | MQ907993 | CLIP, HEADLAMP |
| OEM | Part name | Category |
|---|---|---|
| MQ900460 | COVER, HEADLAMP BULB SOCKET | Headlamp (-0003.3) |
| MQ902215 | GROMMET, HEADLAMP | Headlamp (-0003.3) |
| MQ902216 | SCREW, HEADLAMP | Headlamp (-0003.3) |
| MQ902217 | SPRING, FR FOG LAMP | Headlamp (-0003.3) |
| MQ904556 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ904557 | SCREW, HEADLAMP | Headlamp (-0003.3) |
| MQ904558 | BODY, HEADLAMP, RH | Headlamp (-0003.3) |
| MQ904559 | BODY, HEADLAMP, LH | Headlamp (-0003.3) |
| MQ904561 | RING, HEADLAMP RETAINING, LH | Headlamp (-0003.3) |
| MQ904562 | SCREW, HEADLAMP | Headlamp (-0003.3) |
| MQ905063 | COVER, HEADLAMP | Headlamp (-0003.3) |
| MQ905920 | GROMMET, HEADLAMP | Headlamp (-0003.3) |
| MQ906299 | BOLT, AIR CLEANER | Headlamp (-0003.3) |
| MQ906300 | SCREW, HEADLAMP | Headlamp (-0003.3) |
| MQ906588 | BULB, HEADLAMP - 12v-60/55w,halogen | Headlamp (-0003.3) |
| MQ907499 | RING, HEADLAMP RETAINING, RH | Headlamp (-0003.3) |
| MQ907955 | RING, HEADLAMP RETAINING, RH | Headlamp (-0003.3) |
| MQ907957 | RING, HEADLAMP RETAINING, LH | Headlamp (-0003.3) |
| MQ907981 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ907982 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ907983 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ907984 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ907987 | SCREW, HEADLAMP | Headlamp (-0003.3) |
| MQ907988 | BODY, HEADLAMP, LH | Headlamp (-0003.3) |
| MQ907990 | SCREW, HEADLAMP | Headlamp (-0003.3) |
| MQ907993 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ907994 | CLIP, HEADLAMP | Headlamp (-0003.3) |
| MQ907995 | BODY, HEADLAMP, LH | Headlamp (-0003.3) |
| MQ907997 | BODY, HEADLAMP, RH | Headlamp (-0003.3) |
| MQ907998 | BODY, HEADLAMP, RH | Headlamp (-0003.3) |
