SJ419D

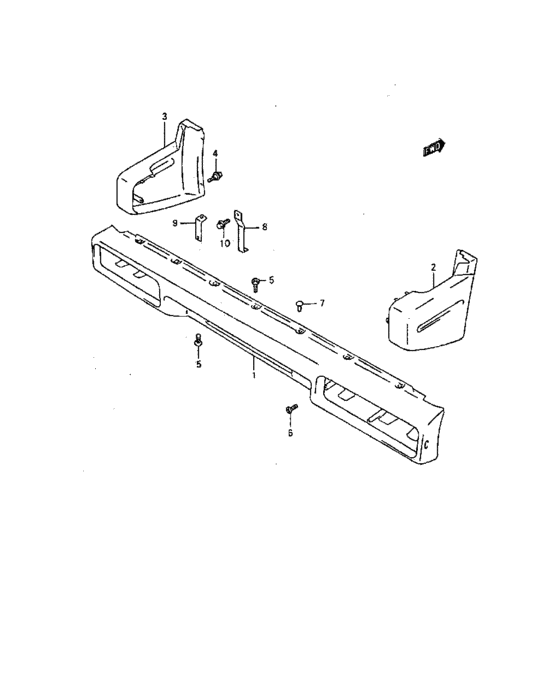

Rear bumper (SHORT) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 71811-82CB0-799 | BUMPER,RR,CENTER(PRIMARY) |
| 2 | 71831-50CA0-799 | BUMPER,RR SIDE,R |
| 3 | 71841-50CA0-799 | BUMPER,RR SIDE,L |
| 4 | 01550-06163-000 | Bolt |
| 4 | 01550-0616B-000 | Bolt |
| 4 | 01550-0616A-000 | Bolt |
| 5 | 09139-06072-000 | SCREW(6X16) |
| 6 | 09139-06052-000 | Screw, plate |
| 6 | 09122-66007-000 | SCREW(6X14) |
| 7 | 09409-07325-5PK | CLIP(BLACK) |
| 8 | 71851-82CA0-000 | BRACKET,RR BUMPER INSIDE |
| 9 | 71852-82CA0-000 | BRACKET,RR BUMPER OUTSIDE |
| 10 | 01550-06123-000 | Bolt |
| 10 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 10 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Rear bumper (SHORT) |
| 01550-0612A-000 | Bolt | Rear bumper (SHORT) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Rear bumper (SHORT) |
| 01550-06163-000 | Bolt | Rear bumper (SHORT) |
| 01550-0616A-000 | Bolt | Rear bumper (SHORT) |
| 01550-0616B-000 | Bolt | Rear bumper (SHORT) |
| 09122-66007-000 | SCREW(6X14) | Rear bumper (SHORT) |
| 09139-06052-000 | Screw, plate | Rear bumper (SHORT) |
| 09139-06072-000 | SCREW(6X16) | Rear bumper (SHORT) |
| 09409-07325-5PK | CLIP(BLACK) | Rear bumper (SHORT) |
| 71811-82CB0-799 | BUMPER,RR,CENTER(PRIMARY) | Rear bumper (SHORT) |
| 71831-50CA0-799 | BUMPER,RR SIDE,R | Rear bumper (SHORT) |
| 71841-50CA0-799 | BUMPER,RR SIDE,L | Rear bumper (SHORT) |
| 71851-82CA0-000 | BRACKET,RR BUMPER INSIDE | Rear bumper (SHORT) |
| 71852-82CA0-000 | BRACKET,RR BUMPER OUTSIDE | Rear bumper (SHORT) |
