Search › Model › SJ419D
SJ419D

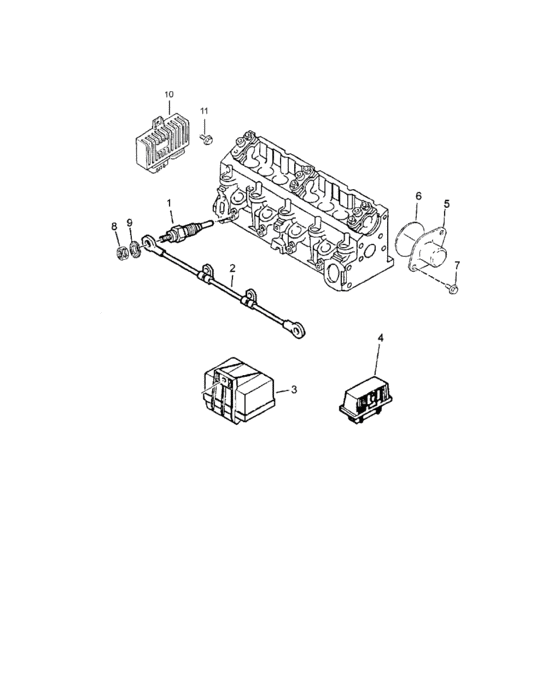

Glow plug (DIESEL) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 00000-A0128-900 | Glow plug |
| 1 | 18550-84CT0-000 | Glow plug |
| 2 | 36814-86CA0-000 | Cable |
| 3 | 38860-86CB0-000 | Pre/post heating unit |
| 4 | 31850-86CA0-000 | Relay assy - Fuse box |
| 5 | 11123-86CA0-000 | Plate |
| 6 | 15167-86CA3-000 | O ring |
| 7 | 11119-86CB4-000 | Screw |
| 9 | 08321-86CA4-000 | Spring washer |
| 10 | 38860-84CA0-000 | Relay assy, pre/post |
| 11 | 02142-06123-000 | Screw - Screw, tilt up handle |
| 11 | 02142-0612B-000 | SCREW |
| 11 | 02142-0612A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 00000-A0128-900 | Glow plug | Glow plug (DIESEL) |
| 02142-06123-000 | Screw - Screw, tilt up handle | Glow plug (DIESEL) |
| 02142-0612A-000 | SCREW | Glow plug (DIESEL) |
| 02142-0612B-000 | SCREW | Glow plug (DIESEL) |
| 08321-86CA4-000 | Spring washer | Glow plug (DIESEL) |
| 11119-86CB4-000 | Screw | Glow plug (DIESEL) |
| 11123-86CA0-000 | Plate | Glow plug (DIESEL) |
| 15167-86CA3-000 | O ring | Glow plug (DIESEL) |
| 18550-84CT0-000 | Glow plug | Glow plug (DIESEL) |
| 31850-86CA0-000 | Relay assy - Fuse box | Glow plug (DIESEL) |
| 36814-86CA0-000 | Cable | Glow plug (DIESEL) |
| 38860-84CA0-000 | Relay assy, pre/post | Glow plug (DIESEL) |
| 38860-86CB0-000 | Pre/post heating unit | Glow plug (DIESEL) |
