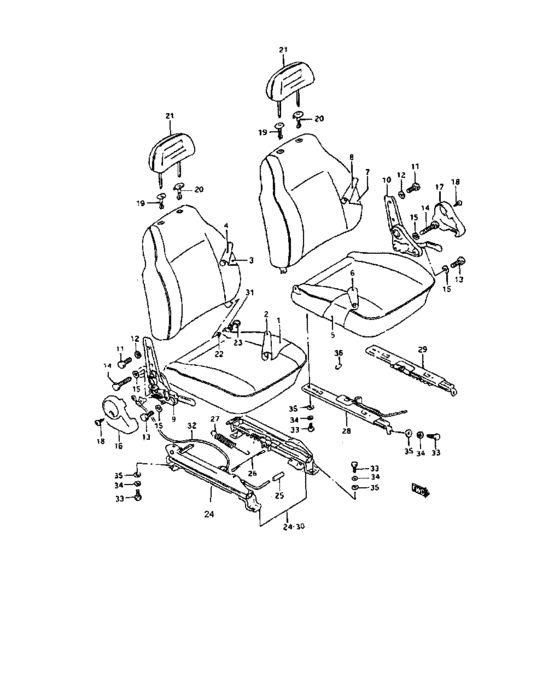

Front seat (FRONT SEAT)
63
| # | OEM | Part name |
|---|
| 1 |
85105-84C00-000 |
Cushion sub assy r/h |
| 1 |
85105-84C40-000 |
Cushion sub assy r/h |
| 2 |
85180-84C00-TX8 |
Cover assy,cushion rh |
| 2 |
85180-84C40-TX8 |
Cover assy,cushion rh |
| 2 |
85180-84C00-TX9 |
Cover assy,cushion rh |
| 2 |
85180-84C40-TX9 |
Cover assy,cushion rh |
| 3 |
85305-84C00-000 |
Back sub assy rh |
| 3 |
85305-84C40-000 |
Back sub assy rh |
| 4 |
85380-84C00-TX8 |
Cover assy,back rh |
| 4 |
85380-84C40-TX8 |
Cover assy,back rh |
| 4 |
85380-84C00-TX9 |
Cover assy,back rh |
| 4 |
85380-84C40-TX9 |
Cover assy,back rh |
| 5 |
85106-84C00-000 |
Cushion sub assy lh |
| 5 |
85106-84C40-000 |
Cushion sub assy lh |
| 6 |
85680-84C00-TX8 |
Cover assy,cushion lh |
| 6 |
85680-84C40-TX8 |
Cover assy,cushion lh |
| 6 |
85680-84C00-TX9 |
Cover assy,cushion lh |
| 6 |
85680-84C40-TX9 |
Cover assy,cushion lh |
| 7 |
85306-84C00-000 |
Back sub assy lh |
| 7 |
85306-84C40-000 |
Back sub assy lh |
| 8 |
85880-84C00-TX8 |
Cover assy,back lh |
| 8 |
85880-84C40-TX8 |
Cover assy,back lh |
| 8 |
85880-84C00-TX9 |
Cover assy,back lh |
| 8 |
85880-84C40-TX9 |
Cover assy,back lh |
| 9 |
85210-83001-T01 |
RECLINING ASSY,FR SEAT,R |
| 10 |
85710-80290-T01 |
RECLINING ASSY,FR SEAT,L |
| 11 |
01107-08163-000 |
Bolt m8x1.25x16 |
| 11 |
01500-0816B-000 |
Bolt |
| 11 |
01500-08163-000 |
Bolt |
| 12 |
08321-B3108-300 |
Washer - 8.2x15.2x1.6 |
| 13 |
01107-10403-000 |
Screw,lower |
| 13 |
01500-1040A-000 |
Bolt |
| 14 |
01500-10163-000 |
Bolt - Plug |
| 14 |
01500-1016B-000 |
Bolt - Plug, oil drain |
| 15 |
08321-A3110-300 |
Washer plain |
| 16 |
85221-82001-T01 |
Cover,reclining rh |
| 17 |
85721-82001-T01 |
Cover,reclining lh |
| 18 |
03242-05123-000 |
Screw, inner cover |
| 18 |
03241-0512A-000 |
SCREW |
| 19 |
85391-80290-000 |
GUIDE,HEADRESTRAINT,R |
| 19 |
85391-84C00-000 |
Guide rh, headrest |
| 20 |
85890-83000-000 |
GUIDE,HEADRESTRAINT,L |
| 20 |
85890-84C00-000 |
Guide lh, headrest |
| 21 |
86401-84C00-000 |
Headrestraint |
| 21 |
86401-84C00-T02 |
Headrestraint |
| 21 |
86401-84C10-T02 |
Headrestraint |
| 22 |
85291-85C00-000 |
Bush |
| 23 |
08313-B1108-300 |
Nut |
| 24 |
86720-83030-000 |
Sliding guide,outer rh |
| 25 |
86736-83000-000 |
KNOB,LOCK HANDLE |
| 26 |
86731-83000-000 |
ROD,WALKIN TENSION |
| 27 |
86732-83030-000 |
SPRING,WALKIN TENSION |
| 28 |
51789-00000-000 |
Sliding guide,inner lh |
| 29 |
51790-00000-000 |
Sliding guide,outer lh |
| 30 |
86710-83030-000 |
Sliding guide,inner rh |
| 31 |
08322-11085-000 |
Washer |
| 31 |
08322-0108B-000 |
WASHER |
| 31 |
08322-0108A-000 |
WASHER |
| 32 |
87470-83000-000 |
Cable assy,reclining |
| 34 |
08321-31063-000 |
Lock washer |
| 34 |
08321-0106A-000 |
WASHER,LOCK |
| 35 |
09160-84C00-000 |
Washer |
| 36 |
08010-00000-000 |
Clip |
| OEM |
Part name |
Category |
| 01107-08163-000 |
Bolt m8x1.25x16 |
Front seat (FRONT SEAT) |
| 01107-10403-000 |
Screw,lower |
Front seat (FRONT SEAT) |
| 01500-08163-000 |
Bolt |
Front seat (FRONT SEAT) |
| 01500-0816B-000 |
Bolt |
Front seat (FRONT SEAT) |
| 01500-10163-000 |
Bolt - Plug |
Front seat (FRONT SEAT) |
| 01500-1016B-000 |
Bolt - Plug, oil drain |
Front seat (FRONT SEAT) |
| 01500-1040A-000 |
Bolt |
Front seat (FRONT SEAT) |
| 03241-0512A-000 |
SCREW |
Front seat (FRONT SEAT) |
| 03242-05123-000 |
Screw, inner cover |
Front seat (FRONT SEAT) |
| 08010-00000-000 |
Clip |
Front seat (FRONT SEAT) |
| 08313-B1108-300 |
Nut |
Front seat (FRONT SEAT) |
| 08321-0106A-000 |
WASHER,LOCK |
Front seat (FRONT SEAT) |
| 08321-31063-000 |
Lock washer |
Front seat (FRONT SEAT) |
| 08321-A3110-300 |
Washer plain |
Front seat (FRONT SEAT) |
| 08321-B3108-300 |
Washer - 8.2x15.2x1.6 |
Front seat (FRONT SEAT) |
| 08322-0108A-000 |
WASHER |
Front seat (FRONT SEAT) |
| 08322-0108B-000 |
WASHER |
Front seat (FRONT SEAT) |
| 08322-11085-000 |
Washer |
Front seat (FRONT SEAT) |
| 09160-84C00-000 |
Washer |
Front seat (FRONT SEAT) |
| 51789-00000-000 |
Sliding guide,inner lh |
Front seat (FRONT SEAT) |
| 51790-00000-000 |
Sliding guide,outer lh |
Front seat (FRONT SEAT) |
| 85105-84C00-000 |
Cushion sub assy r/h |
Front seat (FRONT SEAT) |
| 85105-84C40-000 |
Cushion sub assy r/h |
Front seat (FRONT SEAT) |
| 85106-84C00-000 |
Cushion sub assy lh |
Front seat (FRONT SEAT) |
| 85106-84C40-000 |
Cushion sub assy lh |
Front seat (FRONT SEAT) |
| 85180-84C00-TX8 |
Cover assy,cushion rh |
Front seat (FRONT SEAT) |
| 85180-84C00-TX9 |
Cover assy,cushion rh |
Front seat (FRONT SEAT) |
| 85180-84C40-TX8 |
Cover assy,cushion rh |
Front seat (FRONT SEAT) |
| 85180-84C40-TX9 |
Cover assy,cushion rh |
Front seat (FRONT SEAT) |
| 85210-83001-T01 |
RECLINING ASSY,FR SEAT,R |
Front seat (FRONT SEAT) |
| 85221-82001-T01 |
Cover,reclining rh |
Front seat (FRONT SEAT) |
| 85291-85C00-000 |
Bush |
Front seat (FRONT SEAT) |
| 85305-84C00-000 |
Back sub assy rh |
Front seat (FRONT SEAT) |
| 85305-84C40-000 |
Back sub assy rh |
Front seat (FRONT SEAT) |
| 85306-84C00-000 |
Back sub assy lh |
Front seat (FRONT SEAT) |
| 85306-84C40-000 |
Back sub assy lh |
Front seat (FRONT SEAT) |
| 85380-84C00-TX8 |
Cover assy,back rh |
Front seat (FRONT SEAT) |
| 85380-84C00-TX9 |
Cover assy,back rh |
Front seat (FRONT SEAT) |
| 85380-84C40-TX8 |
Cover assy,back rh |
Front seat (FRONT SEAT) |
| 85380-84C40-TX9 |
Cover assy,back rh |
Front seat (FRONT SEAT) |
| 85391-80290-000 |
GUIDE,HEADRESTRAINT,R |
Front seat (FRONT SEAT) |
| 85391-84C00-000 |
Guide rh, headrest |
Front seat (FRONT SEAT) |
| 85680-84C00-TX8 |
Cover assy,cushion lh |
Front seat (FRONT SEAT) |
| 85680-84C00-TX9 |
Cover assy,cushion lh |
Front seat (FRONT SEAT) |
| 85680-84C40-TX8 |
Cover assy,cushion lh |
Front seat (FRONT SEAT) |
| 85680-84C40-TX9 |
Cover assy,cushion lh |
Front seat (FRONT SEAT) |
| 85710-80290-T01 |
RECLINING ASSY,FR SEAT,L |
Front seat (FRONT SEAT) |
| 85721-82001-T01 |
Cover,reclining lh |
Front seat (FRONT SEAT) |
| 85880-84C00-TX8 |
Cover assy,back lh |
Front seat (FRONT SEAT) |
| 85880-84C00-TX9 |
Cover assy,back lh |
Front seat (FRONT SEAT) |
| 85880-84C40-TX8 |
Cover assy,back lh |
Front seat (FRONT SEAT) |
| 85880-84C40-TX9 |
Cover assy,back lh |
Front seat (FRONT SEAT) |
| 85890-83000-000 |
GUIDE,HEADRESTRAINT,L |
Front seat (FRONT SEAT) |
| 85890-84C00-000 |
Guide lh, headrest |
Front seat (FRONT SEAT) |
| 86401-84C00-000 |
Headrestraint |
Front seat (FRONT SEAT) |
| 86401-84C00-T02 |
Headrestraint |
Front seat (FRONT SEAT) |
| 86401-84C10-T02 |
Headrestraint |
Front seat (FRONT SEAT) |
| 86710-83030-000 |
Sliding guide,inner rh |
Front seat (FRONT SEAT) |
| 86720-83030-000 |
Sliding guide,outer rh |
Front seat (FRONT SEAT) |
| 86731-83000-000 |
ROD,WALKIN TENSION |
Front seat (FRONT SEAT) |
| 86732-83030-000 |
SPRING,WALKIN TENSION |
Front seat (FRONT SEAT) |
| 86736-83000-000 |
KNOB,LOCK HANDLE |
Front seat (FRONT SEAT) |
| 87470-83000-000 |
Cable assy,reclining |
Front seat (FRONT SEAT) |
