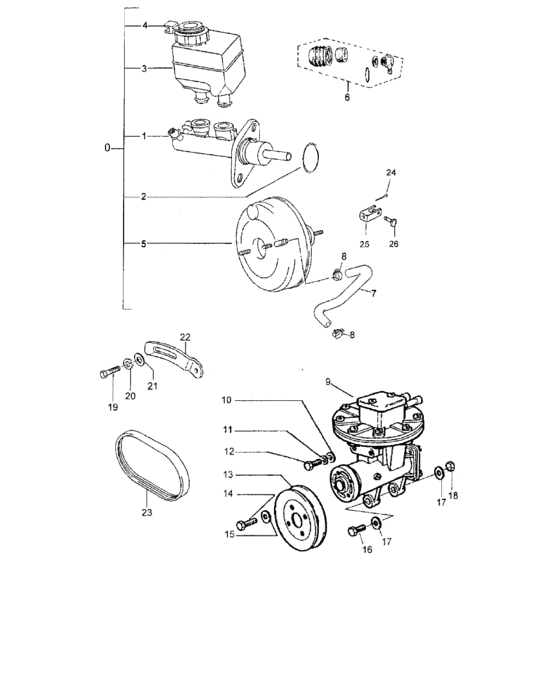

Brake master cylinder (TURBO DIESEL) 34
#OEMPart name
0 51000-A56B0-000 Main cylinder servo assy
1 00000-A0072-100 Main cylinder
2 00000-A0072-200 Seal gasket
3 00000-A0072-300 Tank repair set
4 00000-A0028-300 Plug
5 00000-A0098-300 Boster assy
6 00000-A0072-000 Repair set
7 51010-C8302-100 Vacuum hose
8 51911-85C00-000 Clamp, return hose
9 11029-86CA0-000 Vacuum pump
10 09160-86CA8-000 Plain washer
11 08321-86CA1-000 Spring washer
12 01570-86CA6-000 Screw h
13 45071-86CA0-000 Vacuum pum pulley
14 01500-06123-000 Bolt, front
14 01500-0612A-000 Bolt
15 08321-01063-000 Washer, lock
15 08321-0106A-000 WASHER,LOCK
16 00069-86CA0-000 Screw
17 08322-01083-000 WASHER
17 08322-0108B-000 WASHER
17 08322-0108A-000 WASHER
18 09159-86CA0-000 Connecting rod bolt
19 01500-08203-000 Bolt - Bolt, starter lever
19 01500-0820A-000 Bolt
20 08321-01083-000 Lock washer
20 08321-0108B-000 WASHER,LOCK
20 08321-0108A-000 WASHER,LOCK
21 09160-86CA0-000 Washer
22 17921-86CA0-000 Arm,vaccum pump
23 17521-86CA0-000 Belt, vaccum pump
24 51812-85C00-000 Pin
25 00000-A0116-400 Fork
26 51811-85C00-000 Cylinder pin
