Search › Model › SJ419D
SJ419D

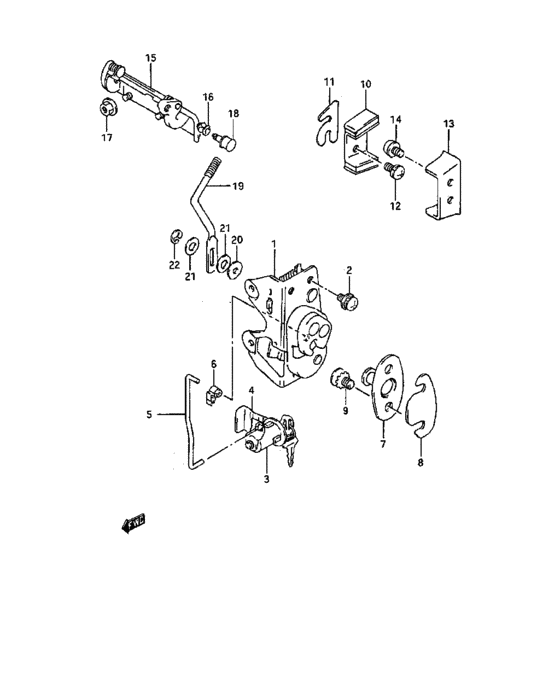

Back dr lock (V) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 82530-80101-000 | LOCK ASSY,BACK DR |
| 1 | 82530-80111-000 | LOCK ASSY,BACK DR |
| 2 | 02112-76123-000 | Screw |
| 2 | 02112-7612B-000 | SCREW |
| 3 | 82200-80851-000 | CYLINDER,DR LOCK |
| 4 | 89345-60B00-000 | CLIP,FUEL FILLER LID KEY LOCK |
| 5 | 82581-80100-000 | ROD,KEY CYLINDER CONTROL |
| 6 | 09209-05016-000 | PIN |
| 7 | 78110-79000-000 | Fermeture |
| 7 | 82660-80101-000 | STRIKER,BACK DOOR LATCH |
| 8 | 78199-79000-000 | SPACER |
| 9 | 09137-08006-000 | Screw - Screw (8x18) |
| 9 | 09137-08011-000 | SCREW(8X18) |
| 9 | 09137-08004-000 | SCREW(8X18) |
| 10 | 78251-68201-000 | MALE,BACK DR ST0P |
| 11 | 77891-63100-000 | SPACER |
| 12 | 02112-36163-000 | Screw |
| 12 | 02112-3616B-000 | SCREW |
| 12 | 02112-3616A-000 | SCREW |
| 13 | 78261-68201-000 | MALE,BACK DR ST0P |
| 15 | 82810-A8010-200 | Fermeture porte ar |
| 16 | 82891-A8010-000 | Arrest |
| 17 | 08316-20063-000 | Nut |
| 17 | 08316-2006A-000 | NUT |
| 18 | 77716-79000-000 | JOINT,ROD |
| 19 | 83231-80100-000 | ROD,LOCK OUTSIDE HANDLE |
| 20 | 09161-04008-000 | WASHER(4X12X2) |
| 21 | 09161-06008-000 | WASHER(6.5X13X1) |
| 22 | 08332-A1105-800 | Annrau |
| OEM | Part name | Category |
|---|---|---|
| 02112-36163-000 | Screw | Back dr lock (V) |
| 02112-3616A-000 | SCREW | Back dr lock (V) |
| 02112-3616B-000 | SCREW | Back dr lock (V) |
| 02112-76123-000 | Screw | Back dr lock (V) |
| 02112-7612B-000 | SCREW | Back dr lock (V) |
| 08316-20063-000 | Nut | Back dr lock (V) |
| 08316-2006A-000 | NUT | Back dr lock (V) |
| 08332-A1105-800 | Annrau | Back dr lock (V) |
| 09137-08004-000 | SCREW(8X18) | Back dr lock (V) |
| 09137-08006-000 | Screw - Screw (8x18) | Back dr lock (V) |
| 09137-08011-000 | SCREW(8X18) | Back dr lock (V) |
| 09161-04008-000 | WASHER(4X12X2) | Back dr lock (V) |
| 09161-06008-000 | WASHER(6.5X13X1) | Back dr lock (V) |
| 09209-05016-000 | PIN | Back dr lock (V) |
| 77716-79000-000 | JOINT,ROD | Back dr lock (V) |
| 77891-63100-000 | SPACER | Back dr lock (V) |
| 78110-79000-000 | Fermeture | Back dr lock (V) |
| 78199-79000-000 | SPACER | Back dr lock (V) |
| 78251-68201-000 | MALE,BACK DR ST0P | Back dr lock (V) |
| 78261-68201-000 | MALE,BACK DR ST0P | Back dr lock (V) |
| 82200-80851-000 | CYLINDER,DR LOCK | Back dr lock (V) |
| 82530-80101-000 | LOCK ASSY,BACK DR | Back dr lock (V) |
| 82530-80111-000 | LOCK ASSY,BACK DR | Back dr lock (V) |
| 82581-80100-000 | ROD,KEY CYLINDER CONTROL | Back dr lock (V) |
| 82660-80101-000 | STRIKER,BACK DOOR LATCH | Back dr lock (V) |
| 82810-A8010-200 | Fermeture porte ar | Back dr lock (V) |
| 82891-A8010-000 | Arrest | Back dr lock (V) |
| 83231-80100-000 | ROD,LOCK OUTSIDE HANDLE | Back dr lock (V) |
| 89345-60B00-000 | CLIP,FUEL FILLER LID KEY LOCK | Back dr lock (V) |
