SJ413Q

Suzuki SAMURAI · 4,033 parts · 128 categories
SJ413Q ×

← Back to categories

4,033 items

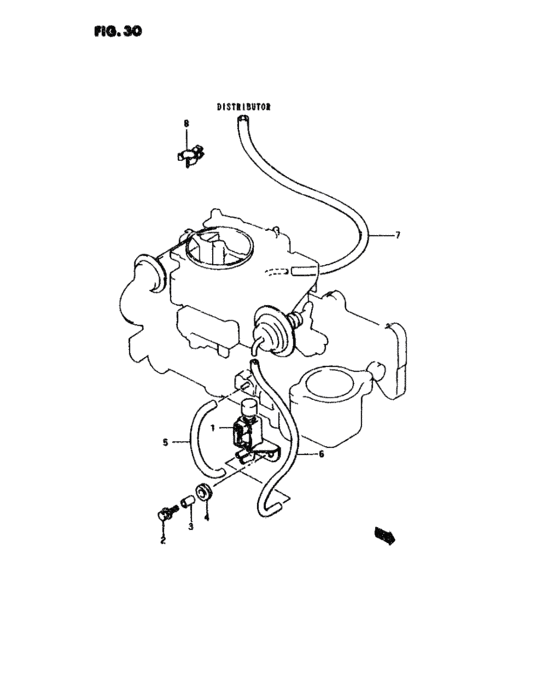

Emission control (EMISSION CONTROL) 74
#OEMPart name
1 18550-82021-000 VALVE ASSY,3WAY SOLENOID
1 18111-80C00-000 VALVE,EGR
2 09116-06115-000 BOLT(6X20) - Bolt (6x20)
2 09116-06056-000 Bolt (6*10) - Bolt (6x20)
2 18529-60A00-000 GASKET,EGR VALVE
3 09180-06106-000 SPACER(6.8X10X7)
3 01550-06453-000 Bolt - Bolt (6x45)
3 01550-0645A-000 Bolt
4 09308-10004-000 GROMMET
4 18112-60B00-000 MODULATOR ASSY,EGR
5 09358-35754-600 ホース,3.5X7.5X600
5 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
5 09355-35006-601 Hose(3.5X7.5X601)
5 13814-82000-000 CLAMP,MODULATOR
6 13817-82000-000 CUSHION,MODULATOR CLAMP
7 13815-82000-000 WASHER,MODULATOR CLAMP
8 09408-00060-000 CLAMP
8 02142-06163-000 Screw
8 02142-0616A-000 SCREW
9 18123-80400-000 VALVE,BIMETAL VACUUM SWITCHING
9 18412-80C01-000 ブラケット,モジュレータ
10 18117-61A00-000 VALVE,VACUUM SWITCHING
11 09136-06086-000 スクリュ,6X14
11 09136-06133-000 BOLT(6X16) - Screw
12 18115-83010-000 JET,50CC
14 18417-80C01-000 BRACKET,VSV
15 01550-10163-000 Bolt
15 01550-1016B-000 Bolt - Plug, oil gallery
15 01550-1016A-000 Bolt - Plug, oil gallery
16 18471-80C00-000 Hose,egr to modulator
17 27965-85400-000 FILTER,VSV - Filter assy, vsv
18 18590-80C20-000 SENSOR,PRESSURE
18 18590-80C30-000 SENSOR,PRESSURE
19 01570-06123-000 Bolt
19 01570-0612B-000 Bolt - Bolt, upper
19 01570-0612A-000 Bolt
19 02142-05083-000 Screw
19 02142-0508A-000 SCREW - Screw, cap
20 18417-83C20-000 Bracket,vsv
21 09308-16003-000 GROMMET
24 09401-06405-000 CLIP
31 09408-00116-000 CLIP
32 09408-00035-000 CLIP - Clamp
34 18560-80C00-000 CANISTER
35 01500-08203-000 Bolt - Bolt, starter lever
35 01500-0820A-000 Bolt
36 09160-08085-000 Washer - Washer (8.2x26x1.6)
36 09160-08151-000 WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6)
37 09180-08171-000 Spacer
37 09180-08185-000 SPACER(8.5X12X6)
38 09320-12011-000 CUSHION
38 09320-12090-000 Cushion(11.8X25X7.5)
39 09408-00111-000 CLAMP
40 09358-35754-00B ホース,3.5X7.5X2000
40 09355-35754-00B HOSE(3.5X7.5X2000)
40 09355-35006-00B Hose(3.5X7.5X2000)
42 09367-04008-000 2 WAY
43 09403-09315-000 CLAMP
44 09408-00033-000 CLAMP
45 18122-80C00-000 バルブ,BVS
45 18122-80C01-000 VALVE,BVS
46 18117-80C00-000 VALVE,ISC
47 09354-70133-600 Hose (7x13x600)
47 44421-12FR0-000 HOSE
47 09401-11415-000 CLIP
47 09355-70125-600 HOSE(7X12X600) - Hose, fuel (pump to separator)
47 09401-11407-000 CLIP
48 09354-54115-600 ホース,5.4X11.4X600
48 09355-54115-600 HOSE(5.4X11.4X600) - Hose, vacuum
48 09359-54111-600 HOSE(5.4X11.4X600) - Hose, canister & carb
50 09367-08005-000 3 WAY - 3 way (fltr to pump)
50 18342-80C10-000 HOSE,ISC 3WAY
51 09251-07003-000 CAP(OD:11.5)
55 09408-00100-000 CLIP
