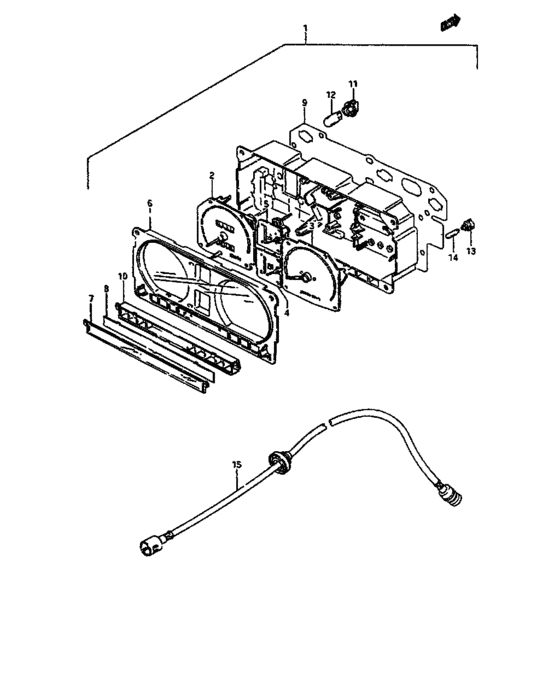

Speedometer (JX)
18
| # | OEM | Part name |
|---|
| 1 |
34100-80400-000 |
Speedometer assy |
| 1 |
34100-80730-000 |
Speedometer assy |
| 2 |
34120-80401-000 |
Body assy,speedometer |
| 3 |
34220-80331-000 |
Body assy,tachometer |
| 4 |
34320-80331-000 |
BODY ASSY,FUEL METER |
| 5 |
34420-80331-000 |
Body assy,temp meter |
| 6 |
34112-80330-000 |
Plate,window |
| 7 |
34113-80330-000 |
GLASS,FR |
| 8 |
34181-80400-000 |
Lens |
| 9 |
34152-80400-000 |
Plate, print |
| 10 |
34153-80330-000 |
COVER BULB |
| 11 |
34173-64010-000 |
ソケット |
| 11 |
34172-50E10-000 |
SOCKET |
| 12 |
09471-12028-000 |
BULB(12V3.4W,T10) |
| 13 |
34175-78900-000 |
SOCKET |
| 14 |
09471-12055-000 |
BULB(14V1.4W,T5) |
| 15 |
34910-80020-000 |
Cable, speedometer |
| 15 |
34910-80C21-000 |
CABLE ASSY,SPEEDOMETER |
| OEM |
Part name |
Category |
| 09471-12028-000 |
BULB(12V3.4W,T10) |
Speedometer (JX) |
| 09471-12055-000 |
BULB(14V1.4W,T5) |
Speedometer (JX) |
| 34100-80400-000 |
Speedometer assy |
Speedometer (JX) |
| 34100-80730-000 |
Speedometer assy |
Speedometer (JX) |
| 34112-80330-000 |
Plate,window |
Speedometer (JX) |
| 34113-80330-000 |
GLASS,FR |
Speedometer (JX) |
| 34120-80401-000 |
Body assy,speedometer |
Speedometer (JX) |
| 34152-80400-000 |
Plate, print |
Speedometer (JX) |
| 34153-80330-000 |
COVER BULB |
Speedometer (JX) |
| 34172-50E10-000 |
SOCKET |
Speedometer (JX) |
| 34173-64010-000 |
ソケット |
Speedometer (JX) |
| 34175-78900-000 |
SOCKET |
Speedometer (JX) |
| 34181-80400-000 |
Lens |
Speedometer (JX) |
| 34220-80331-000 |
Body assy,tachometer |
Speedometer (JX) |
| 34320-80331-000 |
BODY ASSY,FUEL METER |
Speedometer (JX) |
| 34420-80331-000 |
Body assy,temp meter |
Speedometer (JX) |
| 34910-80020-000 |
Cable, speedometer |
Speedometer (JX) |
| 34910-80C21-000 |
CABLE ASSY,SPEEDOMETER |
Speedometer (JX) |
