Search › Model › SJ413P

SJ413P

Suzuki SAMURAI · 3,928 parts · 120 categories

3,928 items

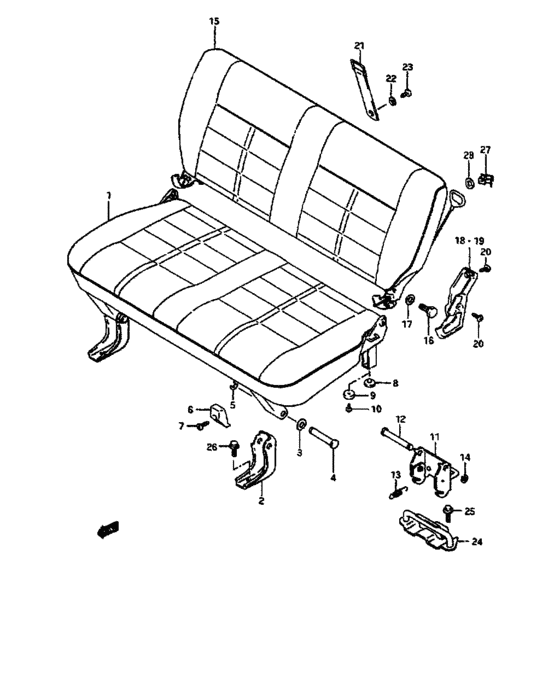

Rear seat (O, Q, V:JX) 68

#	OEM	Part name
1	87101-83020-7GT	Cushion assy, rear seat
1	87101-83021-8FD	Cushion assy, seat
1	87180-83020-8FD	Cover, cushion
1	87101-83021-9DB	Cushion assy, seat
1	87180-83020-9DB	Cover, cushion
1	87101-83021-9TN	Cushion assy, rear seat
1	87101-83121-7HU	Cushion assy, rear seat
1	87101-83121-8FH	Cushion assy, seat
1	87180-83120-8FH	Cover, cushion
1	87101-83121-9CZ	Cushion assy, seat
1	87180-83120-9CZ	Cover, cushion
2	87271-83000-000	MALE, REAR SEAT HINGE
3	09164-07001-000	WASHER
4	09208-06001-000	ピン
4	87259-56B10-000	PIN,REAR SEAT HINGE
4	09148-06008-000	NUT - Nut, adjuster knob
4	87259-83000-000	ピン,リヤシートヒンジ
4	09148-06005-000	Nut seat moldin
5	08332-11046-000	E ring
5	08332-1104B-000	E RING
5	08332-1104A-000	E RING
6	87195-83000-000	STOPPER,REAR SEAT
7	03141-05206-000	Screw 5x20
7	03141-0520B-000	SCREW
8	87295-80200-000	CUSHION,REAR SEAT REAR LEG
9	09320-06015-000	CUSHION
10	03242-05129-000	Screw
10	03241-0512A-000	SCREW
11	87250-80270-000	Stopper,seat belt
12	84366-79450-000	PIN,SEAT BELT ANCHOR STOPPER
13	09443-14015-000	SPRING
14	08322-11086-000	Washer
14	08322-0108B-000	WASHER
14	08322-0108A-000	WASHER
15	87301-83000-7GT	Back assy, rear seat
15	87301-83000-8FD	Back assy, seat
15	87380-83000-8FD	Cover, back
15	87301-83000-9DB	Back assy, seat
15	87380-83000-9DB	Cover, back
15	87301-83000-9TN	Back assy, rear seat
15	87301-83100-7HU	Back assy, seat - Gray
15	87301-83100-8FH	Back assy, seat
15	87380-83100-8FH	Cover, back
15	87301-83100-9CZ	Back assy, seat
15	87380-83100-9CZ	Cover, back
16	09111-08044-000	BOLT(8X16)
17	08321-21107-000	Lock washer
17	08321-01107-000	WASHER,LOCK - Lock washer
18	87229-83000-000	Cover, hinge outer rh
18	87229-83000-5PK	COVER,RR SEAT BACK HINGE,R
19	87629-83000-000	COVER,RR SEAT BACK HINGE,L
19	87629-83000-5PK	COVER,RR SEAT BACK HNG,L
20	03241-05085-000	New Genuine Part
20	03241-0508A-000	SCREW
21	87293-83000-000	Band, seat stopper
22	87327-83000-000	COLLAR,SEAT STOPPER BAND
23	03241-05108-000	New Genuine Part
23	03241-0510A-000	SCREW
23	03242-0510B-000	SCREW
24	87830-80270-000	STRIKER,SEAT BELT STOPPER
25	01517-10256-000	Boulon
25	01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l
25	01550-1025A-000	Bolt - Bolt, drive gear
26	01517-08126-000	Bolt, front
26	01550-0812B-000	Bolt - Plug, drain
26	01550-0812A-000	Bolt
27	09403-06403-000	CLAMP
28	87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP

OEM	Part name	Category
01517-08126-000	Bolt, front	Rear seat (O, Q, V:JX)
01517-10256-000	Boulon	Rear seat (O, Q, V:JX)
01550-0812A-000	Bolt	Rear seat (O, Q, V:JX)
01550-0812B-000	Bolt - Plug, drain	Rear seat (O, Q, V:JX)
01550-1025A-000	Bolt - Bolt, drive gear	Rear seat (O, Q, V:JX)
01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l	Rear seat (O, Q, V:JX)
03141-05206-000	Screw 5x20	Rear seat (O, Q, V:JX)
03141-0520B-000	SCREW	Rear seat (O, Q, V:JX)
03241-05085-000	New Genuine Part	Rear seat (O, Q, V:JX)
03241-0508A-000	SCREW	Rear seat (O, Q, V:JX)
03241-05108-000	New Genuine Part	Rear seat (O, Q, V:JX)
03241-0510A-000	SCREW	Rear seat (O, Q, V:JX)
03241-0512A-000	SCREW	Rear seat (O, Q, V:JX)
03242-0510B-000	SCREW	Rear seat (O, Q, V:JX)
03242-05129-000	Screw	Rear seat (O, Q, V:JX)
08321-01107-000	WASHER,LOCK - Lock washer	Rear seat (O, Q, V:JX)
08321-21107-000	Lock washer	Rear seat (O, Q, V:JX)
08322-0108A-000	WASHER	Rear seat (O, Q, V:JX)
08322-0108B-000	WASHER	Rear seat (O, Q, V:JX)
08322-11086-000	Washer	Rear seat (O, Q, V:JX)
08332-11046-000	E ring	Rear seat (O, Q, V:JX)
08332-1104A-000	E RING	Rear seat (O, Q, V:JX)
08332-1104B-000	E RING	Rear seat (O, Q, V:JX)
09111-08044-000	BOLT(8X16)	Rear seat (O, Q, V:JX)
09148-06005-000	Nut seat moldin	Rear seat (O, Q, V:JX)
09148-06008-000	NUT - Nut, adjuster knob	Rear seat (O, Q, V:JX)
09164-07001-000	WASHER	Rear seat (O, Q, V:JX)
09208-06001-000	ピン	Rear seat (O, Q, V:JX)
09320-06015-000	CUSHION	Rear seat (O, Q, V:JX)
09403-06403-000	CLAMP	Rear seat (O, Q, V:JX)
09443-14015-000	SPRING	Rear seat (O, Q, V:JX)
84366-79450-000	PIN,SEAT BELT ANCHOR STOPPER	Rear seat (O, Q, V:JX)
87101-83020-7GT	Cushion assy, rear seat	Rear seat (O, Q, V:JX)
87101-83021-8FD	Cushion assy, seat	Rear seat (O, Q, V:JX)
87101-83021-9DB	Cushion assy, seat	Rear seat (O, Q, V:JX)
87101-83021-9TN	Cushion assy, rear seat	Rear seat (O, Q, V:JX)
87101-83121-7HU	Cushion assy, rear seat	Rear seat (O, Q, V:JX)
87101-83121-8FH	Cushion assy, seat	Rear seat (O, Q, V:JX)
87101-83121-9CZ	Cushion assy, seat	Rear seat (O, Q, V:JX)
87180-83020-8FD	Cover, cushion	Rear seat (O, Q, V:JX)
87180-83020-9DB	Cover, cushion	Rear seat (O, Q, V:JX)
87180-83120-8FH	Cover, cushion	Rear seat (O, Q, V:JX)
87180-83120-9CZ	Cover, cushion	Rear seat (O, Q, V:JX)
87195-83000-000	STOPPER,REAR SEAT	Rear seat (O, Q, V:JX)
87229-83000-000	Cover, hinge outer rh	Rear seat (O, Q, V:JX)
87229-83000-5PK	COVER,RR SEAT BACK HINGE,R	Rear seat (O, Q, V:JX)
87250-80270-000	Stopper,seat belt	Rear seat (O, Q, V:JX)
87259-56B10-000	PIN,REAR SEAT HINGE	Rear seat (O, Q, V:JX)
87259-83000-000	ピン,リヤシートヒンジ	Rear seat (O, Q, V:JX)
87271-83000-000	MALE, REAR SEAT HINGE	Rear seat (O, Q, V:JX)
87293-83000-000	Band, seat stopper	Rear seat (O, Q, V:JX)
87295-80200-000	CUSHION,REAR SEAT REAR LEG	Rear seat (O, Q, V:JX)
87301-83000-7GT	Back assy, rear seat	Rear seat (O, Q, V:JX)
87301-83000-8FD	Back assy, seat	Rear seat (O, Q, V:JX)
87301-83000-9DB	Back assy, seat	Rear seat (O, Q, V:JX)
87301-83000-9TN	Back assy, rear seat	Rear seat (O, Q, V:JX)
87301-83100-7HU	Back assy, seat - Gray	Rear seat (O, Q, V:JX)
87301-83100-8FH	Back assy, seat	Rear seat (O, Q, V:JX)
87301-83100-9CZ	Back assy, seat	Rear seat (O, Q, V:JX)
87327-83000-000	COLLAR,SEAT STOPPER BAND	Rear seat (O, Q, V:JX)
87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP	Rear seat (O, Q, V:JX)
87380-83000-8FD	Cover, back	Rear seat (O, Q, V:JX)
87380-83000-9DB	Cover, back	Rear seat (O, Q, V:JX)
87380-83100-8FH	Cover, back	Rear seat (O, Q, V:JX)
87380-83100-9CZ	Cover, back	Rear seat (O, Q, V:JX)
87629-83000-000	COVER,RR SEAT BACK HINGE,L	Rear seat (O, Q, V:JX)
87629-83000-5PK	COVER,RR SEAT BACK HNG,L	Rear seat (O, Q, V:JX)
87830-80270-000	STRIKER,SEAT BELT STOPPER	Rear seat (O, Q, V:JX)
