Search › Model › SJ413P

SJ413P

Suzuki SAMURAI · 3,928 parts · 120 categories

3,928 items

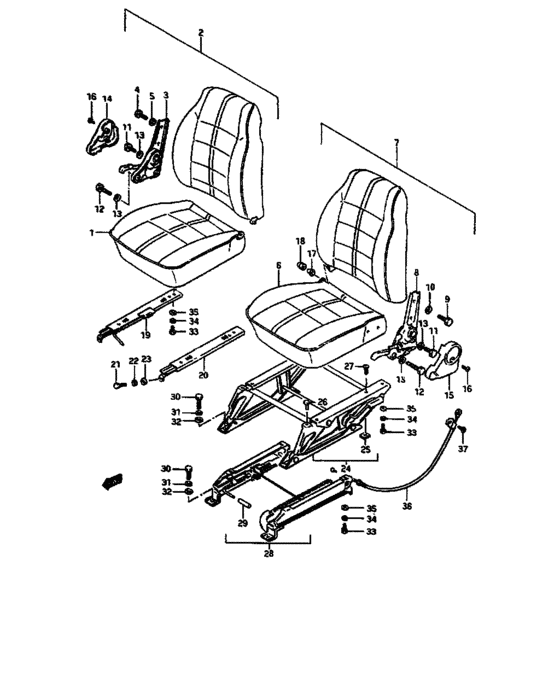

Front seat (O, Q, W, V:JA) 79

#	OEM	Part name
1	85101-80610-7GP	Cushion assy, front rh
1	85101-80610-8HC	Cushion assy, front rh
1	85101-80610-9KN	Cushion assy, front rh
1	85101-80590-7LT	Cushion assy, front rh
1	85101-80590-8HH	Cushion assy, front rh
1	85101-80590-9KP	Cushion assy, front rh
2	85301-83010-7GP	Back assy, front rh
2	85301-83050-8HC	Back assy, front rh
2	85301-83050-9KN	Back assy, front rh
2	85301-83110-7LT	Back assy, front rh
2	85301-83230-8HH	Back assy, front rh
2	85301-83230-9KP	Back assy, front rh
3	85210-80302-000	Reclining assy, rh
3	85210-80290-000	Reclining assy, rh
3	85210-80290-5PK	RECLINING,FR SEAT,R
4	01107-08166-000	Bolt m8x1.25x16
4	01500-0816B-000	Bolt
5	08321-21086-000	Wsherlck8.2x15.2x1.6
5	08321-0108B-000	WASHER,LOCK
5	08321-0108A-000	WASHER,LOCK
6	85102-80610-7GP	Cushion assy, front lh
6	85102-80610-8HC	Cushion assy, front lh
6	85102-80610-9KN	Cushion assy, front lh
6	85102-80590-7LT	Cushion assy, front lh
6	85102-80590-8HH	Cushion assy, front lh
6	85102-80590-9KP	Cushion assy, front lh
7	85302-83010-7GP	Back assy, front lh
7	85302-83031-8HC	Back assy, front lh
7	85302-83031-9KN	Back assy, front lh
7	85302-83110-7LT	Back assy, front lh
7	85302-83211-8HH	Back assy, front lh
7	85302-83211-9KP	Back assy, front lh
8	85710-80302-000	Reclining assy, lh
8	85710-83001-000	Reclining assy, lh
8	85710-83001-5PK	RECLINING,FR SEAT,L
11	01107-10166-000	New Genuine Part
11	01500-1016B-000	Bolt - Plug, oil drain
12	01107-10406-000	Bolt
12	01500-1040A-000	Bolt
13	08321-21106-000	Lock washer
13	08321-0110B-000	WASHER,LOCK - Washer, knuckle end
13	08321-0110A-000	WASHER,LOCK
14	85221-80291-281	Cover,reclining,r
14	85221-82001-281	Cover, reclining, rh
14	85221-82001-5PK	COVER,RECLINING,R
15	85721-80291-281	Cover, reclining lh
15	85721-82001-281	Cover, reclining, lh
15	85721-82001-5PK	COVER,RECLINING,L
16	03241-05125-000	Screw
16	03241-0512A-000	SCREW
17	85291-80290-000	BUSH,SEAT BACK FIXING
18	08313-21085-000	Nut
18	08313-2008B-000	NUT
18	08313-2008A-000	NUT
19	86601-80134-000	RAIL ASSY,FR SEAT SLIDER,R
20	86602-80133-000	RAIL ASSY,FR SEAT SLIDE,L
21	01107-06166-000	Bolt
21	01500-0616A-000	Bolt
22	08321-21066-000	Lock washer
22	08321-0106A-000	WASHER,LOCK
23	08322-21066-000	Washer
23	08322-0106B-000	WASHER
24	86701-80300-000	Wak in assy
25	86728-80100-000	Stopper, rear leg
26	09321-06008-000	CUSHION - Cap, fuel tank upper rear
27	03241-05108-000	New Genuine Part
27	03241-0510A-000	SCREW
27	03242-0510B-000	SCREW
28	86901-83001-000	Wak in assy, lh
28	86901-83002-000	WALKIN ASSY,FR SEAT,L
28	86901-83030-000	Wak in assy, lh
28	86901-83031-000	WALKIN ASSY,FR SEAT,L
29	86736-83000-000	KNOB,LOCK HANDLE
35	08322-11086-000	Washer
35	08322-0108B-000	WASHER
35	08322-0108A-000	WASHER
36	87570-83000-000	WIRE ASSY,WALKIN
37	03111-05106-000	Screw
37	03111-0510A-000	SCREW

OEM	Part name	Category
01107-06166-000	Bolt	Front seat (O, Q, W, V:JA)
01107-08166-000	Bolt m8x1.25x16	Front seat (O, Q, W, V:JA)
01107-10166-000	New Genuine Part	Front seat (O, Q, W, V:JA)
01107-10406-000	Bolt	Front seat (O, Q, W, V:JA)
01500-0616A-000	Bolt	Front seat (O, Q, W, V:JA)
01500-0816B-000	Bolt	Front seat (O, Q, W, V:JA)
01500-1016B-000	Bolt - Plug, oil drain	Front seat (O, Q, W, V:JA)
01500-1040A-000	Bolt	Front seat (O, Q, W, V:JA)
03111-05106-000	Screw	Front seat (O, Q, W, V:JA)
03111-0510A-000	SCREW	Front seat (O, Q, W, V:JA)
03241-05108-000	New Genuine Part	Front seat (O, Q, W, V:JA)
03241-0510A-000	SCREW	Front seat (O, Q, W, V:JA)
03241-05125-000	Screw	Front seat (O, Q, W, V:JA)
03241-0512A-000	SCREW	Front seat (O, Q, W, V:JA)
03242-0510B-000	SCREW	Front seat (O, Q, W, V:JA)
08313-2008A-000	NUT	Front seat (O, Q, W, V:JA)
08313-2008B-000	NUT	Front seat (O, Q, W, V:JA)
08313-21085-000	Nut	Front seat (O, Q, W, V:JA)
08321-0106A-000	WASHER,LOCK	Front seat (O, Q, W, V:JA)
08321-0108A-000	WASHER,LOCK	Front seat (O, Q, W, V:JA)
08321-0108B-000	WASHER,LOCK	Front seat (O, Q, W, V:JA)
08321-0110A-000	WASHER,LOCK	Front seat (O, Q, W, V:JA)
08321-0110B-000	WASHER,LOCK - Washer, knuckle end	Front seat (O, Q, W, V:JA)
08321-21066-000	Lock washer	Front seat (O, Q, W, V:JA)
08321-21086-000	Wsherlck8.2x15.2x1.6	Front seat (O, Q, W, V:JA)
08321-21106-000	Lock washer	Front seat (O, Q, W, V:JA)
08322-0106B-000	WASHER	Front seat (O, Q, W, V:JA)
08322-0108A-000	WASHER	Front seat (O, Q, W, V:JA)
08322-0108B-000	WASHER	Front seat (O, Q, W, V:JA)
08322-11086-000	Washer	Front seat (O, Q, W, V:JA)
08322-21066-000	Washer	Front seat (O, Q, W, V:JA)
09321-06008-000	CUSHION - Cap, fuel tank upper rear	Front seat (O, Q, W, V:JA)
85101-80590-7LT	Cushion assy, front rh	Front seat (O, Q, W, V:JA)
85101-80590-8HH	Cushion assy, front rh	Front seat (O, Q, W, V:JA)
85101-80590-9KP	Cushion assy, front rh	Front seat (O, Q, W, V:JA)
85101-80610-7GP	Cushion assy, front rh	Front seat (O, Q, W, V:JA)
85101-80610-8HC	Cushion assy, front rh	Front seat (O, Q, W, V:JA)
85101-80610-9KN	Cushion assy, front rh	Front seat (O, Q, W, V:JA)
85102-80590-7LT	Cushion assy, front lh	Front seat (O, Q, W, V:JA)
85102-80590-8HH	Cushion assy, front lh	Front seat (O, Q, W, V:JA)
85102-80590-9KP	Cushion assy, front lh	Front seat (O, Q, W, V:JA)
85102-80610-7GP	Cushion assy, front lh	Front seat (O, Q, W, V:JA)
85102-80610-8HC	Cushion assy, front lh	Front seat (O, Q, W, V:JA)
85102-80610-9KN	Cushion assy, front lh	Front seat (O, Q, W, V:JA)
85210-80290-000	Reclining assy, rh	Front seat (O, Q, W, V:JA)
85210-80290-5PK	RECLINING,FR SEAT,R	Front seat (O, Q, W, V:JA)
85210-80302-000	Reclining assy, rh	Front seat (O, Q, W, V:JA)
85221-80291-281	Cover,reclining,r	Front seat (O, Q, W, V:JA)
85221-82001-281	Cover, reclining, rh	Front seat (O, Q, W, V:JA)
85221-82001-5PK	COVER,RECLINING,R	Front seat (O, Q, W, V:JA)
85291-80290-000	BUSH,SEAT BACK FIXING	Front seat (O, Q, W, V:JA)
85301-83010-7GP	Back assy, front rh	Front seat (O, Q, W, V:JA)
85301-83050-8HC	Back assy, front rh	Front seat (O, Q, W, V:JA)
85301-83050-9KN	Back assy, front rh	Front seat (O, Q, W, V:JA)
85301-83110-7LT	Back assy, front rh	Front seat (O, Q, W, V:JA)
85301-83230-8HH	Back assy, front rh	Front seat (O, Q, W, V:JA)
85301-83230-9KP	Back assy, front rh	Front seat (O, Q, W, V:JA)
85302-83010-7GP	Back assy, front lh	Front seat (O, Q, W, V:JA)
85302-83031-8HC	Back assy, front lh	Front seat (O, Q, W, V:JA)
85302-83031-9KN	Back assy, front lh	Front seat (O, Q, W, V:JA)
85302-83110-7LT	Back assy, front lh	Front seat (O, Q, W, V:JA)
85302-83211-8HH	Back assy, front lh	Front seat (O, Q, W, V:JA)
85302-83211-9KP	Back assy, front lh	Front seat (O, Q, W, V:JA)
85710-80302-000	Reclining assy, lh	Front seat (O, Q, W, V:JA)
85710-83001-000	Reclining assy, lh	Front seat (O, Q, W, V:JA)
85710-83001-5PK	RECLINING,FR SEAT,L	Front seat (O, Q, W, V:JA)
85721-80291-281	Cover, reclining lh	Front seat (O, Q, W, V:JA)
85721-82001-281	Cover, reclining, lh	Front seat (O, Q, W, V:JA)
85721-82001-5PK	COVER,RECLINING,L	Front seat (O, Q, W, V:JA)
86601-80134-000	RAIL ASSY,FR SEAT SLIDER,R	Front seat (O, Q, W, V:JA)
86602-80133-000	RAIL ASSY,FR SEAT SLIDE,L	Front seat (O, Q, W, V:JA)
86701-80300-000	Wak in assy	Front seat (O, Q, W, V:JA)
86728-80100-000	Stopper, rear leg	Front seat (O, Q, W, V:JA)
86736-83000-000	KNOB,LOCK HANDLE	Front seat (O, Q, W, V:JA)
86901-83001-000	Wak in assy, lh	Front seat (O, Q, W, V:JA)
86901-83002-000	WALKIN ASSY,FR SEAT,L	Front seat (O, Q, W, V:JA)
86901-83030-000	Wak in assy, lh	Front seat (O, Q, W, V:JA)
86901-83031-000	WALKIN ASSY,FR SEAT,L	Front seat (O, Q, W, V:JA)
87570-83000-000	WIRE ASSY,WALKIN	Front seat (O, Q, W, V:JA)
