SJ413P

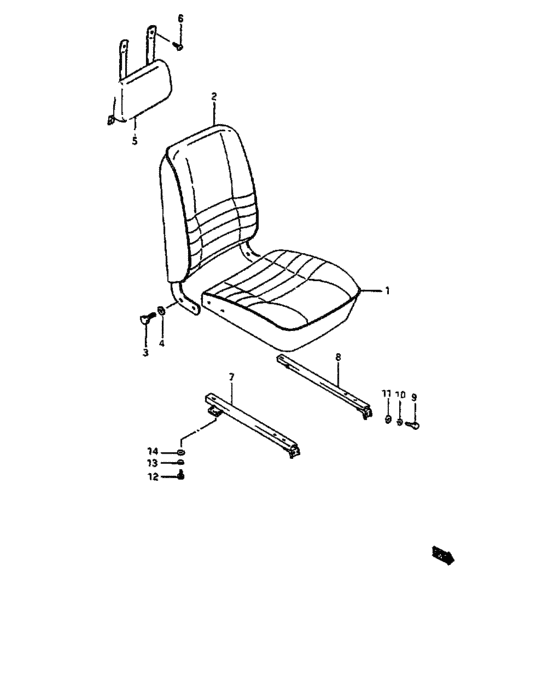

Front seat (K, P) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 85101-80530-7GP | Cushion assy, front seat |
| 1 | 85101-80530-8FC | Cushion assy, front seat |
| 1 | 85101-80530-9KN | Cushion assy, front seat |
| 2 | 85301-80530-7GP | Back assy, front seat |
| 2 | 85301-80530-8FC | Back assy, front seat |
| 2 | 85301-80530-9KN | Back assy, front seat |
| 3 | 01107-08167-000 | Bolt |
| 3 | 01500-0816B-000 | Bolt |
| 4 | 08321-21088-000 | Lock washer |
| 4 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 5 | 86401-80201-58Z | Head restraint assy |
| 5 | 86401-80201-4GJ | Head restraint assy |
| 6 | 02142-06088-000 | Screw 6 x 8 |
| 6 | 02142-06087-000 | SCREW |
| 7 | 86620-80200-000 | Rail, left seat rh |
| 8 | 86820-80200-000 | Rail, left seat lh |
| 9 | 01107-06166-000 | Bolt |
| 9 | 01500-0616A-000 | Bolt |
| 10 | 08321-21066-000 | Lock washer |
| 10 | 08321-0106A-000 | WASHER,LOCK |
| 11 | 08322-21066-000 | Washer |
| 11 | 08322-0106B-000 | WASHER |
| 12 | 01107-08166-000 | Bolt m8x1.25x16 |
| 13 | 08321-21086-000 | Wsherlck8.2x15.2x1.6 |
| 13 | 08321-0108B-000 | WASHER,LOCK |
| 13 | 08321-0108A-000 | WASHER,LOCK |
| 14 | 08322-11086-000 | Washer |
| 14 | 08322-0108B-000 | WASHER |
| 14 | 08322-0108A-000 | WASHER |
| OEM | Part name | Category |
|---|---|---|
| 01107-06166-000 | Bolt | Front seat (K, P) |
| 01107-08166-000 | Bolt m8x1.25x16 | Front seat (K, P) |
| 01107-08167-000 | Bolt | Front seat (K, P) |
| 01500-0616A-000 | Bolt | Front seat (K, P) |
| 01500-0816B-000 | Bolt | Front seat (K, P) |
| 02142-06087-000 | SCREW | Front seat (K, P) |
| 02142-06088-000 | Screw 6 x 8 | Front seat (K, P) |
| 08321-0106A-000 | WASHER,LOCK | Front seat (K, P) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Front seat (K, P) |
| 08321-0108A-000 | WASHER,LOCK | Front seat (K, P) |
| 08321-0108B-000 | WASHER,LOCK | Front seat (K, P) |
| 08321-21066-000 | Lock washer | Front seat (K, P) |
| 08321-21086-000 | Wsherlck8.2x15.2x1.6 | Front seat (K, P) |
| 08321-21088-000 | Lock washer | Front seat (K, P) |
| 08322-0106B-000 | WASHER | Front seat (K, P) |
| 08322-0108A-000 | WASHER | Front seat (K, P) |
| 08322-0108B-000 | WASHER | Front seat (K, P) |
| 08322-11086-000 | Washer | Front seat (K, P) |
| 08322-21066-000 | Washer | Front seat (K, P) |
| 85101-80530-7GP | Cushion assy, front seat | Front seat (K, P) |
| 85101-80530-8FC | Cushion assy, front seat | Front seat (K, P) |
| 85101-80530-9KN | Cushion assy, front seat | Front seat (K, P) |
| 85301-80530-7GP | Back assy, front seat | Front seat (K, P) |
| 85301-80530-8FC | Back assy, front seat | Front seat (K, P) |
| 85301-80530-9KN | Back assy, front seat | Front seat (K, P) |
| 86401-80201-4GJ | Head restraint assy | Front seat (K, P) |
| 86401-80201-58Z | Head restraint assy | Front seat (K, P) |
| 86620-80200-000 | Rail, left seat rh | Front seat (K, P) |
| 86820-80200-000 | Rail, left seat lh | Front seat (K, P) |
