Search › Model › SJ413P
SJ413P

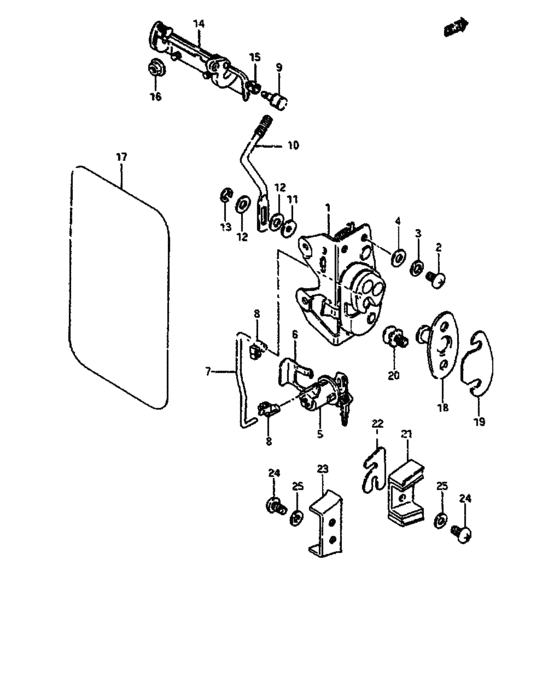

Back door lock (V) 37
| # | OEM | Part name |
|---|---|---|
| 1 | 82530-80101-000 | LOCK ASSY,BACK DR |
| 2 | 02112-06123-000 | Screw, breather cover |
| 2 | 02112-0612B-000 | SCREW - Screw, oil guide plate |
| 2 | 02112-0612A-000 | SCREW |
| 3 | 08321-21063-000 | Lock washer |
| 3 | 08321-0106A-000 | WASHER,LOCK |
| 4 | 08322-21063-000 | Washer |
| 4 | 08322-0106B-000 | WASHER |
| 5 | 77400-70812-000 | CYLINDER,FR DR LATCH LOCK,R |
| 6 | 77461-78000-000 | CLIP |
| 7 | 82581-80100-000 | ROD,KEY CYLINDER CONTROL |
| 8 | 09209-05016-000 | PIN |
| 9 | 77716-79000-000 | JOINT,ROD |
| 10 | 83231-80100-000 | ROD,LOCK OUTSIDE HANDLE |
| 11 | 09161-04008-000 | WASHER(4X12X2) |
| 12 | 09161-06008-000 | WASHER(6.5X13X1) |
| 13 | 08332-11058-000 | E ring |
| 13 | 08332-1105A-000 | E RING |
| 14 | 82810-83000-000 | HANDLE,DOOR OUTSIDE,R |
| 15 | 82891-80100-000 | SNAP,JOINT |
| 16 | 08316-26066-000 | Nut 6mm |
| 16 | 08316-2006A-000 | NUT |
| 16 | 08316-1006B-000 | NUT |
| 17 | 83912-80120-000 | フィルム,ウォータプルーフ |
| 17 | 83911-60X52-000 | COVER,DR SEALING |
| 18 | 82660-80100-000 | STRICKER BACK DOOR LATCH |
| 18 | 82660-80101-000 | STRIKER,BACK DOOR LATCH |
| 19 | 78199-79000-000 | SPACER |
| 20 | 09137-08006-000 | Screw - Screw (8x18) |
| 20 | 09137-08011-000 | SCREW(8X18) |
| 20 | 09137-08004-000 | SCREW(8X18) |
| 21 | 78251-68201-000 | MALE,BACK DR ST0P |
| 22 | 77891-63100-000 | SPACER |
| 23 | 78261-68201-000 | MALE,BACK DR ST0P |
| 24 | 02112-06163-000 | Screw |
| 24 | 02112-0616B-000 | SCREW |
| 24 | 02112-0616A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02112-06123-000 | Screw, breather cover | Back door lock (V) |
| 02112-0612A-000 | SCREW | Back door lock (V) |
| 02112-0612B-000 | SCREW - Screw, oil guide plate | Back door lock (V) |
| 02112-06163-000 | Screw | Back door lock (V) |
| 02112-0616A-000 | SCREW | Back door lock (V) |
| 02112-0616B-000 | SCREW | Back door lock (V) |
| 08316-1006B-000 | NUT | Back door lock (V) |
| 08316-2006A-000 | NUT | Back door lock (V) |
| 08316-26066-000 | Nut 6mm | Back door lock (V) |
| 08321-0106A-000 | WASHER,LOCK | Back door lock (V) |
| 08321-21063-000 | Lock washer | Back door lock (V) |
| 08322-0106B-000 | WASHER | Back door lock (V) |
| 08322-21063-000 | Washer | Back door lock (V) |
| 08332-11058-000 | E ring | Back door lock (V) |
| 08332-1105A-000 | E RING | Back door lock (V) |
| 09137-08004-000 | SCREW(8X18) | Back door lock (V) |
| 09137-08006-000 | Screw - Screw (8x18) | Back door lock (V) |
| 09137-08011-000 | SCREW(8X18) | Back door lock (V) |
| 09161-04008-000 | WASHER(4X12X2) | Back door lock (V) |
| 09161-06008-000 | WASHER(6.5X13X1) | Back door lock (V) |
| 09209-05016-000 | PIN | Back door lock (V) |
| 77400-70812-000 | CYLINDER,FR DR LATCH LOCK,R | Back door lock (V) |
| 77461-78000-000 | CLIP | Back door lock (V) |
| 77716-79000-000 | JOINT,ROD | Back door lock (V) |
| 77891-63100-000 | SPACER | Back door lock (V) |
| 78199-79000-000 | SPACER | Back door lock (V) |
| 78251-68201-000 | MALE,BACK DR ST0P | Back door lock (V) |
| 78261-68201-000 | MALE,BACK DR ST0P | Back door lock (V) |
| 82530-80101-000 | LOCK ASSY,BACK DR | Back door lock (V) |
| 82581-80100-000 | ROD,KEY CYLINDER CONTROL | Back door lock (V) |
| 82660-80100-000 | STRICKER BACK DOOR LATCH | Back door lock (V) |
| 82660-80101-000 | STRIKER,BACK DOOR LATCH | Back door lock (V) |
| 82810-83000-000 | HANDLE,DOOR OUTSIDE,R | Back door lock (V) |
| 82891-80100-000 | SNAP,JOINT | Back door lock (V) |
| 83231-80100-000 | ROD,LOCK OUTSIDE HANDLE | Back door lock (V) |
| 83911-60X52-000 | COVER,DR SEALING | Back door lock (V) |
| 83912-80120-000 | フィルム,ウォータプルーフ | Back door lock (V) |
