Search › Model › SJ413K

SJ413K

Suzuki SAMURAI · 5,544 parts · 174 categories

5,544 items

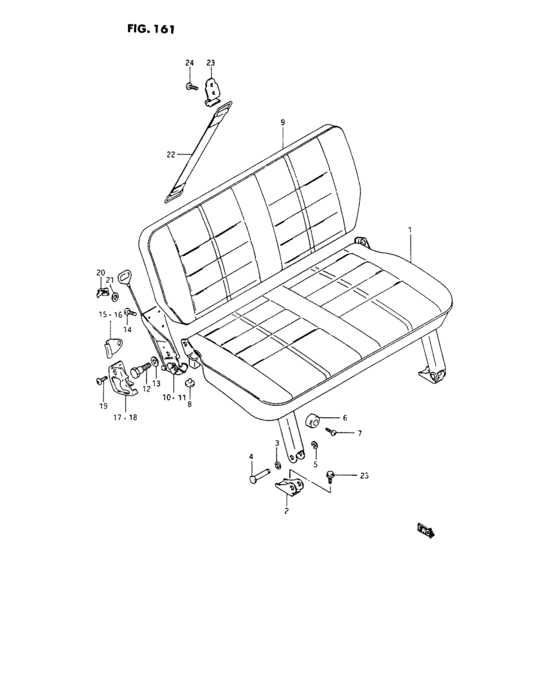

Rear seat (O, Q, W, V:JA) 105

#	OEM	Part name
1	87101-80580-7GP	Cushion assy, rear seat
1	87101-80581-8HC	Cushion assy, rear seat
1	87101-80581-9KN	Cushion assy, rear seat
1	87101-80601-7GS	Cushion assy, rear seat
1	87101-80601-8FC	Cushion assy, rear seat
1	87101-80601-9DA	Cushion assy, rear seat
1	87101-80661-7LT	Cushion assy, rear seat
1	87101-80661-8HH	Cushion assy, rear seat
1	87101-80661-9KP	Cushion assy, rear seat
1	87101-80681-7LW	Cushion assy, rear seat
1	87101-80681-8FD	Cushion assy, rear seat
1	87101-80681-9DC	Cushion assy, rear seat
1	87101-80590-7GS	Cushion assy, rear seat
1	87101-80590-8FC	Cushion assy, rear seat
1	87101-80570-7GP	Cushion assy, rear seat
1	87101-80570-8HC	Cushion assy, rear seat
1	87101-80570-9KN	Cushion assy, rear seat
1	87101-80670-7LW	Cushion assy, rear seat
1	87101-80691-7LW	New Genuine Part
1	87101-80670-8FD	Cushion assy, rear seat
1	87101-80670-9DC	Cushion assy, rear seat
1	87101-80650-7LT	Cushion assy, rear seat
1	87101-80650-8HH	Cushion assy, rear seat
1	87101-80650-9KP	Cushion assy, rear seat
1	87101-80530-7GS	Cushion assy, rear seat
1	87101-80530-8FC	Cushion assy, rear seat
1	87101-80520-7GP	Cushion assy, rear seat
1	87101-80520-8HC	Cushion assy, rear seat
1	87101-80520-9KN	Cushion assy, rear seat
2	87271-80121-000	Male, seat hinge
2	87271-80280-000	MALE,RR SEAT HNG
3	09164-07001-000	WASHER
4	09208-06001-000	ピン
4	87259-56B10-000	PIN,REAR SEAT HINGE
4	09148-06008-000	NUT - Nut, adjuster knob
4	87259-83000-000	ピン,リヤシートヒンジ
4	09148-06005-000	Nut seat moldin
5	08332-11046-000	E ring
5	08332-1104B-000	E RING
5	08332-1104A-000	E RING
6	09320-06006-000	CUSHION
6	09320-06014-000	CUSHION
7	03142-05209-000	Screw
7	03142-0520B-000	SCREW
8	87295-80200-000	CUSHION,REAR SEAT REAR LEG
8	87301-80590-7GS	Back assy, rear seat
8	87301-80611-7GS	New Genuine Part
8	87301-80590-8FC	Back assy, rear seat
8	87301-80570-7GP	Back assy, rear seat
8	87301-80570-8HC	Back assy, rear seat
8	87301-80570-9KN	Back assy, rear seat
8	87301-80670-7LW	Back assy, rear seat
8	87301-80691-7LW	New Genuine Part
8	87301-80670-8FD	Back assy, rear seat
8	87301-80670-9DC	Back assy, rear seat
8	87301-80650-7LT	Back assy, rear seat
8	87301-80650-8HH	Back assy, rear seat
8	87301-80650-9KP	Back assy, rear seat
9	87301-80550-7GP	Back assy, rear seat
9	87301-80550-8HC	Back assy, rear seat
9	87301-80550-9KN	Back assy, rear seat
9	87301-80550-7PR	Back assy, rear seat
9	87301-80550-8JG	Back assy, rear seat
9	87301-80600-7GS	Back assy, rear seat
9	87301-80600-8FC	Back assy, rear seat
9	87301-80600-9DA	Back assy, rear seat
9	87301-80560-7LT	Back assy, rear seat
9	87301-80560-8HH	Back assy, rear seat
9	87301-80560-9KP	Back assy, rear seat
9	87301-80560-7PR	Back assy, rear seat
9	87301-80560-8JH	Back assy, rear seat
9	87301-80680-7LW	Back assy, rear seat
9	87301-80680-8FD	Back assy, rear seat
9	87301-80680-9DC	Back assy, rear seat
10	87210-80200-000	LOCK,RR SEAT BACK HNG,R
11	87610-80200-000	LOCK,RR SEAT BACK HNG,L
12	09111-08044-000	BOLT(8X16)
13	08321-21107-000	Lock washer
13	08321-01107-000	WASHER,LOCK - Lock washer
14	02142-06127-000	SCREW
15	87221-80200-000	PROTECTOR,HINGE,R
16	87621-80200-000	PROTECTOR,HINGE,L
17	87229-80200-000	COVER,RR SEAT BACK HINGE,R
18	87629-80200-000	COVER,RR SEAT BACK HINGE,L
19	03241-05085-000	New Genuine Part
19	03241-0508A-000	SCREW
20	09403-06403-000	CLAMP
21	87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP
22	87291-80230-000	BAND,RR SEAT STOPPER
22	37152-66010-000	BOLT,STEERING LOCK
23	87292-80230-000	HOLDER,RR SEAT STOPPER BAND
23	01107-06126-000	Bolt 6x12
23	01500-0612A-000	Bolt
24	02142-05087-000	SCREW
24	08321-21066-000	Lock washer
24	08321-0106A-000	WASHER,LOCK
25	01517-08166-000	Bolt 8x16
25	01550-0816B-000	Bolt
25	08322-21066-000	Washer
25	08322-0106B-000	WASHER
26	09119-06017-000	Bolt
26	09119-06017-XC0	Bolt
27	09160-06020-000	Washer
27	09160-06066-000	WASHER(6.5X20X1.6) - Washer, throttle lever (6.5x20x1.6)
28	09119-06045-000	Bolt

OEM	Part name	Category
01107-06126-000	Bolt 6x12	Rear seat (O, Q, W, V:JA)
01500-0612A-000	Bolt	Rear seat (O, Q, W, V:JA)
01517-08166-000	Bolt 8x16	Rear seat (O, Q, W, V:JA)
01550-0816B-000	Bolt	Rear seat (O, Q, W, V:JA)
02142-05087-000	SCREW	Rear seat (O, Q, W, V:JA)
02142-06127-000	SCREW	Rear seat (O, Q, W, V:JA)
03142-05209-000	Screw	Rear seat (O, Q, W, V:JA)
03142-0520B-000	SCREW	Rear seat (O, Q, W, V:JA)
03241-05085-000	New Genuine Part	Rear seat (O, Q, W, V:JA)
03241-0508A-000	SCREW	Rear seat (O, Q, W, V:JA)
08321-0106A-000	WASHER,LOCK	Rear seat (O, Q, W, V:JA)
08321-01107-000	WASHER,LOCK - Lock washer	Rear seat (O, Q, W, V:JA)
08321-21066-000	Lock washer	Rear seat (O, Q, W, V:JA)
08321-21107-000	Lock washer	Rear seat (O, Q, W, V:JA)
08322-0106B-000	WASHER	Rear seat (O, Q, W, V:JA)
08322-21066-000	Washer	Rear seat (O, Q, W, V:JA)
08332-11046-000	E ring	Rear seat (O, Q, W, V:JA)
08332-1104A-000	E RING	Rear seat (O, Q, W, V:JA)
08332-1104B-000	E RING	Rear seat (O, Q, W, V:JA)
09111-08044-000	BOLT(8X16)	Rear seat (O, Q, W, V:JA)
09119-06017-000	Bolt	Rear seat (O, Q, W, V:JA)
09119-06017-XC0	Bolt	Rear seat (O, Q, W, V:JA)
09119-06045-000	Bolt	Rear seat (O, Q, W, V:JA)
09148-06005-000	Nut seat moldin	Rear seat (O, Q, W, V:JA)
09148-06008-000	NUT - Nut, adjuster knob	Rear seat (O, Q, W, V:JA)
09160-06020-000	Washer	Rear seat (O, Q, W, V:JA)
09160-06066-000	WASHER(6.5X20X1.6) - Washer, throttle lever (6.5x20x1.6)	Rear seat (O, Q, W, V:JA)
09164-07001-000	WASHER	Rear seat (O, Q, W, V:JA)
09208-06001-000	ピン	Rear seat (O, Q, W, V:JA)
09320-06006-000	CUSHION	Rear seat (O, Q, W, V:JA)
09320-06014-000	CUSHION	Rear seat (O, Q, W, V:JA)
09403-06403-000	CLAMP	Rear seat (O, Q, W, V:JA)
37152-66010-000	BOLT,STEERING LOCK	Rear seat (O, Q, W, V:JA)
87101-80520-7GP	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80520-8HC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80520-9KN	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80530-7GS	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80530-8FC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80570-7GP	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80570-8HC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80570-9KN	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80580-7GP	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80581-8HC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80581-9KN	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80590-7GS	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80590-8FC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80601-7GS	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80601-8FC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80601-9DA	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80650-7LT	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80650-8HH	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80650-9KP	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80661-7LT	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80661-8HH	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80661-9KP	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80670-7LW	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80670-8FD	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80670-9DC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80681-7LW	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80681-8FD	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80681-9DC	Cushion assy, rear seat	Rear seat (O, Q, W, V:JA)
87101-80691-7LW	New Genuine Part	Rear seat (O, Q, W, V:JA)
87210-80200-000	LOCK,RR SEAT BACK HNG,R	Rear seat (O, Q, W, V:JA)
87221-80200-000	PROTECTOR,HINGE,R	Rear seat (O, Q, W, V:JA)
87229-80200-000	COVER,RR SEAT BACK HINGE,R	Rear seat (O, Q, W, V:JA)
87259-56B10-000	PIN,REAR SEAT HINGE	Rear seat (O, Q, W, V:JA)
87259-83000-000	ピン,リヤシートヒンジ	Rear seat (O, Q, W, V:JA)
87271-80121-000	Male, seat hinge	Rear seat (O, Q, W, V:JA)
87271-80280-000	MALE,RR SEAT HNG	Rear seat (O, Q, W, V:JA)
87291-80230-000	BAND,RR SEAT STOPPER	Rear seat (O, Q, W, V:JA)
87292-80230-000	HOLDER,RR SEAT STOPPER BAND	Rear seat (O, Q, W, V:JA)
87295-80200-000	CUSHION,REAR SEAT REAR LEG	Rear seat (O, Q, W, V:JA)
87301-80550-7GP	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80550-7PR	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80550-8HC	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80550-8JG	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80550-9KN	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80560-7LT	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80560-7PR	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80560-8HH	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80560-8JH	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80560-9KP	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80570-7GP	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80570-8HC	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80570-9KN	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80590-7GS	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80590-8FC	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80600-7GS	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80600-8FC	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80600-9DA	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80611-7GS	New Genuine Part	Rear seat (O, Q, W, V:JA)
87301-80650-7LT	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80650-8HH	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80650-9KP	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80670-7LW	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80670-8FD	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80670-9DC	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80680-7LW	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80680-8FD	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80680-9DC	Back assy, rear seat	Rear seat (O, Q, W, V:JA)
87301-80691-7LW	New Genuine Part	Rear seat (O, Q, W, V:JA)
87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP	Rear seat (O, Q, W, V:JA)
87610-80200-000	LOCK,RR SEAT BACK HNG,L	Rear seat (O, Q, W, V:JA)
87621-80200-000	PROTECTOR,HINGE,L	Rear seat (O, Q, W, V:JA)
87629-80200-000	COVER,RR SEAT BACK HINGE,L	Rear seat (O, Q, W, V:JA)
