SJ413K

Suzuki SAMURAI · 5,544 parts · 174 categories
SJ413K ×

← Back to categories

5,544 items

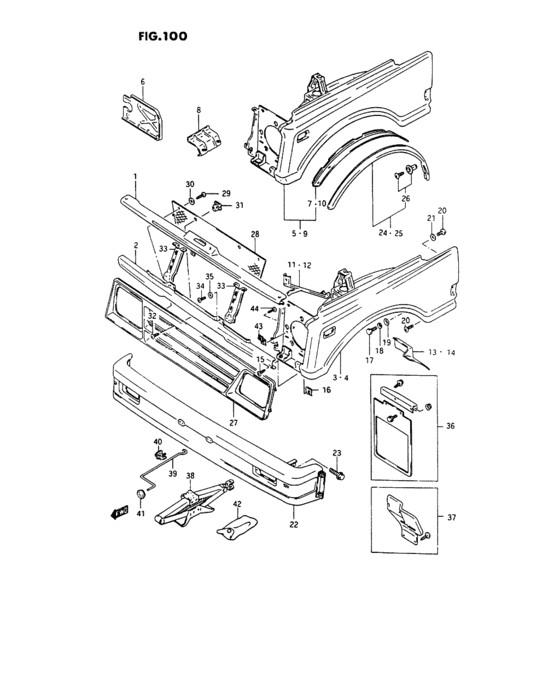

Front body (Ecuador) 77
#OEMPart name
1 58100-83001-000 Panel, front
1 58100-83004-000 MEMBER,FR UPR
1 09403-08313-000 CLAMP
1 58100-83003-000 Panel, front
1 58100-83010-000 Panel, front
2 58200-83000-000 Member, front lower
2 58200-83002-000 MEMBER,FR LWR
3 58600-83070-000 Panel, fender rh
4 58800-83070-000 Panel, fender lh
5 58600-83080-000 Panel, fender rh
5 58622-80002-000 HOLDER,FR FENDER EXT,R
6 58763-83001-000 BAFFLE,FR FENDER
8 58726-83000-000 Bracket, air cleaner lower
8 08310-0006B-000 NUT - Nut gear shift link rod
8 09160-06077-000 WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)
8 58726-83001-000 BRACKET,AIR CLNR LOWER
8 08310-0006A-000 NUT
8 08310-11063-000 Nut m6x1x5
9 58800-83080-000 Panel, fender lh
9 58822-80002-000 HOLDER,FR FENDER EXT,L
11 58723-83001-000 MEMBER,HEADLAMP HSG,R
12 58923-83001-000 MEMBER,HEADLAMP HSG,L
13 58771-80001-000 LINER,FR FENDER,R
14 58971-80001-000 LINER,FR FENDER,L
15 09125-06075-000 Screw,cowl front - Screw, cowl front (6x18)
15 09125-06029-000 SCREW(6X18) - Screw (6x18)
16 09148-06003-000 ナット
16 09148-06013-000 NUT
17 01107-06127-000 Bolt
17 01500-06127-000 Bolt
18 08321-21067-000 Lock washer
18 08321-01067-000 WASHER,LOCK
19 09160-06019-000 WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)
20 09125-06036-000 SCREW(6X15)
21 09160-06003-000 Washer - Washer (6.7x16x0.8)
21 09160-06129-000 WASHER(6.5X16X1)
22 71710-83001-162 Bar, front bumper
22 71710-83001-000 BAR,FR BUMPER
23 01514-08123-000 Bolt
23 01550-0812A-000 Bolt
23 01550-0812B-000 Bolt - Plug, drain
24 77110-80810-281 EXTENSION,FR FENDER,R
25 77120-80810-281 EXTENSION,FR FENDER,L
26 09409-07306-000 CLIP
27 72111-83020-21L Grille, front - Red
27 72111-83020-000 GRILLE,FR
27 72111-83020-09H Grille, front - Yellow
27 72111-83020-07B Grille, front - Black
27 72111-83020-09R Grille, front - Blue
27 72111-83020-18J Grille, front - Silver
27 72111-83020-20V Grille, front - Gray
27 72111-83020-17A Grille, front - White
28 72115-83020-000 NET,FR GRILLE
29 03241-05163-000 Screw, bracket
29 03241-0516A-000 SCREW
30 09160-05037-000 WASHER(5.5X16X1.2)
31 09148-05018-000 NUT
32 03242-05165-000 Screw
33 72410-83020-000 Member comp,front panel
34 02112-06125-000 Screw 6x12
34 02112-0612B-000 SCREW - Screw, oil guide plate
34 02112-0612A-000 SCREW
35 08322-21064-000 Washer
35 08322-0106B-000 WASHER
36 72210-80090-000 FLAP SET,FR MUD
37 72200-80810-000 カバーセット,マッド/スノー
38 09824-00041-000 Jack assy
38 89910-70A30-000 Jack assy
39 09824-00031-000 ハンドル,ジャッキ
39 09824-00017-000 HANDLE,JACK
40 09403-09309-000 CLAMP - Clamp, switch housing
41 09308-14006-000 GROMMET
42 09800-53800-000 Tool assy
42 09800-40024-000 TOOL ASSY - Spanner, wheel wrench, pliers, screwdriver, jack handle;
43 58744-83001-000 Bracket, head lamp
44 02142-05123-000 Screw 5x12
44 02142-0512A-000 SCREW - Screw, lower
