Search › Model › SJ413K

SJ413K

Suzuki SAMURAI · 5,544 parts · 174 categories

5,544 items

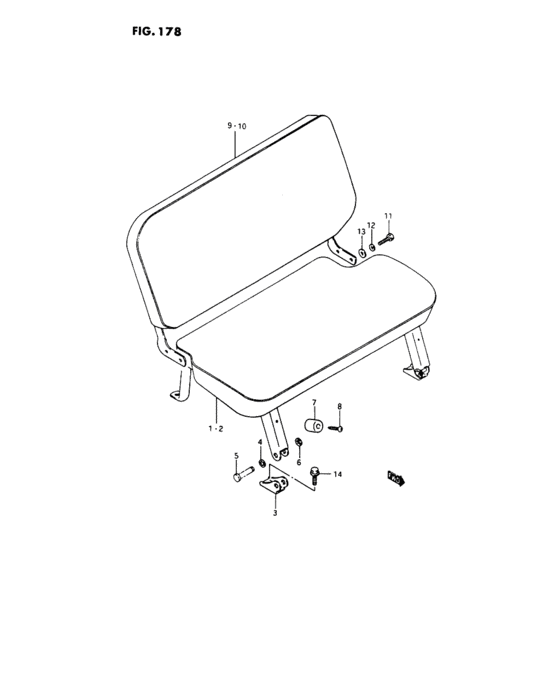

2nd rear seat (TYPE 3 : W JX RESIN TOP) 28

#	OEM	Part name
1	87102-83050-9CZ	Cushion assy, rear seat
2	87101-83050-9CZ	Cushion assy, rear seat
3	87271-80121-000	Male, seat hinge
3	87271-80280-000	MALE,RR SEAT HNG
4	09164-07001-000	WASHER
5	09208-06001-000	ピン
5	87259-56B10-000	PIN,REAR SEAT HINGE
5	09148-06008-000	NUT - Nut, adjuster knob
5	87259-83000-000	ピン,リヤシートヒンジ
5	09148-06005-000	Nut seat moldin
6	08332-11046-000	E ring
6	08332-1104B-000	E RING
6	08332-1104A-000	E RING
7	09320-06014-000	CUSHION
8	03142-05209-000	Screw
8	03142-0520B-000	SCREW
9	87302-83050-9CZ	Back assy, rear seat
10	87301-83050-9CZ	Back assy, rear seat
11	01107-08205-000	Bolt
11	01500-0820A-000	Bolt
12	08321-21086-000	Wsherlck8.2x15.2x1.6
12	08321-0108B-000	WASHER,LOCK
12	08321-0108A-000	WASHER,LOCK
13	08322-21086-000	Washer 8mm
13	08322-0108B-000	WASHER
13	08322-0108A-000	WASHER
14	01517-08166-000	Bolt 8x16
14	01550-0816B-000	Bolt

OEM	Part name	Category
01107-08205-000	Bolt	2nd rear seat (TYPE 3 : W JX RESIN TOP)
01500-0820A-000	Bolt	2nd rear seat (TYPE 3 : W JX RESIN TOP)
01517-08166-000	Bolt 8x16	2nd rear seat (TYPE 3 : W JX RESIN TOP)
01550-0816B-000	Bolt	2nd rear seat (TYPE 3 : W JX RESIN TOP)
03142-05209-000	Screw	2nd rear seat (TYPE 3 : W JX RESIN TOP)
03142-0520B-000	SCREW	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08321-0108A-000	WASHER,LOCK	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08321-0108B-000	WASHER,LOCK	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08321-21086-000	Wsherlck8.2x15.2x1.6	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08322-0108A-000	WASHER	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08322-0108B-000	WASHER	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08322-21086-000	Washer 8mm	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08332-11046-000	E ring	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08332-1104A-000	E RING	2nd rear seat (TYPE 3 : W JX RESIN TOP)
08332-1104B-000	E RING	2nd rear seat (TYPE 3 : W JX RESIN TOP)
09148-06005-000	Nut seat moldin	2nd rear seat (TYPE 3 : W JX RESIN TOP)
09148-06008-000	NUT - Nut, adjuster knob	2nd rear seat (TYPE 3 : W JX RESIN TOP)
09164-07001-000	WASHER	2nd rear seat (TYPE 3 : W JX RESIN TOP)
09208-06001-000	ピン	2nd rear seat (TYPE 3 : W JX RESIN TOP)
09320-06014-000	CUSHION	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87101-83050-9CZ	Cushion assy, rear seat	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87102-83050-9CZ	Cushion assy, rear seat	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87259-56B10-000	PIN,REAR SEAT HINGE	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87259-83000-000	ピン,リヤシートヒンジ	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87271-80121-000	Male, seat hinge	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87271-80280-000	MALE,RR SEAT HNG	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87301-83050-9CZ	Back assy, rear seat	2nd rear seat (TYPE 3 : W JX RESIN TOP)
87302-83050-9CZ	Back assy, rear seat	2nd rear seat (TYPE 3 : W JX RESIN TOP)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 174
Collected: 2026-08-01
