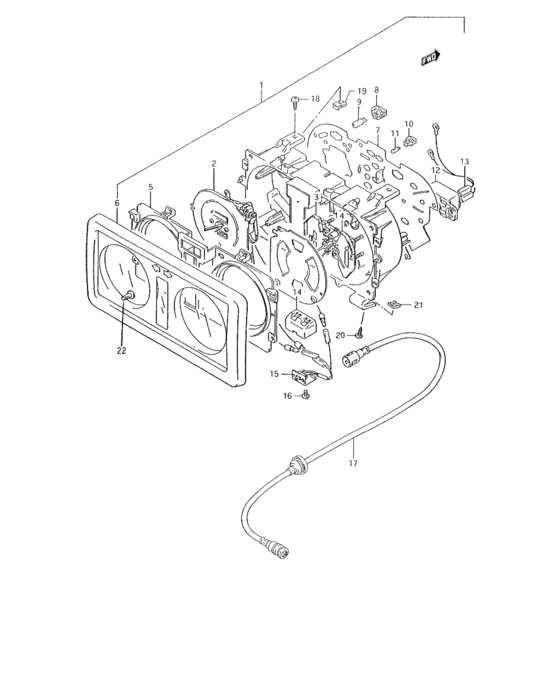

Speedometer (JA, JL)
33
| # | OEM | Part name |
|---|
| 1 |
34100-70A30-000 |
Speedometer assy |
| 1 |
34100-51C02-000 |
Speedometer assy |
| 1 |
34100-72A50-000 |
Speedometer assy |
| 1 |
34100-72A51-000 |
New Genuine Part |
| 2 |
34120-70A30-000 |
Body, speedometer |
| 2 |
34120-51C02-000 |
Body, speedometer |
| 2 |
34120-72A50-000 |
Body, speedometer |
| 3 |
34320-72A00-000 |
BODY ASSY,FUEL METER |
| 4 |
34420-70A30-000 |
BODY ASSY,TEMP METER |
| 5 |
34112-70A30-000 |
プレート,ウィンド |
| 6 |
34113-70A30-000 |
Glass, front |
| 6 |
34113-70A51-000 |
GLASS,FR |
| 7 |
34152-70A30-000 |
Plate, meter print |
| 8 |
34173-64010-000 |
ソケット |
| 8 |
34172-50E10-000 |
SOCKET |
| 9 |
09471-12028-000 |
BULB(12V3.4W,T10) |
| 10 |
34175-78900-000 |
SOCKET |
| 11 |
09471-12055-000 |
BULB(14V1.4W,T5) |
| 12 |
34160-67010-000 |
BUZZER ASSY |
| 13 |
34165-80250-000 |
Wire |
| 14 |
34180-82000-000 |
TIMER |
| 15 |
34130-82090-000 |
Switch assy, cancel |
| 15 |
34130-70A20-000 |
Switch assy, cancel |
| 16 |
02142-05086-000 |
スクリュ |
| 16 |
02142-0508A-000 |
SCREW - Screw, cap |
| 17 |
34910-80031-000 |
Cable, speedometer |
| 17 |
34910-80C60-000 |
CABLE ASSY,SPEEDOMETER |
| 18 |
03121-05165-000 |
スクリュ |
| 18 |
03121-0516A-000 |
SCREW |
| 19 |
09148-05005-000 |
NUT |
| 20 |
03141-05165-000 |
Screw - Vis |
| 20 |
03141-0516A-000 |
SCREW |
| 21 |
09148-05013-000 |
NUT |
| OEM |
Part name |
Category |
| 02142-05086-000 |
スクリュ |
Speedometer (JA, JL) |
| 02142-0508A-000 |
SCREW - Screw, cap |
Speedometer (JA, JL) |
| 03121-05165-000 |
スクリュ |
Speedometer (JA, JL) |
| 03121-0516A-000 |
SCREW |
Speedometer (JA, JL) |
| 03141-05165-000 |
Screw - Vis |
Speedometer (JA, JL) |
| 03141-0516A-000 |
SCREW |
Speedometer (JA, JL) |
| 09148-05005-000 |
NUT |
Speedometer (JA, JL) |
| 09148-05013-000 |
NUT |
Speedometer (JA, JL) |
| 09471-12028-000 |
BULB(12V3.4W,T10) |
Speedometer (JA, JL) |
| 09471-12055-000 |
BULB(14V1.4W,T5) |
Speedometer (JA, JL) |
| 34100-51C02-000 |
Speedometer assy |
Speedometer (JA, JL) |
| 34100-70A30-000 |
Speedometer assy |
Speedometer (JA, JL) |
| 34100-72A50-000 |
Speedometer assy |
Speedometer (JA, JL) |
| 34100-72A51-000 |
New Genuine Part |
Speedometer (JA, JL) |
| 34112-70A30-000 |
プレート,ウィンド |
Speedometer (JA, JL) |
| 34113-70A30-000 |
Glass, front |
Speedometer (JA, JL) |
| 34113-70A51-000 |
GLASS,FR |
Speedometer (JA, JL) |
| 34120-51C02-000 |
Body, speedometer |
Speedometer (JA, JL) |
| 34120-70A30-000 |
Body, speedometer |
Speedometer (JA, JL) |
| 34120-72A50-000 |
Body, speedometer |
Speedometer (JA, JL) |
| 34130-70A20-000 |
Switch assy, cancel |
Speedometer (JA, JL) |
| 34130-82090-000 |
Switch assy, cancel |
Speedometer (JA, JL) |
| 34152-70A30-000 |
Plate, meter print |
Speedometer (JA, JL) |
| 34160-67010-000 |
BUZZER ASSY |
Speedometer (JA, JL) |
| 34165-80250-000 |
Wire |
Speedometer (JA, JL) |
| 34172-50E10-000 |
SOCKET |
Speedometer (JA, JL) |
| 34173-64010-000 |
ソケット |
Speedometer (JA, JL) |
| 34175-78900-000 |
SOCKET |
Speedometer (JA, JL) |
| 34180-82000-000 |
TIMER |
Speedometer (JA, JL) |
| 34320-72A00-000 |
BODY ASSY,FUEL METER |
Speedometer (JA, JL) |
| 34420-70A30-000 |
BODY ASSY,TEMP METER |
Speedometer (JA, JL) |
| 34910-80031-000 |
Cable, speedometer |
Speedometer (JA, JL) |
| 34910-80C60-000 |
CABLE ASSY,SPEEDOMETER |
Speedometer (JA, JL) |
