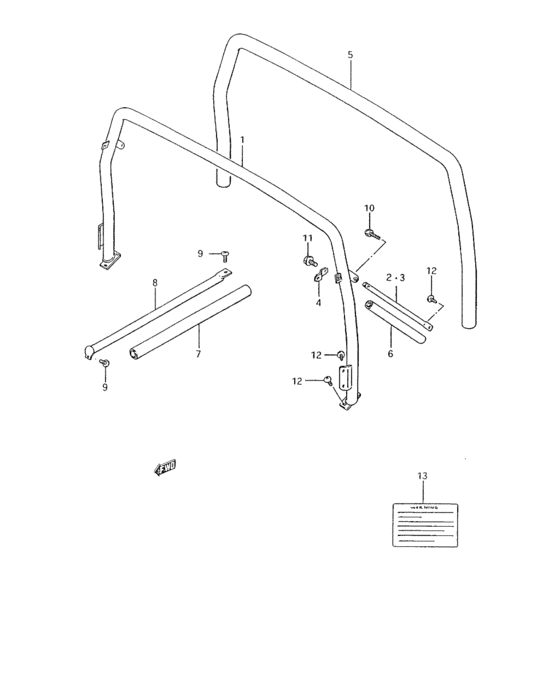

Roll bar (Q)
19
| # | OEM | Part name |
|---|
| 1 |
78600-83003-000 |
Pipe, roll bar center |
| 1 |
78600-83004-000 |
Pipe, roll bar center |
| 2 |
78612-83001-000 |
Support, roll bar rr rh |
| 2 |
78612-83002-000 |
Support,roll bar rear,r |
| 3 |
78613-83001-000 |
Support, roll bar rr lh |
| 4 |
78637-83000-000 |
STAY,EXT JOINT |
| 5 |
78638-83001-000 |
PAD,ROLL BAR CENTER NO.1 |
| 6 |
78639-83002-000 |
PAD,ROLL BAR CENTER NO.2 |
| 7 |
78641-83000-000 |
Pad, front |
| 8 |
78671-83001-000 |
Pipe, extension |
| 9 |
09125-08011-000 |
スクリュ |
| 9 |
09125-08015-XC0 |
SCREW(8X20) |
| 10 |
09125-08012-000 |
スクリュ,8X35 |
| 10 |
09125-08012-XC0 |
SCREW(5X35) |
| 11 |
01517-10165-000 |
Plug,adjuster hole |
| 11 |
01550-1016B-000 |
Bolt - Plug, oil gallery |
| 11 |
01550-1016A-000 |
Bolt - Plug, oil gallery |
| 13 |
79114-83031-000 |
Label, roll bar caution |
| 13 |
79114-83032-000 |
LABEL,ROLL BAR WARNING |
| OEM |
Part name |
Category |
| 01517-10165-000 |
Plug,adjuster hole |
Roll bar (Q) |
| 01550-1016A-000 |
Bolt - Plug, oil gallery |
Roll bar (Q) |
| 01550-1016B-000 |
Bolt - Plug, oil gallery |
Roll bar (Q) |
| 09125-08011-000 |
スクリュ |
Roll bar (Q) |
| 09125-08012-000 |
スクリュ,8X35 |
Roll bar (Q) |
| 09125-08012-XC0 |
SCREW(5X35) |
Roll bar (Q) |
| 09125-08015-XC0 |
SCREW(8X20) |
Roll bar (Q) |
| 78600-83003-000 |
Pipe, roll bar center |
Roll bar (Q) |
| 78600-83004-000 |
Pipe, roll bar center |
Roll bar (Q) |
| 78612-83001-000 |
Support, roll bar rr rh |
Roll bar (Q) |
| 78612-83002-000 |
Support,roll bar rear,r |
Roll bar (Q) |
| 78613-83001-000 |
Support, roll bar rr lh |
Roll bar (Q) |
| 78637-83000-000 |
STAY,EXT JOINT |
Roll bar (Q) |
| 78638-83001-000 |
PAD,ROLL BAR CENTER NO.1 |
Roll bar (Q) |
| 78639-83002-000 |
PAD,ROLL BAR CENTER NO.2 |
Roll bar (Q) |
| 78641-83000-000 |
Pad, front |
Roll bar (Q) |
| 78671-83001-000 |
Pipe, extension |
Roll bar (Q) |
| 79114-83031-000 |
Label, roll bar caution |
Roll bar (Q) |
| 79114-83032-000 |
LABEL,ROLL BAR WARNING |
Roll bar (Q) |
