SJ413

Suzuki SAMURAI · 3,383 parts · 106 categories

3,383 items

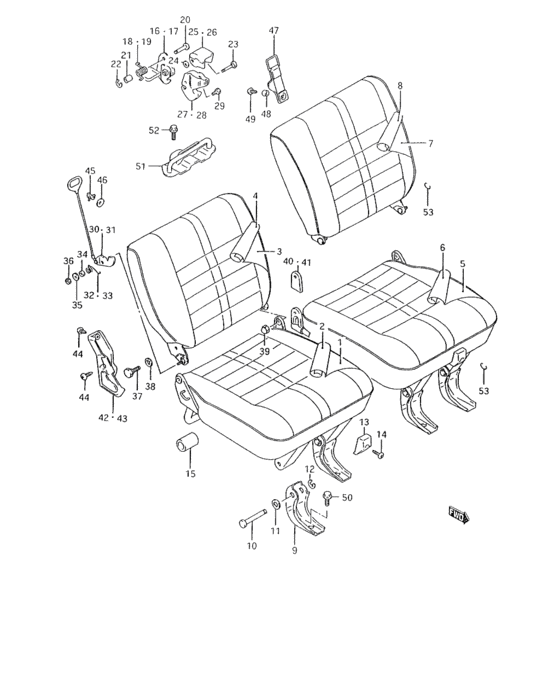

Rear seat (88 1/2 MODEL JX:SEPARATE TYPE) 93

#	OEM	Part name
1	87105-83810-000	CUSHION SUB SET,REAR SEAT,R
2	87180-83300-2AJ	Cover, cushion rh - Gray
2	87180-83300-2AK	Cover, cushion rh - Brown
2	87180-83310-9YW	Cover, cushion rh - Gray
2	87180-83310-9YZ	Cover, cushion rh - Brown
3	87305-83810-000	Back sub set, rh
4	87380-83300-2AJ	Cover, back rh - Gray
4	87380-83300-2AK	Cover, back rh - Brown
4	87380-83310-9YW	Cover, back rh - Gray
4	87380-83310-9YZ	Cover, back rh - Brown
5	87106-83810-000	CUSHION SUB SET,REAR SEAT,L
6	87580-83300-2AJ	Cover, cushion lh - Gray
6	87580-83300-2AK	Cover, cushion lh - Brown
6	87580-83310-9YW	Cover, cushion lh - Gray
6	87580-83310-9YZ	Cover, cushion lh - Brown
7	87306-83810-000	Back sub set, lh
8	87780-83300-2AJ	Cover, back lh - Gray
8	87780-83300-2AK	Cover, back lh - Brown
8	87780-83310-9YW	Cover, back lh - Gray
8	87780-83310-9YZ	Cover, back lh - Brown
9	87271-83000-000	MALE, REAR SEAT HINGE
10	09208-06001-000	ピン
10	87259-56B10-000	PIN,REAR SEAT HINGE
10	09148-06008-000	NUT - Nut, adjuster knob
10	87259-83000-000	ピン,リヤシートヒンジ
10	09148-06005-000	Nut seat moldin
11	09164-07001-000	WASHER
12	08332-11046-000	E ring
12	08332-1104B-000	E RING
12	08332-1104A-000	E RING
13	87195-83000-000	STOPPER,REAR SEAT
14	03141-05206-000	Screw 5x20
14	03141-0520B-000	SCREW
15	84354-79500-000	CUSHION,RR SEAT LEG
16	87250-83300-000	STOPPER,REAR SEAT,R
17	87650-83300-000	STOPPER,REAR SEAT,L
18	87255-83300-000	SPRING,SEAT BACK,R
19	87655-83300-000	SPRING,SEAT BACK,L
20	87256-83300-000	PIN,REAR SEAT STOPPER
21	87257-83300-000	COLLAR,RR SEAT LOCK
22	08332-11088-000	E ring
22	08332-1108A-000	E RING
23	87258-83300-000	STOPPER,REAR SEAT LOCK
25	87291-83300-281	Cover, rear seat bracket rh
25	87291-83300-5PK	COVER,RR SEAT LOCK BRACKET,R
26	87691-83300-281	Cover, rear seat bracket lh
26	87691-83300-5PK	COVER,RR SEAT LOCK BRACKET,L
27	87292-83300-281	Cover, rear seat lock rh
27	87292-83300-5PK	COVER,RR SEAT LOCK,R
28	87692-83300-281	Cover, rear seat lock lh
29	03212-05165-000	Screw 5x16
29	03212-0516B-000	SCREW
29	13765-48GV0-000	Screw
30	83610-83920-000	LEVER,RR SEAT BACK HINGE,R
31	83910-83920-000	LEVER,RR SEAT BACK HINGE,L
32	83914-73062-000	SPRING,HINGE,R
33	83944-73062-000	SPRING,HINGE,L
34	87325-83000-000	COLLAR,HINGE BOLT
35	08322-21086-000	Washer 8mm
35	08322-0108B-000	WASHER
35	08322-0108A-000	WASHER
36	08310-22086-000	Nut
36	08310-0008B-000	NUT
36	08310-0008A-000	NUT - Nut, bead stopper
37	87271-85500-000	BOLT RR SEAT BACK
37	09111-08044-000	BOLT(8X16)
38	08321-21107-000	Lock washer
38	08321-01107-000	WASHER,LOCK - Lock washer
39	08313-11085-000	Nut
39	08313-1008B-000	NUT
40	87228-83300-000	Cover, seat back hinge rh
40	87228-83300-5PK	COVER,RR SEAT BACK HNG INNER,R
41	87628-83300-000	カバー,リヤシートバックヒンジインナ,レフト
41	87628-83300-5PK	COVER,RR SEAT BACK HNG INNER,L
42	87229-83000-000	Cover, hinge outer rh
42	87229-83000-5PK	COVER,RR SEAT BACK HINGE,R
43	87629-83000-000	COVER,RR SEAT BACK HINGE,L
43	87629-83000-5PK	COVER,RR SEAT BACK HNG,L
44	03241-05085-000	New Genuine Part
44	03241-0508A-000	SCREW
45	09403-06403-000	CLAMP
46	87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP
47	87293-83300-000	BAND,RR SEAT STOPPER FR
48	87327-83000-000	COLLAR,SEAT STOPPER BAND
49	03242-05165-000	Screw
49	03241-0516A-000	SCREW
50	01517-08166-000	Bolt 8x16
50	01550-0816B-000	Bolt
51	87830-80270-000	STRIKER,SEAT BELT STOPPER
52	01517-10256-000	Boulon
52	01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l
52	01550-1025A-000	Bolt - Bolt, drive gear
53	09387-19001-000	RING

OEM	Part name	Category
01517-08166-000	Bolt 8x16	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
01517-10256-000	Boulon	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
01550-0816B-000	Bolt	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
01550-1025A-000	Bolt - Bolt, drive gear	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03141-05206-000	Screw 5x20	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03141-0520B-000	SCREW	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03212-05165-000	Screw 5x16	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03212-0516B-000	SCREW	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03241-05085-000	New Genuine Part	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03241-0508A-000	SCREW	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03241-0516A-000	SCREW	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
03242-05165-000	Screw	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08310-0008A-000	NUT - Nut, bead stopper	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08310-0008B-000	NUT	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08310-22086-000	Nut	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08313-1008B-000	NUT	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08313-11085-000	Nut	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08321-01107-000	WASHER,LOCK - Lock washer	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08321-21107-000	Lock washer	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08322-0108A-000	WASHER	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08322-0108B-000	WASHER	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08322-21086-000	Washer 8mm	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08332-11046-000	E ring	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08332-1104A-000	E RING	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08332-1104B-000	E RING	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08332-11088-000	E ring	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
08332-1108A-000	E RING	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09111-08044-000	BOLT(8X16)	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09148-06005-000	Nut seat moldin	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09148-06008-000	NUT - Nut, adjuster knob	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09164-07001-000	WASHER	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09208-06001-000	ピン	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09387-19001-000	RING	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
09403-06403-000	CLAMP	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
13765-48GV0-000	Screw	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
83610-83920-000	LEVER,RR SEAT BACK HINGE,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
83910-83920-000	LEVER,RR SEAT BACK HINGE,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
83914-73062-000	SPRING,HINGE,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
83944-73062-000	SPRING,HINGE,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
84354-79500-000	CUSHION,RR SEAT LEG	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87105-83810-000	CUSHION SUB SET,REAR SEAT,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87106-83810-000	CUSHION SUB SET,REAR SEAT,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87180-83300-2AJ	Cover, cushion rh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87180-83300-2AK	Cover, cushion rh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87180-83310-9YW	Cover, cushion rh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87180-83310-9YZ	Cover, cushion rh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87195-83000-000	STOPPER,REAR SEAT	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87228-83300-000	Cover, seat back hinge rh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87228-83300-5PK	COVER,RR SEAT BACK HNG INNER,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87229-83000-000	Cover, hinge outer rh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87229-83000-5PK	COVER,RR SEAT BACK HINGE,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87250-83300-000	STOPPER,REAR SEAT,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87255-83300-000	SPRING,SEAT BACK,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87256-83300-000	PIN,REAR SEAT STOPPER	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87257-83300-000	COLLAR,RR SEAT LOCK	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87258-83300-000	STOPPER,REAR SEAT LOCK	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87259-56B10-000	PIN,REAR SEAT HINGE	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87259-83000-000	ピン,リヤシートヒンジ	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87271-83000-000	MALE, REAR SEAT HINGE	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87271-85500-000	BOLT RR SEAT BACK	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87291-83300-281	Cover, rear seat bracket rh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87291-83300-5PK	COVER,RR SEAT LOCK BRACKET,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87292-83300-281	Cover, rear seat lock rh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87292-83300-5PK	COVER,RR SEAT LOCK,R	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87293-83300-000	BAND,RR SEAT STOPPER FR	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87305-83810-000	Back sub set, rh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87306-83810-000	Back sub set, lh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87325-83000-000	COLLAR,HINGE BOLT	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87327-83000-000	COLLAR,SEAT STOPPER BAND	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87380-83300-2AJ	Cover, back rh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87380-83300-2AK	Cover, back rh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87380-83310-9YW	Cover, back rh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87380-83310-9YZ	Cover, back rh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87580-83300-2AJ	Cover, cushion lh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87580-83300-2AK	Cover, cushion lh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87580-83310-9YW	Cover, cushion lh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87580-83310-9YZ	Cover, cushion lh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87628-83300-000	カバー,リヤシートバックヒンジインナ,レフト	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87628-83300-5PK	COVER,RR SEAT BACK HNG INNER,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87629-83000-000	COVER,RR SEAT BACK HINGE,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87629-83000-5PK	COVER,RR SEAT BACK HNG,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87650-83300-000	STOPPER,REAR SEAT,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87655-83300-000	SPRING,SEAT BACK,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87691-83300-281	Cover, rear seat bracket lh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87691-83300-5PK	COVER,RR SEAT LOCK BRACKET,L	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87692-83300-281	Cover, rear seat lock lh	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87780-83300-2AJ	Cover, back lh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87780-83300-2AK	Cover, back lh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87780-83310-9YW	Cover, back lh - Gray	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87780-83310-9YZ	Cover, back lh - Brown	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
87830-80270-000	STRIKER,SEAT BELT STOPPER	Rear seat (88 1/2 MODEL JX:SEPARATE TYPE)
