SJ413

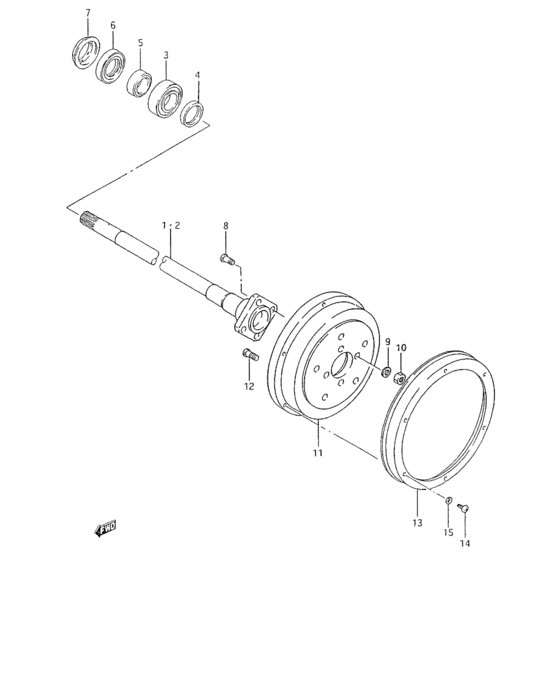

Rear axle (REAR AXLE) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 44210-83300-000 | Arbre cd arriere |
| 1 | 44210-70AV0-000 | SHAFT ASSY,REAR AXLE,R |
| 1 | 09119-12007-000 | Bolt |
| 1 | 44210-83301-000 | Shaft, rear axle rh |
| 2 | 44220-83300-000 | Arbre cg arriere |
| 2 | 44220-70AV0-000 | SHAFT ASSY,REAR AXLE,L |
| 2 | 44220-83301-000 | Shaft, rear axle lh |
| 3 | 09262-35036-000 | ベアリング |
| 3 | 09269-35009-000 | BEARING(35X72X22) |
| 4 | 44131-73001-000 | REAR SHAFT SPACER |
| 4 | 43429-77201-000 | SPACER,REAR WHEEL BEARING |
| 5 | 43485-73000-000 | RING,RR WHEEL BRG RETAINER |
| 6 | 09283-48007-000 | SEAL,OIL(48X62X9) |
| 7 | 43588-73000-000 | PROTECTOR,OIL SEAL |
| 8 | 09119-12003-000 | Bolt |
| 9 | 08321-31126-000 | Washer lock |
| 9 | 08321-0112A-000 | WASHER,LOCK |
| 10 | 08310-11126-000 | Nut |
| 10 | 08310-0012A-000 | NUT |
| 11 | 43500-83810-000 | Drum set,rear brake |
| 11 | 43500-83811-000 | DRUM SET,RR BRAKE |
| 13 | 43521-83003-000 | COVER,BRAKE DRUM DUST |
| 14 | 02112-06103-000 | Screw 6x10 |
| 14 | 02112-0610B-000 | SCREW |
| 15 | 08321-21063-000 | Lock washer |
| 15 | 08321-0106A-000 | WASHER,LOCK |
| OEM | Part name | Category |
|---|---|---|
| 02112-06103-000 | Screw 6x10 | Rear axle (REAR AXLE) |
| 02112-0610B-000 | SCREW | Rear axle (REAR AXLE) |
| 08310-0012A-000 | NUT | Rear axle (REAR AXLE) |
| 08310-11126-000 | Nut | Rear axle (REAR AXLE) |
| 08321-0106A-000 | WASHER,LOCK | Rear axle (REAR AXLE) |
| 08321-0112A-000 | WASHER,LOCK | Rear axle (REAR AXLE) |
| 08321-21063-000 | Lock washer | Rear axle (REAR AXLE) |
| 08321-31126-000 | Washer lock | Rear axle (REAR AXLE) |
| 09119-12003-000 | Bolt | Rear axle (REAR AXLE) |
| 09119-12007-000 | Bolt | Rear axle (REAR AXLE) |
| 09262-35036-000 | ベアリング | Rear axle (REAR AXLE) |
| 09269-35009-000 | BEARING(35X72X22) | Rear axle (REAR AXLE) |
| 09283-48007-000 | SEAL,OIL(48X62X9) | Rear axle (REAR AXLE) |
| 43429-77201-000 | SPACER,REAR WHEEL BEARING | Rear axle (REAR AXLE) |
| 43485-73000-000 | RING,RR WHEEL BRG RETAINER | Rear axle (REAR AXLE) |
| 43500-83810-000 | Drum set,rear brake | Rear axle (REAR AXLE) |
| 43500-83811-000 | DRUM SET,RR BRAKE | Rear axle (REAR AXLE) |
| 43521-83003-000 | COVER,BRAKE DRUM DUST | Rear axle (REAR AXLE) |
| 43588-73000-000 | PROTECTOR,OIL SEAL | Rear axle (REAR AXLE) |
| 44131-73001-000 | REAR SHAFT SPACER | Rear axle (REAR AXLE) |
| 44210-70AV0-000 | SHAFT ASSY,REAR AXLE,R | Rear axle (REAR AXLE) |
| 44210-83300-000 | Arbre cd arriere | Rear axle (REAR AXLE) |
| 44210-83301-000 | Shaft, rear axle rh | Rear axle (REAR AXLE) |
| 44220-70AV0-000 | SHAFT ASSY,REAR AXLE,L | Rear axle (REAR AXLE) |
| 44220-83300-000 | Arbre cg arriere | Rear axle (REAR AXLE) |
| 44220-83301-000 | Shaft, rear axle lh | Rear axle (REAR AXLE) |
