SJ413

Suzuki SAMURAI · 3,383 parts · 106 categories
SJ413 ×

← Back to categories

3,383 items

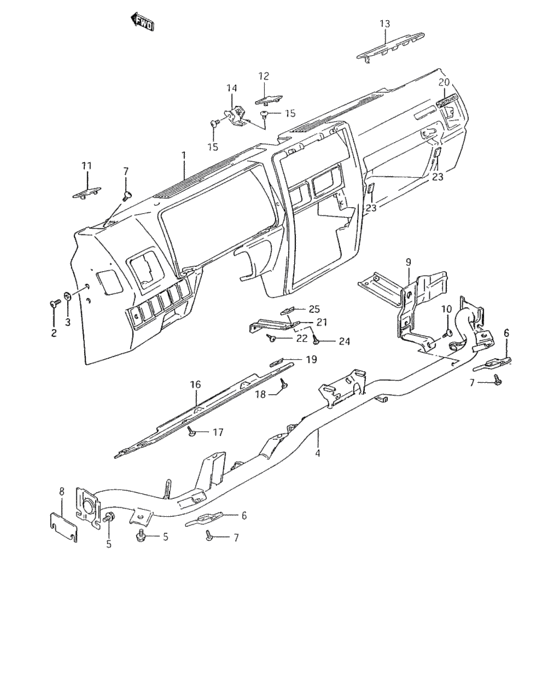

Instrument panel (INSTRUMENT PANEL) 41
#OEMPart name
1 73111-70A11-5CW Panel, cover - Brown
1 73111-70A12-5ES PANEL,I/P
1 73111-70A11-5ES Panel, cover - Black
2 02112-06164-000 Screw
2 02112-0616B-000 SCREW
2 02112-0616A-000 SCREW
3 09160-06074-000 Washer,fuel tan - Washer (6.5x24x1.6)
3 09160-06501-000 WASHER(6.5X24X1.6)
4 72310-70A20-000 HOLDER,STEERING COLUMN,L
5 01517-08166-000 Bolt 8x16
5 01550-0816B-000 Bolt
6 72322-83000-000 STAY,I/P
7 02142-06164-000 Screw
7 02142-0616A-000 SCREW
8 72321-80001-000 Bracket, steering plate
8 72321-80002-000 PLATE,STEERING COLUMN HOLDER
9 73810-83000-000 Stay, hood lock opener
9 73810-83001-000 Stay, hood lock opener
10 03141-06125-000 New Genuine Part
10 03141-0612A-000 SCREW
11 73811-70A00-5CW Cap, no. 1
11 73811-70A00-5ES CAP,INSTPNL,NO.1
12 73812-70A01-5CW Cap, no. 3
12 73812-70A01-5ES CAP,INSTPNL,NO.3
13 73821-70A11-5CW CAP,INSTPNL,NO.2,R
13 73821-70A11-5ES CAP,INSTPNL,NO.2,R
14 73815-70A00-000 BRACKET,CTR
15 02142-06123-000 Screw - Screw, tilt up handle
15 02142-0612B-000 SCREW
15 02142-0612A-000 SCREW
16 73813-83010-5CW Cover, lower
16 73813-83010-5ES COVER,INSTPNL,LOWER
18 03242-05165-000 Screw
18 03241-0516A-000 SCREW
19 09148-05013-000 NUT
20 77811-83060-000 EMBLEM,I/P
21 73825-70A00-000 STAY,INSTRUMENT CENTER
22 03241-05105-000 Screw
22 03242-0510B-000 SCREW
22 03241-0510A-000 SCREW
23 73415-70A00-000 PAD
