Search › Model › SJ413
SJ413

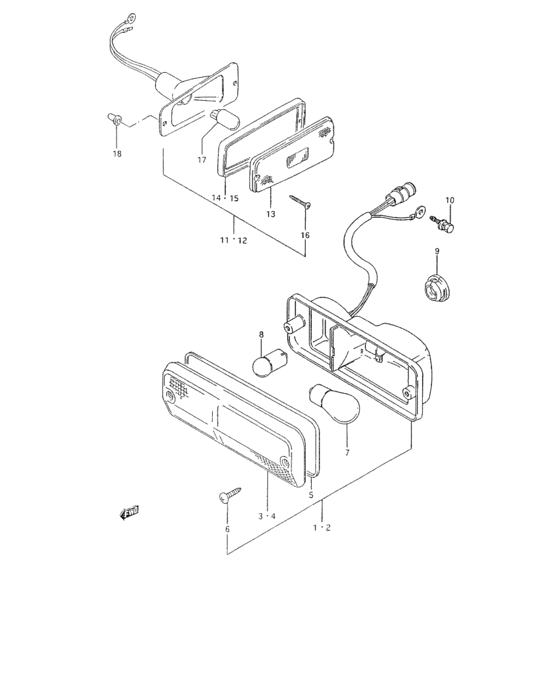

Front lamp (FRONT LAMP) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 35601-80042-000 | LAMP ASSY,FR COMB,R |
| 2 | 35602-80042-000 | LAMP ASSY,FR COMB,L |
| 3 | 35612-78000-000 | LENS,R |
| 4 | 35632-78000-000 | LENS,L |
| 5 | 35613-75100-000 | Gasket |
| 6 | 03112-04309-000 | SCREW |
| 7 | 09471-12065-000 | BULB(12V27W) |
| 8 | 09471-12141-000 | BULB(12V8W) |
| 9 | 09308-08007-000 | GROMMET |
| 10 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 10 | 09115-06005-000 | BOLT(6X16) |
| 11 | 36510-80000-000 | LAMP&RR ASSY,FR SIDE,R |
| 12 | 36520-80000-000 | LAMP&RR ASSY,FR SIDE,L |
| 13 | 36513-80000-000 | LENS |
| 14 | 36512-80000-000 | GASKET,R |
| 15 | 36522-80000-000 | GASKET,L |
| 16 | 03112-04209-000 | New Genuine Part |
| 16 | 03112-0420B-000 | SCREW |
| 17 | 09471-12094-000 | BULB(12V2CP) |
| 18 | 09159-04004-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 03112-04209-000 | New Genuine Part | Front lamp (FRONT LAMP) |
| 03112-0420B-000 | SCREW | Front lamp (FRONT LAMP) |
| 03112-04309-000 | SCREW | Front lamp (FRONT LAMP) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Front lamp (FRONT LAMP) |
| 09115-06005-000 | BOLT(6X16) | Front lamp (FRONT LAMP) |
| 09159-04004-000 | NUT | Front lamp (FRONT LAMP) |
| 09308-08007-000 | GROMMET | Front lamp (FRONT LAMP) |
| 09471-12065-000 | BULB(12V27W) | Front lamp (FRONT LAMP) |
| 09471-12094-000 | BULB(12V2CP) | Front lamp (FRONT LAMP) |
| 09471-12141-000 | BULB(12V8W) | Front lamp (FRONT LAMP) |
| 35601-80042-000 | LAMP ASSY,FR COMB,R | Front lamp (FRONT LAMP) |
| 35602-80042-000 | LAMP ASSY,FR COMB,L | Front lamp (FRONT LAMP) |
| 35612-78000-000 | LENS,R | Front lamp (FRONT LAMP) |
| 35613-75100-000 | Gasket | Front lamp (FRONT LAMP) |
| 35632-78000-000 | LENS,L | Front lamp (FRONT LAMP) |
| 36510-80000-000 | LAMP&RR ASSY,FR SIDE,R | Front lamp (FRONT LAMP) |
| 36512-80000-000 | GASKET,R | Front lamp (FRONT LAMP) |
| 36513-80000-000 | LENS | Front lamp (FRONT LAMP) |
| 36520-80000-000 | LAMP&RR ASSY,FR SIDE,L | Front lamp (FRONT LAMP) |
| 36522-80000-000 | GASKET,L | Front lamp (FRONT LAMP) |
