SJ413

Suzuki SAMURAI · 3,383 parts · 106 categories
SJ413 ×

← Back to categories

3,383 items

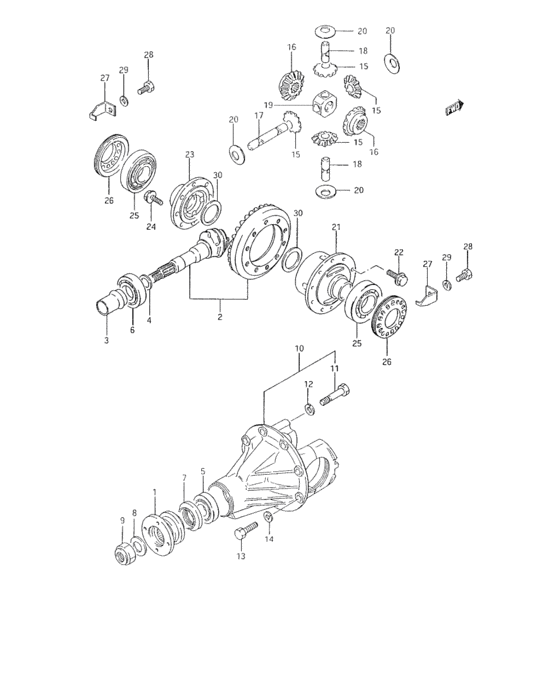

Front differential gear 86
#OEMPart name
1 27110-83001-000 FLANGE,UNIVERSAL JOINT
1 27110-60A00-000 FLANGE COMP UNIVERSAL JOINT
1 27110-56B01-000 FLANGE,UNIVERSAL JOINT
2 27300-83821-000 Pinion & gear set, bevel
2 27300-83823-000 BEVEL PINION&GEAR SET
2 27300-83830-000 Pinion & gear set, bevel
2 27300-83832-000 BEVEL PINION&GEAR SET
3 27315-83001-000 SPACER DRIVE BEVEL PINION
3 27315-60A01-000 SPACER,DRIVE BEVEL PINION
4 09181-35023-000 SHIM(35X42X0.3)
4 09181-35101-000 SHIM(35X42X0.5) - Shim (t:0.5)
4 09181-35012-000 SHIM(35X42X1)
4 09181-35013-000 シム,T:1.03
4 09181-35014-000 Shim 35x42x1.06
4 09181-35015-000 シム,T:1.09
4 09181-35016-000 シム,T:1.12
4 09181-35117-000 SHIM(35X42X1.12)
4 09181-35017-000 シム,T:1.15
4 09181-35018-000 シム,T:1.18
4 09181-35119-000 SHIM(35X42X1.18)
4 09181-35019-000 シム,T:1.21
4 09181-35020-000 シム,T:1.24
4 09181-35122-000 SHIM(35X42X1.24)
4 09181-35021-000 シム,T:1.27
4 09181-35022-000 シム,T:1.30
4 09181-35125-000 SHIM(35X42X1.3)
5 09265-30002-000 ベアリング,30X72X20.75
5 09265-30010-000 BEARING(30X72X20.75)
6 09265-35002-000 ベアリング,35X80X22.75
6 09265-35011-000 BEARING(35X80X22.75)
7 09283-40013-000 オイルシール,40X72X10
7 09283-40027-000 SEAL,OIL(40x72x11x18)
7 09283-40022-000 SEAL,OIL(40X72X18.5)
8 09160-20056-000 WASHER(20.1X36X4)
9 09159-20003-000 NUT20 MM
9 27375-60A00-000 NUT,UNIVERSAL JOINT
10 27450-83000-000 Carter dif
10 27450-60830-000 CARRIER ASSY,DIFF
11 09111-12009-000 ボルト,12X61
11 09111-12010-000 BOLT(12X58)
12 08321-31126-000 Washer lock
12 08321-0112A-000 WASHER,LOCK
13 01107-08253-000 Bolt m8x1.25x25
13 01500-0825A-000 Bolt
14 08321-31083-000 New Genuine Part
14 08321-0108A-000 WASHER,LOCK
14 08321-0108B-000 WASHER,LOCK
15 27331-83000-000 PINION DIFF
15 27331-76A20-000 PINION,DIFFERENTIAL
15 27331-83020-000 PINION,DIFFERENTIAL
15 27331-76A21-000 Pinion,differential
15 27331-60A10-000 PINION DIFFERENTIAL
16 27341-83100-000 Gear, differential
16 27341-76A21-000 GEAR,DIFF
16 27341-76A22-000 Gear,diff
16 27341-60A01-000 GEAR DIFF
17 27351-83000-000 シャフト,ピニオン,NO.1
17 27351-65D00-000 SHAFT,DIFF PINION NO.1
17 27351-60A20-000 Shaft, pinion
17 27351-64B20-000 SHAFT,DIFF SIDE PINION
18 27355-83000-000 シャフト,ピニオン,NO.2
18 27355-65D00-000 SHAFT,DIFF PINION NO.2
18 09205-05007-000 PIN,SPRING(5X36)
19 27356-63001-000 SHAFT DIFF PINION
19 27356-86081-000 JOINT,DIFF PINION SHAFT
20 09164-15006-000 WASHER
20 27411-60A02-000 CASE DIFF
21 27411-83000-000 CASE,DIFF,L
21 09103-10211-000 Bolt - 10x20
21 09103-10220-000 BOLT(10X23)
22 09103-10028-000 Bolt, oil pump drive gear
22 09103-10290-000 BOLT(10X20) - Bolt, oil pump drive gear
22 27421-60A02-000 CASE DIFFERENTIAL
23 27421-83000-000 CASE,DIFF,R
24 09103-08030-000 ボルト,8X18.5
24 09103-08348-000 BOLT(8X18.5)
25 09265-45002-000 BEARING(45.2X80X19.84)
26 27461-83000-000 ADJUSTER,DIFF SIDE BEARING
27 27462-63202-000 PLATE,BEARING LOCK
28 01107-08126-000 Bolt 8x12
28 01500-0812A-000 Bolt
29 08321-21086-000 Wsherlck8.2x15.2x1.6
30 09160-35006-000 WASHER(35X46X0.9)
30 09160-35002-000 WASHER(35X46X1)
30 09160-35003-000 WASHER(35X46X1.1)
30 09160-35004-000 WASHER(35X46X1.2)
