SJ413

Suzuki SAMURAI · 3,383 parts · 106 categories

3,383 items

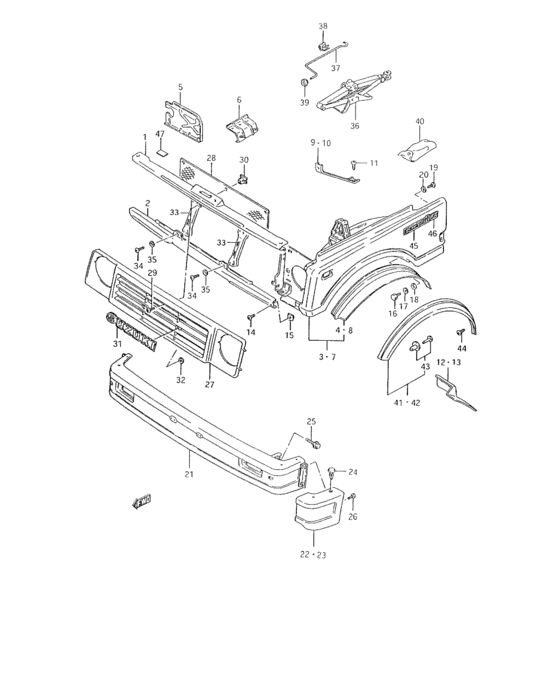

Front body (88 1/2 MODEL) 102

#	OEM	Part name
1	58100-70A02-000	MEMBER,FR UPR
2	58200-83002-000	MEMBER,FR LWR
3	58600-70A70-000	Panel, fender rh
4	58622-83002-000	HOLDER,FR FENDER EXT,R
5	58763-83001-000	BAFFLE,FR FENDER
6	58726-83001-000	BRACKET,AIR CLNR LOWER
7	58800-70A20-000	Panel, fender lh
7	58800-70A70-000	New Genuine Part
8	58822-83002-000	HOLDER,FR FENDER EXT,L
9	58723-83001-000	MEMBER,HEADLAMP HSG,R
10	58923-83001-000	MEMBER,HEADLAMP HSG,L
11	09125-06075-000	Screw,cowl front - Screw, cowl front (6x18)
11	09125-06029-000	SCREW(6X18) - Screw (6x18)
12	58771-80001-000	LINER,FR FENDER,R
13	58971-80001-000	LINER,FR FENDER,L
15	09148-06003-000	ナット
15	09148-06013-000	NUT
16	01107-06127-000	Bolt
16	01500-06127-000	Bolt
17	08321-21067-000	Lock washer
17	08321-01067-000	WASHER,LOCK
18	09160-06019-000	WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)
20	09160-06003-000	Washer - Washer (6.7x16x0.8)
20	09160-06129-000	WASHER(6.5X16X1)
21	71710-83301-162	Bar, front bumper - Black
21	71710-82C11-000	BAR,FR BUMPER
21	71710-82C01-000	BAR,FR BUMPER
22	71741-83301-000	Pont parechoc cd
22	71741-83302-000	PROTECTOR,FR BUMPER CORNER,R
23	71742-83301-000	Pont parechoc cg
23	71742-83302-000	PROTECTOR,FR BUMPER CORNER,L
24	09409-07311-000	CLIP
25	01517-08123-000	BOLT 8X12
25	01550-0812B-000	Bolt - Plug, drain
25	01550-0812A-000	Bolt
26	02142-06123-000	Screw - Screw, tilt up handle
26	02142-0612B-000	SCREW
26	02142-0612A-000	SCREW
27	72111-70A10-2DJ	Grille, front
27	72111-70A11-000	Grille,front
27	72111-70A10-2DE	Grille, front
27	72111-70A10-2DH	Grille, front
27	72111-70A10-8KJ	Grille, front
27	72111-70A10-2DF	Grille, front
27	72111-70A10-2DK	Grille, front
27	72111-70A10-2DG	Grille, front
27	72111-70A10-7HS	Grille, front
27	72111-70A10-2DM	Grille, front
27	72111-70A10-2VR	Grille, front
27	72111-70A10-2VS	Grille, front
27	72111-70A10-2VT	Grille, front
28	72115-70A02-000	NET,FR GRILLE
29	03242-05165-000	Screw
29	03241-0516A-000	SCREW
30	09148-05022-000	NUT
31	77811-83000-8GS	EMBLEM,TOP
31	77811-83001-8GS	Emblem,top
32	09148-03003-000	NUT
33	72411-70A00-000	Member, front panel
33	72411-82C00-000	MEMBER,FR PANEL
34	02112-06125-000	Screw 6x12
34	02112-0612B-000	SCREW - Screw, oil guide plate
34	02112-0612A-000	SCREW
35	08322-21064-000	Washer
35	08322-0106B-000	WASHER
36	09824-00036-000	JACK ASSY
36	89913-77EVV-000	JACK ASSY
36	89913-77EV1-000	JACK COMP
36	89910-70A40-000	JACK ASSY
36	09824-00032-000	JACK ASSY
36	89913-77EV0-000	ジャッキアッシ
37	09824-00035-000	HANDLE,JACK
38	09403-09309-000	CLAMP - Clamp, switch housing
39	09308-14006-000	GROMMET
40	09800-53800-000	Tool assy
40	09800-40024-000	TOOL ASSY - Spanner, wheel wrench, pliers, screwdriver, jack handle;
41	77140-83812-21L	Extension, body side lh
41	77140-83812-799	EXTENSION,BODY SIDE
41	77140-83812-37T	Extension, body side lh
41	77140-83812-07B	Extension, body side lh
41	77140-83812-18J	Extension, body side lh
41	77140-83812-20V	Extension, body side lh
41	77140-83812-26U	Extension, body side lh
41	77140-83812-24U	Extension, body side lh
41	77140-83812-38C	Extension, body side lh
41	77140-83812-27G	Extension, body side lh
42	77130-83812-21L	Extension, body side rh
42	77130-83812-799	EXTENSION SET,BODY SIDE
42	77130-83812-37T	Extension, body side rh
42	77130-83812-07B	Extension, body side rh
42	77130-83812-18J	Extension, body side rh
42	77130-83812-20V	Extension, body side rh
42	77130-83812-26U	Extension, body side rh
42	77130-83812-24U	Extension, body side rh
42	77130-83812-38C	Extension, body side rh
42	77130-83812-27G	Extension, body side rh
43	09409-07312-000	CLIP
44	09125-06036-000	SCREW(6X15)
45	77815-83060-000	EMBLEM,SIDE
46	77819-83001-000	EMBLEM,JX
47	72441-80002-000	Film, hood cushion
47	72878-57C00-000	PROTECTOR

OEM	Part name	Category
01107-06127-000	Bolt	Front body (88 1/2 MODEL)
01500-06127-000	Bolt	Front body (88 1/2 MODEL)
01517-08123-000	BOLT 8X12	Front body (88 1/2 MODEL)
01550-0812A-000	Bolt	Front body (88 1/2 MODEL)
01550-0812B-000	Bolt - Plug, drain	Front body (88 1/2 MODEL)
02112-06125-000	Screw 6x12	Front body (88 1/2 MODEL)
02112-0612A-000	SCREW	Front body (88 1/2 MODEL)
02112-0612B-000	SCREW - Screw, oil guide plate	Front body (88 1/2 MODEL)
02142-06123-000	Screw - Screw, tilt up handle	Front body (88 1/2 MODEL)
02142-0612A-000	SCREW	Front body (88 1/2 MODEL)
02142-0612B-000	SCREW	Front body (88 1/2 MODEL)
03241-0516A-000	SCREW	Front body (88 1/2 MODEL)
03242-05165-000	Screw	Front body (88 1/2 MODEL)
08321-01067-000	WASHER,LOCK	Front body (88 1/2 MODEL)
08321-21067-000	Lock washer	Front body (88 1/2 MODEL)
08322-0106B-000	WASHER	Front body (88 1/2 MODEL)
08322-21064-000	Washer	Front body (88 1/2 MODEL)
09125-06029-000	SCREW(6X18) - Screw (6x18)	Front body (88 1/2 MODEL)
09125-06036-000	SCREW(6X15)	Front body (88 1/2 MODEL)
09125-06075-000	Screw,cowl front - Screw, cowl front (6x18)	Front body (88 1/2 MODEL)
09148-03003-000	NUT	Front body (88 1/2 MODEL)
09148-05022-000	NUT	Front body (88 1/2 MODEL)
09148-06003-000	ナット	Front body (88 1/2 MODEL)
09148-06013-000	NUT	Front body (88 1/2 MODEL)
09160-06003-000	Washer - Washer (6.7x16x0.8)	Front body (88 1/2 MODEL)
09160-06019-000	WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)	Front body (88 1/2 MODEL)
09160-06129-000	WASHER(6.5X16X1)	Front body (88 1/2 MODEL)
09308-14006-000	GROMMET	Front body (88 1/2 MODEL)
09403-09309-000	CLAMP - Clamp, switch housing	Front body (88 1/2 MODEL)
09409-07311-000	CLIP	Front body (88 1/2 MODEL)
09409-07312-000	CLIP	Front body (88 1/2 MODEL)
09800-40024-000	TOOL ASSY - Spanner, wheel wrench, pliers, screwdriver, jack handle;	Front body (88 1/2 MODEL)
09800-53800-000	Tool assy	Front body (88 1/2 MODEL)
09824-00032-000	JACK ASSY	Front body (88 1/2 MODEL)
09824-00035-000	HANDLE,JACK	Front body (88 1/2 MODEL)
09824-00036-000	JACK ASSY	Front body (88 1/2 MODEL)
58100-70A02-000	MEMBER,FR UPR	Front body (88 1/2 MODEL)
58200-83002-000	MEMBER,FR LWR	Front body (88 1/2 MODEL)
58600-70A70-000	Panel, fender rh	Front body (88 1/2 MODEL)
58622-83002-000	HOLDER,FR FENDER EXT,R	Front body (88 1/2 MODEL)
58723-83001-000	MEMBER,HEADLAMP HSG,R	Front body (88 1/2 MODEL)
58726-83001-000	BRACKET,AIR CLNR LOWER	Front body (88 1/2 MODEL)
58763-83001-000	BAFFLE,FR FENDER	Front body (88 1/2 MODEL)
58771-80001-000	LINER,FR FENDER,R	Front body (88 1/2 MODEL)
58800-70A20-000	Panel, fender lh	Front body (88 1/2 MODEL)
58800-70A70-000	New Genuine Part	Front body (88 1/2 MODEL)
58822-83002-000	HOLDER,FR FENDER EXT,L	Front body (88 1/2 MODEL)
58923-83001-000	MEMBER,HEADLAMP HSG,L	Front body (88 1/2 MODEL)
58971-80001-000	LINER,FR FENDER,L	Front body (88 1/2 MODEL)
71710-82C01-000	BAR,FR BUMPER	Front body (88 1/2 MODEL)
71710-82C11-000	BAR,FR BUMPER	Front body (88 1/2 MODEL)
71710-83301-162	Bar, front bumper - Black	Front body (88 1/2 MODEL)
71741-83301-000	Pont parechoc cd	Front body (88 1/2 MODEL)
71741-83302-000	PROTECTOR,FR BUMPER CORNER,R	Front body (88 1/2 MODEL)
71742-83301-000	Pont parechoc cg	Front body (88 1/2 MODEL)
71742-83302-000	PROTECTOR,FR BUMPER CORNER,L	Front body (88 1/2 MODEL)
72111-70A10-2DE	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2DF	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2DG	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2DH	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2DJ	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2DK	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2DM	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2VR	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2VS	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-2VT	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-7HS	Grille, front	Front body (88 1/2 MODEL)
72111-70A10-8KJ	Grille, front	Front body (88 1/2 MODEL)
72111-70A11-000	Grille,front	Front body (88 1/2 MODEL)
72115-70A02-000	NET,FR GRILLE	Front body (88 1/2 MODEL)
72411-70A00-000	Member, front panel	Front body (88 1/2 MODEL)
72411-82C00-000	MEMBER,FR PANEL	Front body (88 1/2 MODEL)
72441-80002-000	Film, hood cushion	Front body (88 1/2 MODEL)
72878-57C00-000	PROTECTOR	Front body (88 1/2 MODEL)
77130-83812-07B	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-18J	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-20V	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-21L	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-24U	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-26U	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-27G	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-37T	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-38C	Extension, body side rh	Front body (88 1/2 MODEL)
77130-83812-799	EXTENSION SET,BODY SIDE	Front body (88 1/2 MODEL)
77140-83812-07B	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-18J	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-20V	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-21L	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-24U	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-26U	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-27G	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-37T	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-38C	Extension, body side lh	Front body (88 1/2 MODEL)
77140-83812-799	EXTENSION,BODY SIDE	Front body (88 1/2 MODEL)
77811-83000-8GS	EMBLEM,TOP	Front body (88 1/2 MODEL)
77811-83001-8GS	Emblem,top	Front body (88 1/2 MODEL)
77815-83060-000	EMBLEM,SIDE	Front body (88 1/2 MODEL)
77819-83001-000	EMBLEM,JX	Front body (88 1/2 MODEL)
89910-70A40-000	JACK ASSY	Front body (88 1/2 MODEL)
89913-77EV0-000	ジャッキアッシ	Front body (88 1/2 MODEL)
89913-77EV1-000	JACK COMP	Front body (88 1/2 MODEL)
89913-77EVV-000	JACK ASSY	Front body (88 1/2 MODEL)
