SJ413

Suzuki SAMURAI · 3,383 parts · 106 categories
SJ413 ×

← Back to categories

3,383 items

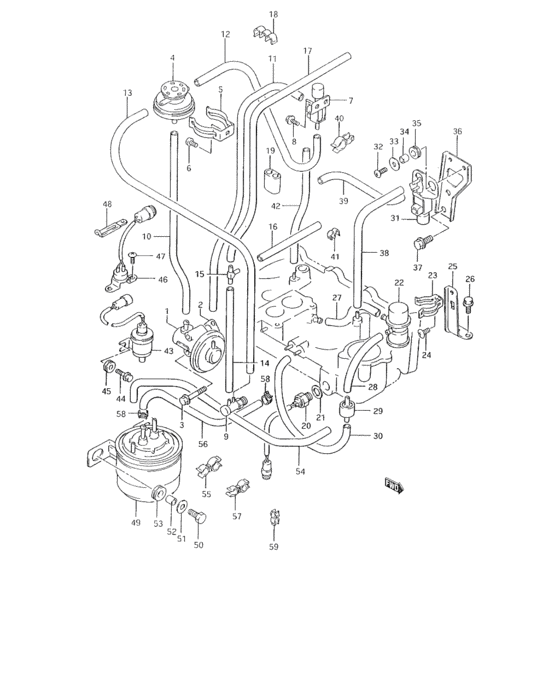

Emission control system (EMISSION CONTROL SYSTEM) 92
#OEMPart name
1 18111-83000-000 Valve, egr
1 18111-80C00-000 VALVE,EGR
2 18529-78101-000 ガスケット,EGRバルブ
2 18529-60A00-000 GASKET,EGR VALVE
3 01537-06453-000 ボルト
3 01550-0645A-000 Bolt
4 18112-83010-000 MODULATOR ASSY,EGR
5 18589-78101-000 Clamp, modulator
6 02142-06103-000 Screw
6 02142-0610B-000 SCREW - Stopper, cl rlse cam shaft
6 02142-0610A-000 SCREW
7 18117-83000-000 VALVE ASSY,3WAY SOLENOID
8 01517-06103-000 BOLT 6X10
8 01550-0610A-000 Bolt
8 01550-0610B-000 Bolt
9 18550-73031-000 Valve, bvs
9 18122-80C01-000 VALVE,BVS
10 18471-83020-000 Hose, egr to modulator
10 09352-50111-600 HOSE(5X11X600) - Hose, water air bleed (5x11x600)
10 09352-50111-300 Hose, modulator
11 09343-03103-000 ホース,#15/3.5X7.5X340
11 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
11 09355-35006-601 Hose(3.5X7.5X601)
12 09343-03096-000 ホース,#8/3.5X7.5X170
13 09343-03114-000 ホース,#19/3.5X7.5X310
14 09343-03048-000 ホース,#17/3.5X7.5X115
15 09367-04002-000 CONNECTOR
16 09343-03087-000 ホース,#2/3.5X7.5X50
18 09408-00034-000 クリップ
18 09408-00035-000 CLIP - Clamp
19 09329-07002-000 Cushion, vacuum hose
20 18212-82001-000 SWITCH,THERMAL
21 09168-12016-000 GASKET(12.2X21X0.8)
22 18119-80400-000 VALVE ASSY,MIXTURE CONTROL
23 18438-83000-000 Clamp, mcv
23 18595-82150-000 CLAMP,VACUUM SW
25 18419-83000-000 Bracket, mcv
25 18419-8300V-000 BRACKET,MCV
26 01517-06123-000 Bolt
26 01550-0612B-000 Bolt - Bolt, clamp
26 01550-0612A-000 Bolt
27 18473-83020-000 Hose, mcv to intake
27 09355-54115-600 HOSE(5.4X11.4X600) - Hose, vacuum
27 09354-54115-300 ホース,5.4X11.4X300
28 09343-03020-000 ホース,#10/3.5X7.5X30
29 18115-83000-000 Jet(800cc)
31 18550-82021-000 VALVE ASSY,3WAY SOLENOID
32 02112-06143-000 Screw - 6x16
32 02112-0616B-000 SCREW
33 09160-06086-000 Washer, 6.5x20x - Washer (6.5x20x1)
33 09160-06077-000 WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)
34 09180-06106-000 SPACER(6.8X10X7)
35 09308-10004-000 GROMMET
36 18417-83000-000 Bracket, vsv
36 18417-61A00-000 BRACKET,VSV
37 01534-10163-000 New Genuine Part
37 01550-1016A-000 Bolt - Plug, oil gallery
37 01550-1016B-000 Bolt - Plug, oil gallery
38 09343-03097-000 ホース,#26/3.5X7.5X180
39 09343-03035-000 ホース,#12/3.5X7.5X370
40 09408-00060-000 CLAMP
41 09408-00033-000 CLAMP
42 09343-03093-000 ホース,#4/3.5X7.5X130
43 18610-83000-000 Compensator, high altitude
44 01517-06163-000 Bolt
44 01550-0616B-000 Bolt
44 01550-0616A-000 Bolt
45 09320-06013-000 Cushion
46 18620-83000-000 Switch, thermal engine room
47 02142-05103-000 Screw 5x10
47 02142-0510B-000 SCREW - Bolt
48 09404-05401-000 Clamp
48 09404-06429-000 CLAMP(L:45) - Clamp, coil lead wire
49 18560-83001-000 Canister assy
50 01107-08163-000 Bolt m8x1.25x16
50 01500-0816B-000 Bolt
50 01500-08163-000 Bolt
51 09160-08075-000 ワッシャ,8.2X26X1.6
51 09160-08151-000 WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6)
52 09180-08092-000 New Genuine Part
53 09320-12011-000 CUSHION
53 09320-12090-000 Cushion(11.8X25X7.5)
54 18474-83000-000 Hose, carburetor purge
55 09408-00081-000 Clamp
55 09408-00080-000 CLAMP
56 09354-35753-15A Hose, canister purge air
56 09355-35755-00B HOSE(3.5X7.5X2000) - Hose, vacuum (3.5x7.5x2000)
56 09355-35007-00B Hose(3.5X7.5X2000)
57 09408-00056-000 CLIP
58 09401-11407-000 CLIP
58 09401-11415-000 CLIP
59 09408-00067-000 CLIP
