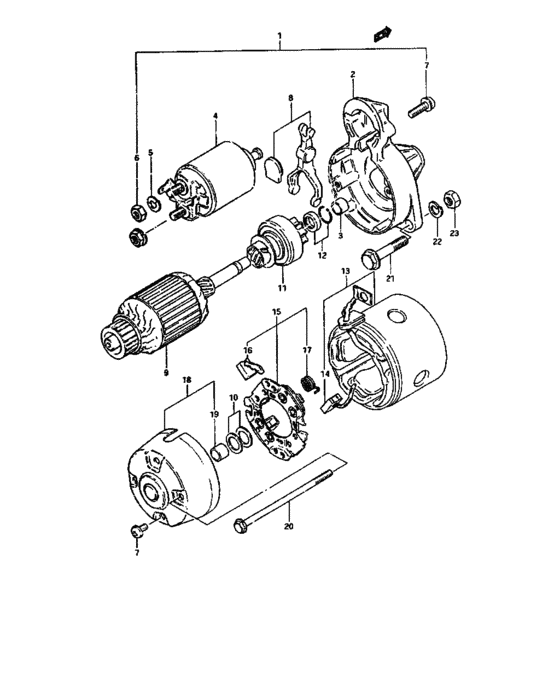

Starting motor (Finland)
34
| # | OEM | Part name |
|---|
| 1 |
31100-80091-000 |
Motor assy, starting |
| 1 |
31100-80X51-REM |
Starting motor |
| 1 |
31100-80X51-000 |
MOTOR ASSY,STARTING |
| 2 |
31151-80091-000 |
Bracket, front |
| 2 |
31151-80092-000 |
ブラケット,フロント |
| 3 |
31152-79030-000 |
BEARING,FRONT |
| 4 |
31220-80090-000 |
Switch assy |
| 4 |
31220-84030-000 |
SWITCH ASSY |
| 5 |
08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
| 5 |
08321-0108B-000 |
WASHER,LOCK |
| 5 |
08321-0108A-000 |
WASHER,LOCK |
| 6 |
08310-12086-000 |
NUT |
| 6 |
08310-0008A-000 |
NUT - Nut, bead stopper |
| 6 |
08310-0008B-000 |
NUT |
| 7 |
31136-79030-000 |
SCREW ASSY |
| 7 |
31175-79030-000 |
Screw Set |
| 8 |
31191-82030-000 |
LEVER ASSY |
| 9 |
31311-62030-000 |
Armature |
| 10 |
31361-79030-000 |
WASHER |
| 11 |
31320-79030-000 |
CLUTCH ASSY |
| 12 |
31313-80090-000 |
RING SET |
| 13 |
31110-82030-000 |
Yoke assy |
| 13 |
31110-83030-000 |
YOKE ASSY |
| 14 |
31131-80090-000 |
BRUSH(+) |
| 15 |
31173-79030-000 |
HOLDER BRUSH |
| 15 |
31173-82130-000 |
HOLDER ASSY,BRUSH |
| 16 |
31132-80090-000 |
BRUSH(-) |
| 17 |
31135-72030-000 |
SPRING BRUSH |
| 18 |
31170-82030-000 |
Housing, commutator end |
| 19 |
31172-79030-000 |
BUSH |
| 20 |
31261-79030-000 |
ボルト |
| 20 |
31261-82130-000 |
Bolt |
| 21 |
01517-08506-000 |
Bolt 8x50 |
| 21 |
01550-0850B-000 |
Bolt |
| OEM |
Part name |
Category |
| 01517-08506-000 |
Bolt 8x50 |
Starting motor (Finland) |
| 01550-0850B-000 |
Bolt |
Starting motor (Finland) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Starting motor (Finland) |
| 08310-0008B-000 |
NUT |
Starting motor (Finland) |
| 08310-12086-000 |
NUT |
Starting motor (Finland) |
| 08321-0108A-000 |
WASHER,LOCK |
Starting motor (Finland) |
| 08321-0108B-000 |
WASHER,LOCK |
Starting motor (Finland) |
| 08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
Starting motor (Finland) |
| 31100-80091-000 |
Motor assy, starting |
Starting motor (Finland) |
| 31100-80X51-000 |
MOTOR ASSY,STARTING |
Starting motor (Finland) |
| 31100-80X51-REM |
Starting motor |
Starting motor (Finland) |
| 31110-82030-000 |
Yoke assy |
Starting motor (Finland) |
| 31110-83030-000 |
YOKE ASSY |
Starting motor (Finland) |
| 31131-80090-000 |
BRUSH(+) |
Starting motor (Finland) |
| 31132-80090-000 |
BRUSH(-) |
Starting motor (Finland) |
| 31135-72030-000 |
SPRING BRUSH |
Starting motor (Finland) |
| 31136-79030-000 |
SCREW ASSY |
Starting motor (Finland) |
| 31151-80091-000 |
Bracket, front |
Starting motor (Finland) |
| 31151-80092-000 |
ブラケット,フロント |
Starting motor (Finland) |
| 31152-79030-000 |
BEARING,FRONT |
Starting motor (Finland) |
| 31170-82030-000 |
Housing, commutator end |
Starting motor (Finland) |
| 31172-79030-000 |
BUSH |
Starting motor (Finland) |
| 31173-79030-000 |
HOLDER BRUSH |
Starting motor (Finland) |
| 31173-82130-000 |
HOLDER ASSY,BRUSH |
Starting motor (Finland) |
| 31175-79030-000 |
Screw Set |
Starting motor (Finland) |
| 31191-82030-000 |
LEVER ASSY |
Starting motor (Finland) |
| 31220-80090-000 |
Switch assy |
Starting motor (Finland) |
| 31220-84030-000 |
SWITCH ASSY |
Starting motor (Finland) |
| 31261-79030-000 |
ボルト |
Starting motor (Finland) |
| 31261-82130-000 |
Bolt |
Starting motor (Finland) |
| 31311-62030-000 |
Armature |
Starting motor (Finland) |
| 31313-80090-000 |
RING SET |
Starting motor (Finland) |
| 31320-79030-000 |
CLUTCH ASSY |
Starting motor (Finland) |
| 31361-79030-000 |
WASHER |
Starting motor (Finland) |
