SJ410W

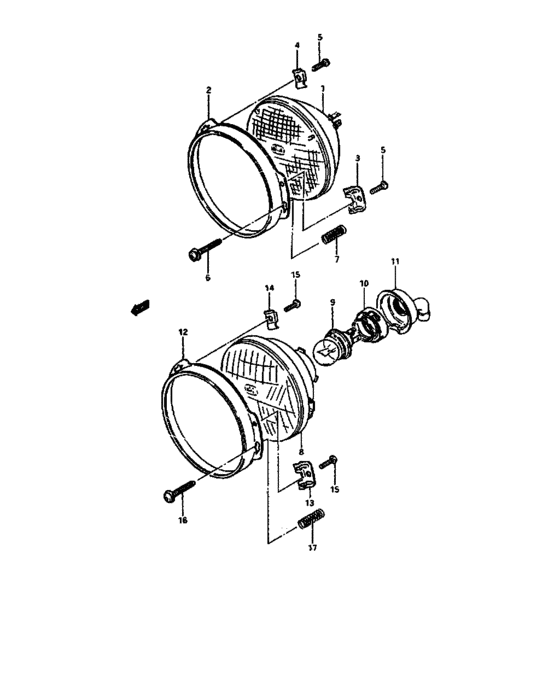

Headlamp (HEADLAMP) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 35121-80000-000 | Unit - 12v,60/50w |
| 1 | 35121-70A01-000 | UNIT,LAMP |
| 1 | 35121-51032-000 | ユニット,ヘッドランプ |
| 1 | 35121-83021-000 | UNIT,LAMP |
| 2 | 35131-64031-000 | RIM,HEADLAMP |
| 3 | 35132-72600-000 | PLATE,NO.2 |
| 4 | 35136-51030-000 | PLATE,NO.3 |
| 5 | 02112-04088-000 | Screw |
| 5 | 02112-04087-000 | SCREW |
| 6 | 35151-75100-000 | Screw |
| 6 | 09122-45001-000 | SCREW(5X45) |
| 7 | 35154-51030-000 | スプリング |
| 7 | 35154-80C01-000 | SPRING,HEADLAMP |
| 8 | 35121-72600-000 | UNIT,HEADLAMP |
| 8 | 35121-73040-000 | Lamp unit,head |
| 8 | 35121-78400-000 | Lamp unit head |
| 9 | 09471-12049-000 | Bulb (12v,45/40w) |
| 9 | 09471-12048-000 | BULB(12V45/40W) - Bulb (12v,45/40w) |
| 10 | 35136-34670-000 | SETTER,BULB |
| 11 | 35179-72600-000 | COVER,HEADLAMP BULB |
| 14 | 35136-72600-000 | PLATE,NO.3 |
| 17 | 35154-77000-000 | Spring |
| OEM | Part name | Category |
|---|---|---|
| 02112-04087-000 | SCREW | Headlamp (HEADLAMP) |
| 02112-04088-000 | Screw | Headlamp (HEADLAMP) |
| 09122-45001-000 | SCREW(5X45) | Headlamp (HEADLAMP) |
| 09471-12048-000 | BULB(12V45/40W) - Bulb (12v,45/40w) | Headlamp (HEADLAMP) |
| 09471-12049-000 | Bulb (12v,45/40w) | Headlamp (HEADLAMP) |
| 35121-51032-000 | ユニット,ヘッドランプ | Headlamp (HEADLAMP) |
| 35121-70A01-000 | UNIT,LAMP | Headlamp (HEADLAMP) |
| 35121-72600-000 | UNIT,HEADLAMP | Headlamp (HEADLAMP) |
| 35121-73040-000 | Lamp unit,head | Headlamp (HEADLAMP) |
| 35121-78400-000 | Lamp unit head | Headlamp (HEADLAMP) |
| 35121-80000-000 | Unit - 12v,60/50w | Headlamp (HEADLAMP) |
| 35121-83021-000 | UNIT,LAMP | Headlamp (HEADLAMP) |
| 35131-64031-000 | RIM,HEADLAMP | Headlamp (HEADLAMP) |
| 35132-72600-000 | PLATE,NO.2 | Headlamp (HEADLAMP) |
| 35136-34670-000 | SETTER,BULB | Headlamp (HEADLAMP) |
| 35136-51030-000 | PLATE,NO.3 | Headlamp (HEADLAMP) |
| 35136-72600-000 | PLATE,NO.3 | Headlamp (HEADLAMP) |
| 35151-75100-000 | Screw | Headlamp (HEADLAMP) |
| 35154-51030-000 | スプリング | Headlamp (HEADLAMP) |
| 35154-77000-000 | Spring | Headlamp (HEADLAMP) |
| 35154-80C01-000 | SPRING,HEADLAMP | Headlamp (HEADLAMP) |
| 35179-72600-000 | COVER,HEADLAMP BULB | Headlamp (HEADLAMP) |
