SJ410W

Suzuki SAMURAI · 3,130 parts · 105 categories

3,130 items

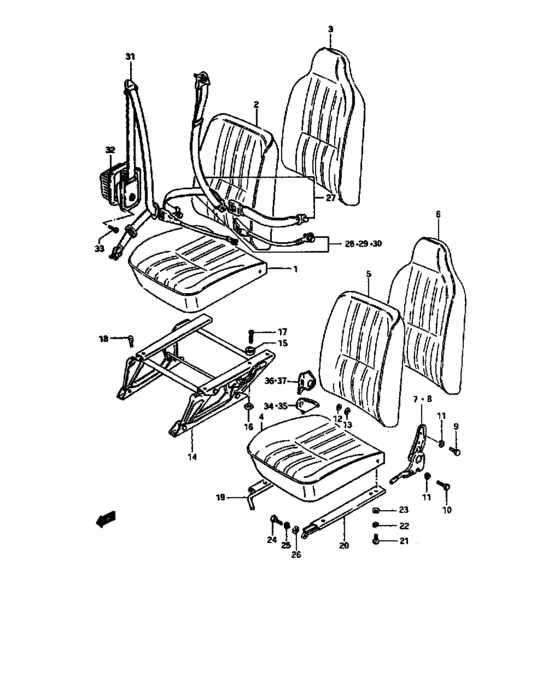

Front seat (FRONT SEAT) 73

#	OEM	Part name
1	85101-80031-80R	Cushion assy, front rh
1	09306-08016-000	BUSH
1	09306-08003-000	Bush
1	85101-80031-95D	Cushion assy, front rh
1	85101-80061-81A	Cushion assy, front rh
1	85101-80440-81A	Cushion assy, front rh
1	85101-80061-95V	Cushion assy, front rh
2	85301-80033-80R	Back assy, front rh
2	85301-80053-95D	Back assy, front rh
3	85301-80080-81A	Back assy, front rh
3	85301-80080-95V	Back assy, front rh
4	85102-80031-80R	Cushion assy, front lh
4	85102-80031-95D	Cushion assy, front lh
4	85102-80061-81A	Cushion assy, front lh
4	85102-80440-81A	Cushion assy, front lh
4	85102-80061-95V	Cushion assy, front lh
5	85302-80033-80R	Back assy, front lh
5	85302-80053-95D	Back assy, front lh
6	85302-80080-81A	Back assy, front lh
6	85302-80080-95V	Back assy, front lh
7	85210-80132-281	Reclining assy, rh
8	85710-80132-281	Reclining assy, lh
9	01107-08168-000	Bolt
9	01500-0816B-000	Bolt
10	01107-08308-000	Bolt
10	01500-08307-000	Bolt
11	08321-21088-000	Lock washer
11	08321-01087-000	WASHER,LOCK - Washer, lock
12	09161-08006-000	WASHER(8X14X3)
13	08332-11068-000	E ring
13	08332-1106B-000	E RING - Circlip
13	08332-1106A-000	E RING - E ring, pinion
14	86701-80102-000	Walkin assy
14	86701-80103-000	Wak in assy
15	86727-80100-000	Cushion, upper frame
16	86728-80100-000	Stopper, rear leg
17	03241-05128-000	Screw
17	03241-0512A-000	SCREW
18	09321-06008-000	CUSHION - Cap, fuel tank upper rear
19	86601-80132-000	Rail assy, left seat rh
19	86601-80134-000	RAIL ASSY,FR SEAT SLIDER,R
20	86602-80132-000	Rail assy, left seat lh
20	86602-80133-000	RAIL ASSY,FR SEAT SLIDE,L
21	01107-06166-000	Bolt
21	01500-0616A-000	Bolt
22	08321-21066-000	Lock washer
22	08321-0106A-000	WASHER,LOCK
23	08322-21066-000	Washer
23	08322-0106B-000	WASHER
24	01107-08166-000	Bolt m8x1.25x16
25	08321-21086-000	Wsherlck8.2x15.2x1.6
25	08321-0108B-000	WASHER,LOCK
25	08321-0108A-000	WASHER,LOCK
26	08322-11086-000	Washer
26	08322-0108B-000	WASHER
26	08322-0108A-000	WASHER
27	84901-80110-382	Belt assy, front seat
27	84901-80111-382	BELT ASSY,FR SEAT
28	84901-80100-382	Belt assy, front seat
29	84901-80170-382	Belt assy, seat rh
30	84902-80170-382	Belt assy, seat lh
31	84901-80161-382	Belt assy, front seat
31	84901-80121-382	Belt assy, front seat
31	84901-80123-382	New Genuine Part
31	84901-80131-382	Belt assy, front seat
32	84924-80130-000	COVER,FR SEAT BELT
33	02142-06125-000	Screw
33	02142-0612B-000	SCREW
33	02142-0612A-000	SCREW
34	85291-80240-000	Cover, seat cushion highe rh
35	85791-80240-000	Cover, seat cushion hinge lh
36	85295-80240-000	Cover, seat back hinge rh
37	85795-80240-000	Cover, seat back hinge lh

OEM	Part name	Category
01107-06166-000	Bolt	Front seat (FRONT SEAT)
01107-08166-000	Bolt m8x1.25x16	Front seat (FRONT SEAT)
01107-08168-000	Bolt	Front seat (FRONT SEAT)
01107-08308-000	Bolt	Front seat (FRONT SEAT)
01500-0616A-000	Bolt	Front seat (FRONT SEAT)
01500-0816B-000	Bolt	Front seat (FRONT SEAT)
01500-08307-000	Bolt	Front seat (FRONT SEAT)
02142-06125-000	Screw	Front seat (FRONT SEAT)
02142-0612A-000	SCREW	Front seat (FRONT SEAT)
02142-0612B-000	SCREW	Front seat (FRONT SEAT)
03241-05128-000	Screw	Front seat (FRONT SEAT)
03241-0512A-000	SCREW	Front seat (FRONT SEAT)
08321-0106A-000	WASHER,LOCK	Front seat (FRONT SEAT)
08321-01087-000	WASHER,LOCK - Washer, lock	Front seat (FRONT SEAT)
08321-0108A-000	WASHER,LOCK	Front seat (FRONT SEAT)
08321-0108B-000	WASHER,LOCK	Front seat (FRONT SEAT)
08321-21066-000	Lock washer	Front seat (FRONT SEAT)
08321-21086-000	Wsherlck8.2x15.2x1.6	Front seat (FRONT SEAT)
08321-21088-000	Lock washer	Front seat (FRONT SEAT)
08322-0106B-000	WASHER	Front seat (FRONT SEAT)
08322-0108A-000	WASHER	Front seat (FRONT SEAT)
08322-0108B-000	WASHER	Front seat (FRONT SEAT)
08322-11086-000	Washer	Front seat (FRONT SEAT)
08322-21066-000	Washer	Front seat (FRONT SEAT)
08332-11068-000	E ring	Front seat (FRONT SEAT)
08332-1106A-000	E RING - E ring, pinion	Front seat (FRONT SEAT)
08332-1106B-000	E RING - Circlip	Front seat (FRONT SEAT)
09161-08006-000	WASHER(8X14X3)	Front seat (FRONT SEAT)
09306-08003-000	Bush	Front seat (FRONT SEAT)
09306-08016-000	BUSH	Front seat (FRONT SEAT)
09321-06008-000	CUSHION - Cap, fuel tank upper rear	Front seat (FRONT SEAT)
84901-80100-382	Belt assy, front seat	Front seat (FRONT SEAT)
84901-80110-382	Belt assy, front seat	Front seat (FRONT SEAT)
84901-80111-382	BELT ASSY,FR SEAT	Front seat (FRONT SEAT)
84901-80121-382	Belt assy, front seat	Front seat (FRONT SEAT)
84901-80123-382	New Genuine Part	Front seat (FRONT SEAT)
84901-80131-382	Belt assy, front seat	Front seat (FRONT SEAT)
84901-80161-382	Belt assy, front seat	Front seat (FRONT SEAT)
84901-80170-382	Belt assy, seat rh	Front seat (FRONT SEAT)
84902-80170-382	Belt assy, seat lh	Front seat (FRONT SEAT)
84924-80130-000	COVER,FR SEAT BELT	Front seat (FRONT SEAT)
85101-80031-80R	Cushion assy, front rh	Front seat (FRONT SEAT)
85101-80031-95D	Cushion assy, front rh	Front seat (FRONT SEAT)
85101-80061-81A	Cushion assy, front rh	Front seat (FRONT SEAT)
85101-80061-95V	Cushion assy, front rh	Front seat (FRONT SEAT)
85101-80440-81A	Cushion assy, front rh	Front seat (FRONT SEAT)
85102-80031-80R	Cushion assy, front lh	Front seat (FRONT SEAT)
85102-80031-95D	Cushion assy, front lh	Front seat (FRONT SEAT)
85102-80061-81A	Cushion assy, front lh	Front seat (FRONT SEAT)
85102-80061-95V	Cushion assy, front lh	Front seat (FRONT SEAT)
85102-80440-81A	Cushion assy, front lh	Front seat (FRONT SEAT)
85210-80132-281	Reclining assy, rh	Front seat (FRONT SEAT)
85291-80240-000	Cover, seat cushion highe rh	Front seat (FRONT SEAT)
85295-80240-000	Cover, seat back hinge rh	Front seat (FRONT SEAT)
85301-80033-80R	Back assy, front rh	Front seat (FRONT SEAT)
85301-80053-95D	Back assy, front rh	Front seat (FRONT SEAT)
85301-80080-81A	Back assy, front rh	Front seat (FRONT SEAT)
85301-80080-95V	Back assy, front rh	Front seat (FRONT SEAT)
85302-80033-80R	Back assy, front lh	Front seat (FRONT SEAT)
85302-80053-95D	Back assy, front lh	Front seat (FRONT SEAT)
85302-80080-81A	Back assy, front lh	Front seat (FRONT SEAT)
85302-80080-95V	Back assy, front lh	Front seat (FRONT SEAT)
85710-80132-281	Reclining assy, lh	Front seat (FRONT SEAT)
85791-80240-000	Cover, seat cushion hinge lh	Front seat (FRONT SEAT)
85795-80240-000	Cover, seat back hinge lh	Front seat (FRONT SEAT)
86601-80132-000	Rail assy, left seat rh	Front seat (FRONT SEAT)
86601-80134-000	RAIL ASSY,FR SEAT SLIDER,R	Front seat (FRONT SEAT)
86602-80132-000	Rail assy, left seat lh	Front seat (FRONT SEAT)
86602-80133-000	RAIL ASSY,FR SEAT SLIDE,L	Front seat (FRONT SEAT)
86701-80102-000	Walkin assy	Front seat (FRONT SEAT)
86701-80103-000	Wak in assy	Front seat (FRONT SEAT)
86727-80100-000	Cushion, upper frame	Front seat (FRONT SEAT)
86728-80100-000	Stopper, rear leg	Front seat (FRONT SEAT)

Source: Public OEM parts-catalog data
Variants: 2 / 20
Category: 105
Collected: 2026-08-01
