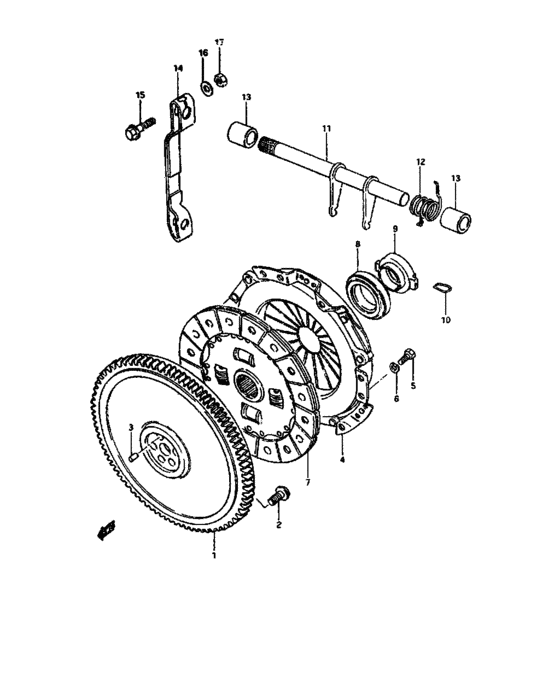

Clutch (CLUTCH)
33
| # | OEM | Part name |
|---|
| 1 |
12620-73000-000 |
Flywheel |
| 1 |
12620-73003-000 |
FLYWHEEL |
| 2 |
09103-10011-000 |
Bolt, flywheel |
| 2 |
09103-10097-000 |
BOLT(10X17) |
| 3 |
04221-06129-000 |
PIN |
| 4 |
22100-80020-000 |
Cover assy, clutch |
| 4 |
22100-80021-000 |
COVER ASSY,CLUTCH |
| 5 |
01107-08166-000 |
Bolt m8x1.25x16 |
| 5 |
01500-0816B-000 |
Bolt |
| 6 |
08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
| 6 |
08321-0108B-000 |
WASHER,LOCK |
| 6 |
08321-0108A-000 |
WASHER,LOCK |
| 7 |
22400-80020-000 |
Disk, clutch |
| 7 |
22400-85141-000 |
DISC,CLUTCH |
| 8 |
09269-38001-000 |
BEARING(38.1X67X16.5) |
| 9 |
23161-65002-000 |
RETAINER,BEARING |
| 10 |
09448-12005-000 |
SPRING |
| 11 |
23260-72003-000 |
SHAFT,CLUTCH RELEASE |
| 12 |
09448-20003-000 |
Spring |
| 12 |
09448-20008-XC0 |
SPRING |
| 13 |
09300-14010-000 |
Bush, shaft - Od:22 |
| 13 |
09300-14017-000 |
BUSH(14X22X15) |
| 14 |
23266-80000-000 |
Arm, clutch release |
| 14 |
23266-77302-000 |
ARM,CLUTCH RELEASE |
| 15 |
01517-08356-000 |
Bolt, front |
| 15 |
01550-0835B-000 |
Bolt |
| 15 |
01550-0835A-000 |
Bolt |
| 16 |
08322-11086-000 |
Washer |
| 16 |
08322-0108B-000 |
WASHER |
| 16 |
08322-0108A-000 |
WASHER |
| 17 |
08310-12086-000 |
NUT |
| 17 |
08310-0008A-000 |
NUT - Nut, bead stopper |
| 17 |
08310-0008B-000 |
NUT |
| OEM |
Part name |
Category |
| 01107-08166-000 |
Bolt m8x1.25x16 |
Clutch (CLUTCH) |
| 01500-0816B-000 |
Bolt |
Clutch (CLUTCH) |
| 01517-08356-000 |
Bolt, front |
Clutch (CLUTCH) |
| 01550-0835A-000 |
Bolt |
Clutch (CLUTCH) |
| 01550-0835B-000 |
Bolt |
Clutch (CLUTCH) |
| 04221-06129-000 |
PIN |
Clutch (CLUTCH) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Clutch (CLUTCH) |
| 08310-0008B-000 |
NUT |
Clutch (CLUTCH) |
| 08310-12086-000 |
NUT |
Clutch (CLUTCH) |
| 08321-0108A-000 |
WASHER,LOCK |
Clutch (CLUTCH) |
| 08321-0108B-000 |
WASHER,LOCK |
Clutch (CLUTCH) |
| 08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
Clutch (CLUTCH) |
| 08322-0108A-000 |
WASHER |
Clutch (CLUTCH) |
| 08322-0108B-000 |
WASHER |
Clutch (CLUTCH) |
| 08322-11086-000 |
Washer |
Clutch (CLUTCH) |
| 09103-10011-000 |
Bolt, flywheel |
Clutch (CLUTCH) |
| 09103-10097-000 |
BOLT(10X17) |
Clutch (CLUTCH) |
| 09269-38001-000 |
BEARING(38.1X67X16.5) |
Clutch (CLUTCH) |
| 09300-14010-000 |
Bush, shaft - Od:22 |
Clutch (CLUTCH) |
| 09300-14017-000 |
BUSH(14X22X15) |
Clutch (CLUTCH) |
| 09448-12005-000 |
SPRING |
Clutch (CLUTCH) |
| 09448-20003-000 |
Spring |
Clutch (CLUTCH) |
| 09448-20008-XC0 |
SPRING |
Clutch (CLUTCH) |
| 12620-73000-000 |
Flywheel |
Clutch (CLUTCH) |
| 12620-73003-000 |
FLYWHEEL |
Clutch (CLUTCH) |
| 22100-80020-000 |
Cover assy, clutch |
Clutch (CLUTCH) |
| 22100-80021-000 |
COVER ASSY,CLUTCH |
Clutch (CLUTCH) |
| 22400-80020-000 |
Disk, clutch |
Clutch (CLUTCH) |
| 22400-85141-000 |
DISC,CLUTCH |
Clutch (CLUTCH) |
| 23161-65002-000 |
RETAINER,BEARING |
Clutch (CLUTCH) |
| 23260-72003-000 |
SHAFT,CLUTCH RELEASE |
Clutch (CLUTCH) |
| 23266-77302-000 |
ARM,CLUTCH RELEASE |
Clutch (CLUTCH) |
| 23266-80000-000 |
Arm, clutch release |
Clutch (CLUTCH) |
