Search › Model › SJ410P
SJ410P

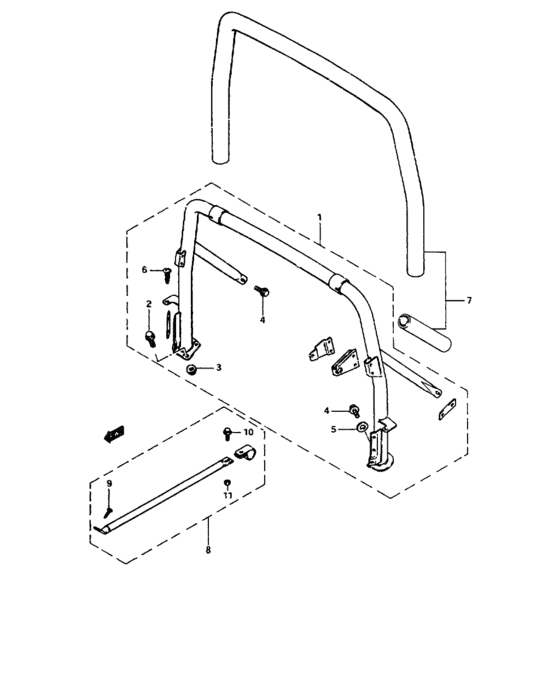

Roll bar (O, Q) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 93600-80861-000 | Roll bar set |
| 1 | 99980-80861-000 | New Genuine Part |
| 2 | 01517-08165-000 | Bolt, side |
| 2 | 01550-0816B-000 | Bolt |
| 2 | 01550-0816A-000 | Bolt - Bolt, rear |
| 3 | 08316-16086-000 | Nut, reverse lever pivot |
| 3 | 08316-1008B-000 | NUT |
| 4 | 01517-08125-000 | Plug, oil gallery |
| 4 | 01550-0812B-000 | Bolt - Plug, drain |
| 4 | 01550-0812A-000 | Bolt |
| 5 | 09160-08007-000 | Seat washer - Spacer, swivel bracket |
| 5 | 09160-08127-000 | WASHER(8.5X22X2) - Washer, fender front |
| 6 | 09125-08002-000 | スクリュ,8X20 |
| 6 | 09125-08015-XC0 | SCREW(8X20) |
| 7 | 93700-80820-000 | Pad set, roll bar |
| 7 | 99980-80820-000 | New Genuine Part |
| 8 | 78602-80090-000 | Strain set, front window |
| 9 | 03141-06125-000 | New Genuine Part |
| 9 | 03141-0612A-000 | SCREW |
| 10 | 01517-06167-000 | Bolt |
| 10 | 01550-06167-000 | Bolt |
| 11 | 08316-16066-000 | Nut |
| 11 | 08316-1006B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01517-06167-000 | Bolt | Roll bar (O, Q) |
| 01517-08125-000 | Plug, oil gallery | Roll bar (O, Q) |
| 01517-08165-000 | Bolt, side | Roll bar (O, Q) |
| 01550-06167-000 | Bolt | Roll bar (O, Q) |
| 01550-0812A-000 | Bolt | Roll bar (O, Q) |
| 01550-0812B-000 | Bolt - Plug, drain | Roll bar (O, Q) |
| 01550-0816A-000 | Bolt - Bolt, rear | Roll bar (O, Q) |
| 01550-0816B-000 | Bolt | Roll bar (O, Q) |
| 03141-06125-000 | New Genuine Part | Roll bar (O, Q) |
| 03141-0612A-000 | SCREW | Roll bar (O, Q) |
| 08316-1006B-000 | NUT | Roll bar (O, Q) |
| 08316-1008B-000 | NUT | Roll bar (O, Q) |
| 08316-16066-000 | Nut | Roll bar (O, Q) |
| 08316-16086-000 | Nut, reverse lever pivot | Roll bar (O, Q) |
| 09125-08002-000 | スクリュ,8X20 | Roll bar (O, Q) |
| 09125-08015-XC0 | SCREW(8X20) | Roll bar (O, Q) |
| 09160-08007-000 | Seat washer - Spacer, swivel bracket | Roll bar (O, Q) |
| 09160-08127-000 | WASHER(8.5X22X2) - Washer, fender front | Roll bar (O, Q) |
| 78602-80090-000 | Strain set, front window | Roll bar (O, Q) |
| 93600-80861-000 | Roll bar set | Roll bar (O, Q) |
| 93700-80820-000 | Pad set, roll bar | Roll bar (O, Q) |
| 99980-80820-000 | New Genuine Part | Roll bar (O, Q) |
| 99980-80861-000 | New Genuine Part | Roll bar (O, Q) |
