SJ410P

Suzuki SAMURAI · 3,213 parts · 105 categories

3,213 items

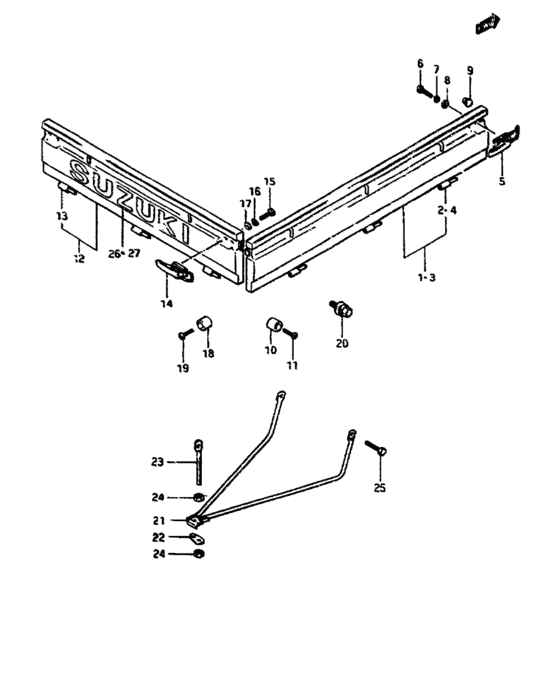

Rear gate and side gate (K) 45

#	OEM	Part name
1	67100-80201-000	Panel assy, side gate rh
1	67100-80202-000	Panel assy, side gate rh
2	73590-67100-000	Hinge, rh
2	67170-85090-000	HINGE,SIDE GATE
2	67170-85010-000	Hinge, rear gate
3	67400-80201-000	Panel assy, side gate lh
3	67400-80242-000	Panel assy, side gate lh
3	67400-80202-000	Panel assy, side gate lh
4	73690-67100-000	Hinge, lh
4	67470-85090-000	Hinge,side gate
4	67470-85010-000	Hinge, side gate lh
5	73910-52002-000	HANDLE,GATE LOCK
6	01107-06163-000	Bolt m6x1x16
6	01500-0616A-000	Bolt
7	08321-21063-000	Lock washer
7	08321-0106A-000	WASHER,LOCK
8	08322-21066-000	Washer
8	08322-0106B-000	WASHER
9	09321-08005-000	CUSHION - Cushion, fuel hose guard
9	09321-08025-000	Cushion
10	09320-06003-000	CUSHION
11	02142-05203-000	Screw - Screw, rear
11	02142-0520B-000	SCREW - Screw, rear
12	73700-79000-000	Panel assy, rear gate
12	67700-85080-000	GATE ASSY,RR
12	67700-85200-000	Panel assy, rear gate
14	72820-73003-000	Handle, rear gate lock
15	01107-06203-000	Jolt - Bolt, front
15	01500-0620A-000	Bolt
17	08322-21063-000	Washer
18	09320-06011-000	CUSHION
18	09320-06012-000	CUSHION - Cushion, release lever
20	09103-06076-000	Bolt,6x16
21	72860-80201-000	Carrier, spare tire
22	57251-67600-000	PLATE,SPARE TIRE CARRIER
23	57241-72602-000	BOLT,SPARE TIRE CARRIER
24	08310-12106-000	Nut
24	08310-0010B-000	NUT
24	08310-0010A-000	NUT
25	01107-08166-000	Bolt m8x1.25x16
25	01500-0816B-000	Bolt
26	86831-79050-064	Emblem, suzuki mark - White
26	86831-79050-291	Emblem, suzuki mark
27	77841-85200-064	Emblem, suzuki mark - White
27	77841-85200-019	EMBLEM,SUZUKI MARK SUPPLY

OEM	Part name	Category
01107-06163-000	Bolt m6x1x16	Rear gate and side gate (K)
01107-06203-000	Jolt - Bolt, front	Rear gate and side gate (K)
01107-08166-000	Bolt m8x1.25x16	Rear gate and side gate (K)
01500-0616A-000	Bolt	Rear gate and side gate (K)
01500-0620A-000	Bolt	Rear gate and side gate (K)
01500-0816B-000	Bolt	Rear gate and side gate (K)
02142-05203-000	Screw - Screw, rear	Rear gate and side gate (K)
02142-0520B-000	SCREW - Screw, rear	Rear gate and side gate (K)
08310-0010A-000	NUT	Rear gate and side gate (K)
08310-0010B-000	NUT	Rear gate and side gate (K)
08310-12106-000	Nut	Rear gate and side gate (K)
08321-0106A-000	WASHER,LOCK	Rear gate and side gate (K)
08321-21063-000	Lock washer	Rear gate and side gate (K)
08322-0106B-000	WASHER	Rear gate and side gate (K)
08322-21063-000	Washer	Rear gate and side gate (K)
08322-21066-000	Washer	Rear gate and side gate (K)
09103-06076-000	Bolt,6x16	Rear gate and side gate (K)
09320-06003-000	CUSHION	Rear gate and side gate (K)
09320-06011-000	CUSHION	Rear gate and side gate (K)
09320-06012-000	CUSHION - Cushion, release lever	Rear gate and side gate (K)
09321-08005-000	CUSHION - Cushion, fuel hose guard	Rear gate and side gate (K)
09321-08025-000	Cushion	Rear gate and side gate (K)
57241-72602-000	BOLT,SPARE TIRE CARRIER	Rear gate and side gate (K)
57251-67600-000	PLATE,SPARE TIRE CARRIER	Rear gate and side gate (K)
67100-80201-000	Panel assy, side gate rh	Rear gate and side gate (K)
67100-80202-000	Panel assy, side gate rh	Rear gate and side gate (K)
67170-85010-000	Hinge, rear gate	Rear gate and side gate (K)
67170-85090-000	HINGE,SIDE GATE	Rear gate and side gate (K)
67400-80201-000	Panel assy, side gate lh	Rear gate and side gate (K)
67400-80202-000	Panel assy, side gate lh	Rear gate and side gate (K)
67400-80242-000	Panel assy, side gate lh	Rear gate and side gate (K)
67470-85010-000	Hinge, side gate lh	Rear gate and side gate (K)
67470-85090-000	Hinge,side gate	Rear gate and side gate (K)
67700-85080-000	GATE ASSY,RR	Rear gate and side gate (K)
67700-85200-000	Panel assy, rear gate	Rear gate and side gate (K)
72820-73003-000	Handle, rear gate lock	Rear gate and side gate (K)
72860-80201-000	Carrier, spare tire	Rear gate and side gate (K)
73590-67100-000	Hinge, rh	Rear gate and side gate (K)
73690-67100-000	Hinge, lh	Rear gate and side gate (K)
73700-79000-000	Panel assy, rear gate	Rear gate and side gate (K)
73910-52002-000	HANDLE,GATE LOCK	Rear gate and side gate (K)
77841-85200-019	EMBLEM,SUZUKI MARK SUPPLY	Rear gate and side gate (K)
77841-85200-064	Emblem, suzuki mark - White	Rear gate and side gate (K)
86831-79050-064	Emblem, suzuki mark - White	Rear gate and side gate (K)
86831-79050-291	Emblem, suzuki mark	Rear gate and side gate (K)
