Search › Model › SJ410P

SJ410P

Suzuki SAMURAI · 3,213 parts · 105 categories

3,213 items

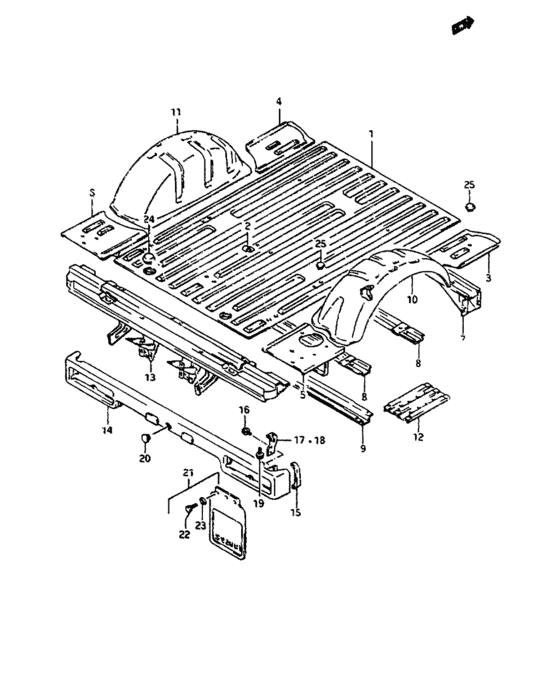

Rear body (W) 38

#	OEM	Part name
1	62110-83210-000	Panel, rear floor
1	62110-83221-000	Panel, rear floor
2	73722-63001-000	HOOK,RR
3	62120-80321-000	PANEL,FLOOR SIDE FRONT,R
4	62130-80321-000	PANEL,FLOOR SIDE FRONT,L
5	62140-80300-000	PANEL,FLOOR SIDE RR RH
6	62150-80300-000	PANEL,FLOOR SIDE RR LH
7	62160-80300-000	Reinforcement, no. 1
7	62160-83210-000	REINFORCEMENT,RR FL NO.1
8	62120-83001-000	Reinforcement, no.2 & 3
9	62180-83211-000	REINFORCEMENT,RR FL NO.3
10	62210-80001-000	Panel, wheel housing rh
10	62211-70A00-000	PANEL,RR WHEEL HSG,R
10	09250-06004-000	CAP(OD:14.5)
10	62210-80002-000	Panel, wheel housing rh
11	62311-80001-000	Panel, wheel housing lh
11	62311-70A00-000	PANEL,RR WHEEL HSG,L
11	62311-80002-000	Panneau roue gauche
12	62191-83300-000	Reinforcement, rear seat
13	62500-80310-000	MEMBER ASSY,RR FL TAIL
14	71810-80111-162	Bumper, rear
14	71810-80111-000	BUMPER,RR
15	71821-80002-000	PAD,REAR BUMPER SIDE
16	01517-06126-000	Bolt m6x1x12
16	01550-0612B-000	Bolt - Bolt, clamp
16	01550-0612A-000	Bolt
17	71821-80300-000	BRACKET BUMPER SIDE
17	71821-80301-000	BRACKET,RR BUMPER SIDE,R
18	71822-80300-000	ブラケット,リヤバンパサイド,レフト
18	71822-80301-000	BRACKET,RR BUMPER SIDE,L
20	09409-09303-000	CAP
21	57600-80813-000	MUD FLAP SET
21	57600-80814-000	FLAP SET,RR
22	01107-06126-000	Bolt 6x12
22	01500-0612A-000	Bolt
23	09160-06027-000	Washer (6.5x20x1.2)
23	09160-06077-000	WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)
24	09250-40002-000	CAP(OD:52)

OEM	Part name	Category
01107-06126-000	Bolt 6x12	Rear body (W)
01500-0612A-000	Bolt	Rear body (W)
01517-06126-000	Bolt m6x1x12	Rear body (W)
01550-0612A-000	Bolt	Rear body (W)
01550-0612B-000	Bolt - Bolt, clamp	Rear body (W)
09160-06027-000	Washer (6.5x20x1.2)	Rear body (W)
09160-06077-000	WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)	Rear body (W)
09250-06004-000	CAP(OD:14.5)	Rear body (W)
09250-40002-000	CAP(OD:52)	Rear body (W)
09409-09303-000	CAP	Rear body (W)
57600-80813-000	MUD FLAP SET	Rear body (W)
57600-80814-000	FLAP SET,RR	Rear body (W)
62110-83210-000	Panel, rear floor	Rear body (W)
62110-83221-000	Panel, rear floor	Rear body (W)
62120-80321-000	PANEL,FLOOR SIDE FRONT,R	Rear body (W)
62120-83001-000	Reinforcement, no.2 & 3	Rear body (W)
62130-80321-000	PANEL,FLOOR SIDE FRONT,L	Rear body (W)
62140-80300-000	PANEL,FLOOR SIDE RR RH	Rear body (W)
62150-80300-000	PANEL,FLOOR SIDE RR LH	Rear body (W)
62160-80300-000	Reinforcement, no. 1	Rear body (W)
62160-83210-000	REINFORCEMENT,RR FL NO.1	Rear body (W)
62180-83211-000	REINFORCEMENT,RR FL NO.3	Rear body (W)
62191-83300-000	Reinforcement, rear seat	Rear body (W)
62210-80001-000	Panel, wheel housing rh	Rear body (W)
62210-80002-000	Panel, wheel housing rh	Rear body (W)
62211-70A00-000	PANEL,RR WHEEL HSG,R	Rear body (W)
62311-70A00-000	PANEL,RR WHEEL HSG,L	Rear body (W)
62311-80001-000	Panel, wheel housing lh	Rear body (W)
62311-80002-000	Panneau roue gauche	Rear body (W)
62500-80310-000	MEMBER ASSY,RR FL TAIL	Rear body (W)
71810-80111-000	BUMPER,RR	Rear body (W)
71810-80111-162	Bumper, rear	Rear body (W)
71821-80002-000	PAD,REAR BUMPER SIDE	Rear body (W)
71821-80300-000	BRACKET BUMPER SIDE	Rear body (W)
71821-80301-000	BRACKET,RR BUMPER SIDE,R	Rear body (W)
71822-80300-000	ブラケット,リヤバンパサイド,レフト	Rear body (W)
71822-80301-000	BRACKET,RR BUMPER SIDE,L	Rear body (W)
73722-63001-000	HOOK,RR	Rear body (W)
