SJ410P

Suzuki SAMURAI · 3,213 parts · 105 categories
SJ410P ×

← Back to categories

3,213 items

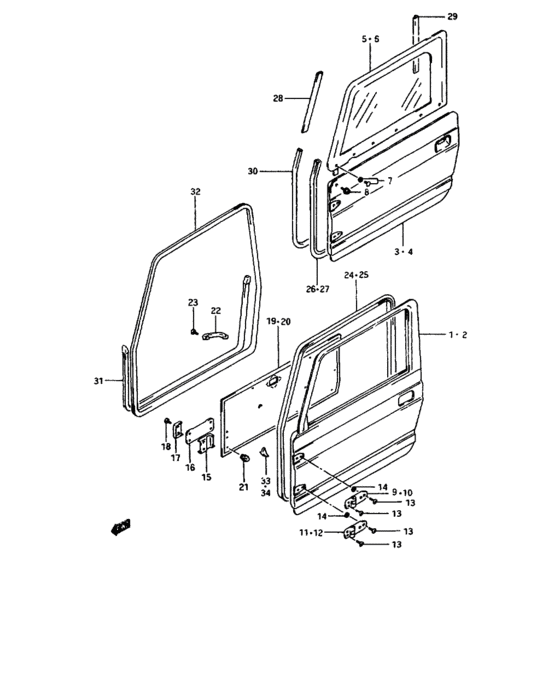

Front door (FRONT DOOR) 74
#OEMPart name
1 68001-80133-000 Panel, front door rh
1 03111-0625A-000 SCREW
1 03241-0612A-000 SCREW
1 09148-06007-000 NUT
1 68001-80C12-000 PANEL ASSY,FRONT DOOR,R
1 82201-82C00-000 LATCH ASSY,FR DR,R
1 82610-70D02-000 STRIKER,FR DOOR LATCH
1 03111-06253-000 Screw
1 03241-06123-000 Screw
2 68002-80133-000 Panel, front door lh
2 68002-80C12-000 PANEL ASSY,FRONT DOOR,L
2 82202-82C00-000 LATCH ASSY,FR DR,L
3 68001-80023-000 Panel, front door rh
4 68002-80023-000 Panel, front door lh
5 81502-80122-45R Upper door, canvas rh - Gray
5 81502-80130-46N Door assy,half met dr upper,r
5 81502-80111-40S Upper door, canvas rh - White
5 81502-80111-40U Upper door, canvas rh - Black
5 81502-80210-55L Upper door, canvas rh - White
5 81502-80210-55M Upper door, canvas rh - Black
6 81506-80122-45R Upper door, canvas lh - Gray
6 81506-80130-46N Door assy,half met dr upper,l
6 81506-80111-40S Upper door, canvas lh - White
6 81506-80111-40U Upper door, canvas lh - Black
6 81506-80210-55L Upper door, canvas lh - White
6 81506-80210-55M Upper door, canvas lh - Black
7 79100-63850-000 HOOK SET
7 79100-63861-000 HOOK SET
8 78491-80010-000 Crochet avant
8 78490-82CA2-000 MALE,TOP DECK FR HOOK
9 69310-80110-000 HINGE,FR DOOR UPPER RH
10 69340-80110-000 ヒンジ,ドアアッパ,レフト
11 69320-80110-000 HINGE,FR DOOR LOWER RH
12 69350-80110-000 ヒンジ,ドアロア,レフト
13 09125-08002-000 スクリュ,8X20
13 09125-08015-XC0 SCREW(8X20)
14 09160-00086-000 Washer
15 76182-63101-000 PROTECTOR,OPENING TRIM
16 81811-80100-000 BAND,DR OPEN STOPPER
17 76182-58002-000 GARNISH,DR OPEN STOPPER
18 02132-05205-000 Screw
18 02122-0520A-000 SCREW
19 83710-80121-58U Trim, door rh
19 83710-80121-4GJ Trum, door rh
19 83710-80141-5GT TRIM,FRONT DOOR,R
19 83710-80250-7GL Trim, door rh
19 83710-83510-8HD Trim, door rh
19 83710-83500-8FP Trim,fr door,rh
19 83710-80200-7GU Trim, door rh
20 83720-80121-58U Trim, door lh
20 83720-80121-4GJ Trim, door lh
20 83720-80141-5GT TRIM,FRONT DOOR,L
20 83720-80250-7GL Trim, door lh
20 83720-80250-5GT TRIM,FRONT DOOR,L
20 83720-83510-8HD Trim, door lh
20 83720-80200-7GU Trim, door lh
21 09409-08309-000 CLIP
21 09409-08320-000 CLIP
22 78271-58053-281 Handle, door inside pull black
22 78271-58054-5ES HANDLE,DOOR INSIDE PULL
23 09125-06041-000 SCREW(6X20)
24 84641-80121-000 WEATHER STRIP DOOR
24 84641-82CA0-000 WEATHERSTRIP,FR DR OPNG,R
25 84651-80121-000 WEATHER STRIP DOOR OPENING
25 84651-82CA0-000 WEATHERSTRIP,FR DR OPNG,L
26 84641-80131-000 Weatherstrip, door rh
27 84651-80131-000 Weatherstrip, door lh
28 84641-80000-000 WEATHERSTRIP,DR OPNG FR
29 84642-80000-000 Weatherstrip, center
29 84642-80010-000 Weatherstrip,door opening rr
31 84630-80000-000 TRIM,DOOR OPENING
32 84645-80101-000 TRIM,FR DOOR OPENING
33 84642-80120-000 PAD,OPENING WEATHERSTRIP,R
34 84652-80120-000 PAD,OPENING WEATHERSTRIP,L
