Search › Model › SJ410P

SJ410P

Suzuki SAMURAI · 3,213 parts · 105 categories
SJ410P ×

← Back to categories

3,213 items

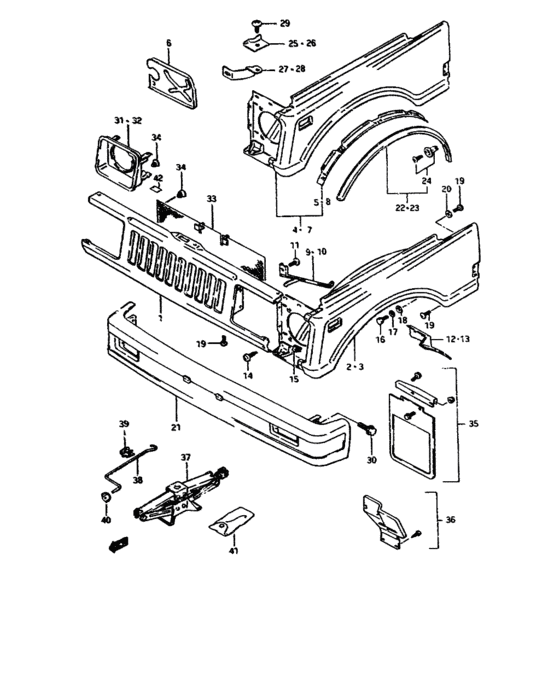

Front body (FRONT BODY) 77
#OEMPart name
1 58100-80001-000 Panel, front
1 09409-07320-000 CAP
1 58100-80003-000 PANEL,FR
1 09409-09302-000 クリップ
2 58600-80024-000 Panel, fender rh
2 58600-80110-000 PANEL ASSY,FR FENDER,R
3 58800-80025-000 Panel, fender lh
3 58800-80700-000 PANEL,FENDER,L
4 58600-80080-000 Panel, fender rh
4 58622-80002-000 HOLDER,FR FENDER EXT,R
6 58763-83001-000 BAFFLE,FR FENDER
7 58800-80080-000 Panel, fender lh
7 58800-80015-000 PANEL ASSY,FR FENDER,L
7 58822-80002-000 HOLDER,FR FENDER EXT,L
9 58723-80004-000 Member,headlamp housing rh
10 58923-80004-000 Member,headlamp housing lh
11 09125-06036-000 SCREW(6X15)
12 58771-80001-000 LINER,FR FENDER,R
13 58971-80001-000 LINER,FR FENDER,L
14 03241-06126-000 New Genuine Part
14 03241-0612A-000 SCREW
15 09148-06003-000 ナット
15 09148-06013-000 NUT
16 01107-06126-000 Bolt 6x12
16 01500-0612A-000 Bolt
17 08321-31067-000 Lock washer
17 08321-01067-000 WASHER,LOCK
18 09160-06019-000 WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)
20 09160-06003-000 Washer - Washer (6.7x16x0.8)
20 09160-06129-000 WASHER(6.5X16X1)
21 71710-80002-162 Bar, front bumper
21 71710-83001-000 BAR,FR BUMPER
22 77110-80810-281 EXTENSION,FR FENDER,R
23 77120-80810-281 EXTENSION,FR FENDER,L
24 09409-07306-000 CLIP
25 65951-80000-000 REINFORCEMENT,FENDER OUT FR,R
26 65952-80000-000 REINFORCEMENT,FENDER OUT FR,L
27 65953-80000-000 STAY,FRONT FENDER,R
28 65954-80000-000 STAY,FRONT FENDER,L
29 09125-06075-000 Screw,cowl front - Screw, cowl front (6x18)
29 09125-06029-000 SCREW(6X18) - Screw (6x18)
30 01514-08123-000 Bolt
30 01550-0812A-000 Bolt
30 01550-0812B-000 Bolt - Plug, drain
31 72111-80002-07B グリル,ライト(ブラック)
31 72111-80002-000 GRILLE,R(PRIMARY)
31 72111-80002-09H Grille, head lamp rh - Yellow
31 72111-80002-09R Grille, head lamp rh - Blue met,allic
31 72111-80002-17A グリル,ライト(ホワイト)
31 72111-80002-18J グリル,ライト(シルバーメタ)
31 72111-80002-21L Grille, head lamp rh - Red
31 72111-80002-26F グリル,ライト(クアトロブルー)
31 72111-80002-27G Grille, head lamp rh - Dark gre,en
31 72111-80002-19H Grille, head lamp rh - Emerald,green
32 72161-80002-07B グリル,レフト(ブラック)
32 72161-80002-000 GRILLE,L(PRIMARY)
32 72161-80002-09N Grille, head lamp lh - Yellow
32 72161-80002-09R Grille, head lamp lh - Blue met,allic
32 72161-80002-17A グリル,レフト(ホワイト)
32 72161-80002-18J グリル,レフト(シルバーメタ)
32 72161-80002-21L Grille, head lamp lh - Red
32 72161-80002-26F グリル,レフト(クアトロブルー)
32 72161-80002-27G Grille, head lamp lh - Dark gre,en
32 72161-80002-19H Grille, head lamp lh - Emerald,green
33 72120-80000-000 NET,FR PANEL
35 72210-80090-000 FLAP SET,FR MUD
36 72200-80810-000 カバーセット,マッド/スノー
37 09824-00041-000 Jack assy
37 89910-70A30-000 Jack assy
38 09824-00031-000 ハンドル,ジャッキ
38 09824-00017-000 HANDLE,JACK
39 09403-09309-000 CLAMP - Clamp, switch housing
40 09308-14006-000 GROMMET
41 09800-53800-000 Tool assy
41 09800-40024-000 TOOL ASSY - Spanner, wheel wrench, pliers, screwdriver, jack handle;
42 72441-80002-000 Film, hood cushion
42 72878-57C00-000 PROTECTOR
