| 01107-06126-000 |
Bolt 6x12 |

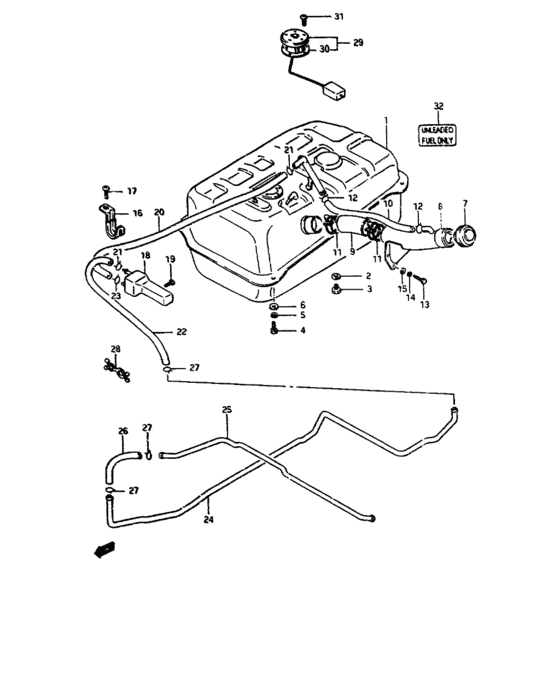

Fuel tank (K, P) |
| 01107-10256-000 |
Bolt 10x25 upper |
Fuel tank (K, P) |
| 01500-0612A-000 |
Bolt |
Fuel tank (K, P) |
| 01500-1025A-000 |
Bolt |
Fuel tank (K, P) |
| 02112-05087-000 |
SCREW |
Fuel tank (K, P) |
| 02112-05088-000 |
Screw |
Fuel tank (K, P) |
| 03141-06108-000 |
New Genuine Part |
Fuel tank (K, P) |
| 03141-0610A-000 |
SCREW |
Fuel tank (K, P) |
| 08321-0106A-000 |
WASHER,LOCK |
Fuel tank (K, P) |
| 08321-0110A-000 |
WASHER,LOCK |
Fuel tank (K, P) |
| 08321-0110B-000 |
WASHER,LOCK - Washer, knuckle end |
Fuel tank (K, P) |
| 08321-21066-000 |
Lock washer |
Fuel tank (K, P) |
| 08321-21106-000 |
Lock washer |
Fuel tank (K, P) |
| 08322-0106B-000 |
WASHER |
Fuel tank (K, P) |
| 08322-0110A-000 |
WASHER - Washer, knuckle end |
Fuel tank (K, P) |
| 08322-0110B-000 |
WASHER - Washer, knuckle end |
Fuel tank (K, P) |
| 08322-21066-000 |
Washer |
Fuel tank (K, P) |
| 08322-21106-000 |
Washer 10mm |
Fuel tank (K, P) |
| 09168-12005-000 |
ガスケット,12X21X1.5 |
Fuel tank (K, P) |
| 09168-12018-000 |
GASKET(12X21X2) |
Fuel tank (K, P) |
| 09247-12101-000 |
Bolt |
Fuel tank (K, P) |
| 09343-05044-000 |
Hose - Hose, inspection (l:1425@r180) |
Fuel tank (K, P) |
| 09343-05165-000 |
Hose, vacuum (l:890->30) |
Fuel tank (K, P) |
| 09343-11024-000 |
ホース,11X15X710 |
Fuel tank (K, P) |
| 09352-11153-00B |
HOSE(11X15X2000) - Hose, breather |
Fuel tank (K, P) |
| 09352-11154-00B |
Hose(11X15X2000) |
Fuel tank (K, P) |
| 09352-50005-00B |
Hose(5X8.2X2000) |
Fuel tank (K, P) |
| 09352-50823-00B |
HOSE(5X8.2X2000) - Hose (vapor sep to filter) |
Fuel tank (K, P) |
| 09355-54115-00B |
HOSE(5.4X11.4X2000) |
Fuel tank (K, P) |
| 09400-58301-000 |
CLAMP |
Fuel tank (K, P) |
| 09401-08402-000 |
CLIP |
Fuel tank (K, P) |
| 09401-12301-000 |
CLIP |
Fuel tank (K, P) |
| 09401-15301-000 |
CLIP |
Fuel tank (K, P) |
| 09404-06602-000 |
Clamp |
Fuel tank (K, P) |
| 09408-00013-000 |
CLAMP |
Fuel tank (K, P) |
| 34810-80001-000 |
Gauge assy, fuel level |
Fuel tank (K, P) |
| 34810-80700-000 |
GAUGE ASSY,FUEL LEVEL |
Fuel tank (K, P) |
| 34825-67012-000 |
GASKET |
Fuel tank (K, P) |
| 85410-79202-000 |
キャップアッシ,フューエルタンクフィラ |
Fuel tank (K, P) |
| 85421-79000-000 |
SEPARATOR,FUEL |
Fuel tank (K, P) |
| 86932-73060-000 |
LABEL,FUEL CAUTION - Label, fuel caution |
Fuel tank (K, P) |
| 89101-80213-000 |
Tank assy, fuel |
Fuel tank (K, P) |
| 89101-80216-000 |
Tank assy,fuel |
Fuel tank (K, P) |
| 89101-80222-000 |
Tank assy, fuel |
Fuel tank (K, P) |
| 89210-80200-000 |
Inlet, fuel |
Fuel tank (K, P) |
| 89210-80210-000 |
Inlet, fuel |
Fuel tank (K, P) |
| 89241-80200-000 |
Pipe, inlet joint |
Fuel tank (K, P) |
| 89260-50C00-000 |
CAP ASSY,FUEL FILLER |
Fuel tank (K, P) |
| 89260-83000-000 |
Cap assy, fuel filler |
Fuel tank (K, P) |
| 89300-83810-000 |
CAP SET,FUEL FILLER |
Fuel tank (K, P) |
| 89431-83200-000 |
Pipe, evaporation no.1 |
Fuel tank (K, P) |
| 89432-83000-000 |
Pipe,evaporation no.2 |
Fuel tank (K, P) |
