Search › Model › SJ410
SJ410

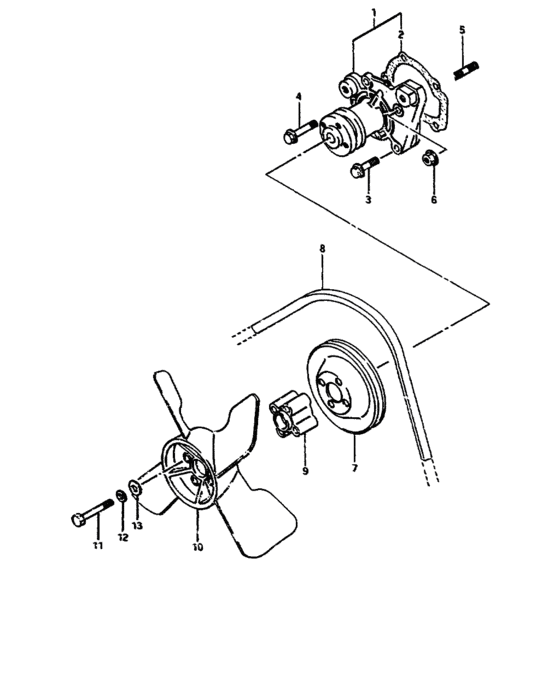

Water pump (WATER PUMP) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-78821-000 | PUMP ASSY,WATER |
| 2 | 17431-73001-000 | GASKET,WATER PUMP |
| 3 | 01517-06303-000 | BOLT M6X1X30 |
| 3 | 01550-0630A-000 | Bolt |
| 4 | 01537-06403-000 | New Genuine Part |
| 4 | 01550-0640B-000 | Bolt |
| 5 | 09103-06040-000 | Bolt cyl head c - Bolt (6x55) |
| 5 | 09103-06040-XC0 | BOLT(6X55) |
| 6 | 08316-16063-000 | Nut |
| 6 | 08316-1006B-000 | NUT |
| 7 | 17511-73001-000 | PULLEY,WATER PUMP |
| 8 | 17521-71520-000 | BELT,WATER PUMP L:758 |
| 9 | 17131-80000-000 | HUB,COOLING FAN |
| 10 | 17111-73000-000 | FAN,ENG COOLING |
| 11 | 01107-06503-000 | ボルト |
| 11 | 01500-0650A-000 | Bolt |
| 12 | 08321-21063-000 | Lock washer |
| 12 | 08321-0106A-000 | WASHER,LOCK |
| 13 | 08322-21063-000 | Washer |
| 13 | 08322-0106B-000 | WASHER |
| OEM | Part name | Category |
|---|---|---|
| 01107-06503-000 | ボルト | Water pump (WATER PUMP) |
| 01500-0650A-000 | Bolt | Water pump (WATER PUMP) |
| 01517-06303-000 | BOLT M6X1X30 | Water pump (WATER PUMP) |
| 01537-06403-000 | New Genuine Part | Water pump (WATER PUMP) |
| 01550-0630A-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0640B-000 | Bolt | Water pump (WATER PUMP) |
| 08316-1006B-000 | NUT | Water pump (WATER PUMP) |
| 08316-16063-000 | Nut | Water pump (WATER PUMP) |
| 08321-0106A-000 | WASHER,LOCK | Water pump (WATER PUMP) |
| 08321-21063-000 | Lock washer | Water pump (WATER PUMP) |
| 08322-0106B-000 | WASHER | Water pump (WATER PUMP) |
| 08322-21063-000 | Washer | Water pump (WATER PUMP) |
| 09103-06040-000 | Bolt cyl head c - Bolt (6x55) | Water pump (WATER PUMP) |
| 09103-06040-XC0 | BOLT(6X55) | Water pump (WATER PUMP) |
| 17111-73000-000 | FAN,ENG COOLING | Water pump (WATER PUMP) |
| 17131-80000-000 | HUB,COOLING FAN | Water pump (WATER PUMP) |
| 17400-78821-000 | PUMP ASSY,WATER | Water pump (WATER PUMP) |
| 17431-73001-000 | GASKET,WATER PUMP | Water pump (WATER PUMP) |
| 17511-73001-000 | PULLEY,WATER PUMP | Water pump (WATER PUMP) |
| 17521-71520-000 | BELT,WATER PUMP L:758 | Water pump (WATER PUMP) |
