Search › Model › SJ410

SJ410

Suzuki SAMURAI · 3,213 parts · 105 categories

3,213 items

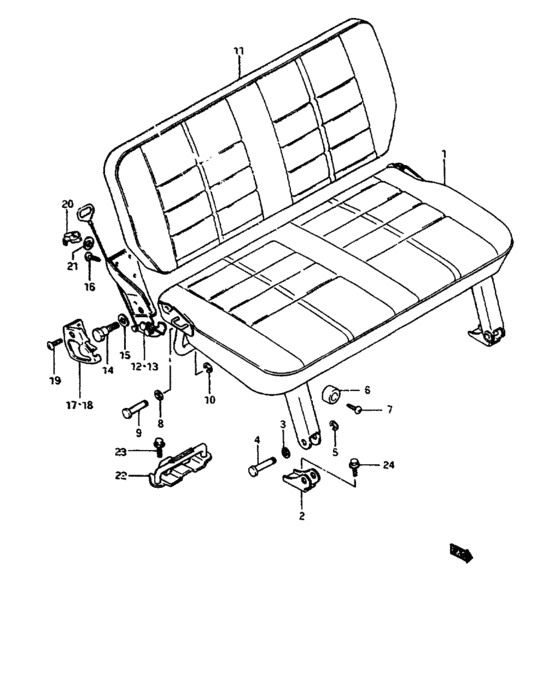

Rear seat (TYPE 3:W) 37

#	OEM	Part name
1	87101-80741-7GL	Cushion assy, rear seat
2	87271-80121-000	Male, seat hinge
2	87271-80280-000	MALE,RR SEAT HNG
3	09164-07001-000	WASHER
4	09208-06001-000	ピン
4	87259-56B10-000	PIN,REAR SEAT HINGE
4	09148-06008-000	NUT - Nut, adjuster knob
4	87259-83000-000	ピン,リヤシートヒンジ
4	09148-06005-000	Nut seat moldin
5	08332-11046-000	E ring
5	08332-1104B-000	E RING
5	08332-1104A-000	E RING
6	09320-06006-000	CUSHION
7	03142-05209-000	Screw
7	03142-0520B-000	SCREW
9	09208-06003-000	Pin
9	87259-85510-000	PIN
11	87301-80570-7GL	Back assy, rear seat
12	87210-80281-000	Lock, hinge rh
13	87610-80281-000	Lock, hinge lh
14	09111-08044-000	BOLT(8X16)
15	08321-21107-000	Lock washer
15	08321-01107-000	WASHER,LOCK - Lock washer
16	02142-06167-000	SCREW
17	87229-80200-000	COVER,RR SEAT BACK HINGE,R
18	87629-80200-000	COVER,RR SEAT BACK HINGE,L
19	03241-05086-000	New Genuine Part
19	03241-0508A-000	SCREW
20	09403-06403-000	CLAMP
21	87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP
22	87830-80270-000	STRIKER,SEAT BELT STOPPER
23	01517-10256-000	Boulon
23	01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l
23	01550-1025A-000	Bolt - Bolt, drive gear
24	01517-08126-000	Bolt, front
24	01550-0812B-000	Bolt - Plug, drain
24	01550-0812A-000	Bolt

OEM	Part name	Category
01517-08126-000	Bolt, front	Rear seat (TYPE 3:W)
01517-10256-000	Boulon	Rear seat (TYPE 3:W)
01550-0812A-000	Bolt	Rear seat (TYPE 3:W)
01550-0812B-000	Bolt - Plug, drain	Rear seat (TYPE 3:W)
01550-1025A-000	Bolt - Bolt, drive gear	Rear seat (TYPE 3:W)
01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l	Rear seat (TYPE 3:W)
02142-06167-000	SCREW	Rear seat (TYPE 3:W)
03142-05209-000	Screw	Rear seat (TYPE 3:W)
03142-0520B-000	SCREW	Rear seat (TYPE 3:W)
03241-05086-000	New Genuine Part	Rear seat (TYPE 3:W)
03241-0508A-000	SCREW	Rear seat (TYPE 3:W)
08321-01107-000	WASHER,LOCK - Lock washer	Rear seat (TYPE 3:W)
08321-21107-000	Lock washer	Rear seat (TYPE 3:W)
08332-11046-000	E ring	Rear seat (TYPE 3:W)
08332-1104A-000	E RING	Rear seat (TYPE 3:W)
08332-1104B-000	E RING	Rear seat (TYPE 3:W)
09111-08044-000	BOLT(8X16)	Rear seat (TYPE 3:W)
09148-06005-000	Nut seat moldin	Rear seat (TYPE 3:W)
09148-06008-000	NUT - Nut, adjuster knob	Rear seat (TYPE 3:W)
09164-07001-000	WASHER	Rear seat (TYPE 3:W)
09208-06001-000	ピン	Rear seat (TYPE 3:W)
09208-06003-000	Pin	Rear seat (TYPE 3:W)
09320-06006-000	CUSHION	Rear seat (TYPE 3:W)
09403-06403-000	CLAMP	Rear seat (TYPE 3:W)
87101-80741-7GL	Cushion assy, rear seat	Rear seat (TYPE 3:W)
87210-80281-000	Lock, hinge rh	Rear seat (TYPE 3:W)
87229-80200-000	COVER,RR SEAT BACK HINGE,R	Rear seat (TYPE 3:W)
87259-56B10-000	PIN,REAR SEAT HINGE	Rear seat (TYPE 3:W)
87259-83000-000	ピン,リヤシートヒンジ	Rear seat (TYPE 3:W)
87259-85510-000	PIN	Rear seat (TYPE 3:W)
87271-80121-000	Male, seat hinge	Rear seat (TYPE 3:W)
87271-80280-000	MALE,RR SEAT HNG	Rear seat (TYPE 3:W)
87301-80570-7GL	Back assy, rear seat	Rear seat (TYPE 3:W)
87328-83000-000	WASHER,HINGE LOCK HANDLE CLAMP	Rear seat (TYPE 3:W)
87610-80281-000	Lock, hinge lh	Rear seat (TYPE 3:W)
87629-80200-000	COVER,RR SEAT BACK HINGE,L	Rear seat (TYPE 3:W)
87830-80270-000	STRIKER,SEAT BELT STOPPER	Rear seat (TYPE 3:W)

Source: Public OEM parts-catalog data
Variants: 2 / 31
Category: 105
Collected: 2026-08-01
