| 08310-00123-000 |
Nut |

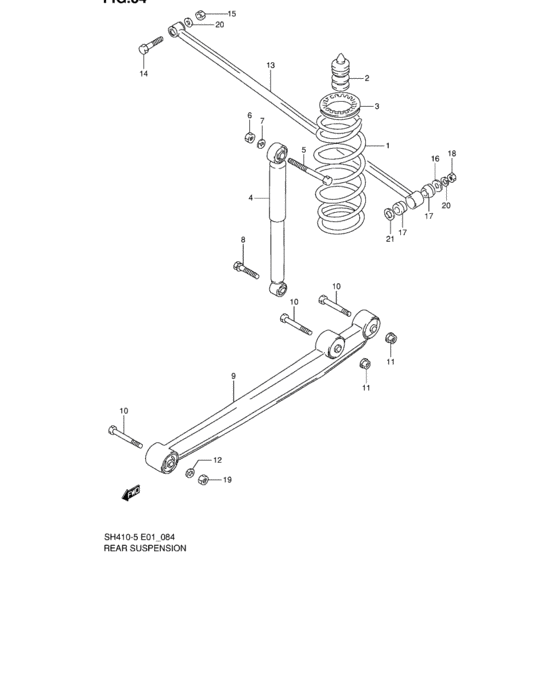

Rear suspension (REAR SUSPENSION) |
| 08310-0012A-000 |
NUT |
Rear suspension (REAR SUSPENSION) |
| 08321-01123-000 |
Washer - Lock washer |
Rear suspension (REAR SUSPENSION) |
| 08321-0112A-000 |
WASHER,LOCK |
Rear suspension (REAR SUSPENSION) |
| 09103-12057-000 |
BOLT(12X88) |
Rear suspension (REAR SUSPENSION) |
| 09103-12501-000 |
BOLT(12X55) |
Rear suspension (REAR SUSPENSION) |
| 09117-12004-000 |
ボルト,12X57 |
Rear suspension (REAR SUSPENSION) |
| 09117-12014-000 |
BOLT(12X57) |
Rear suspension (REAR SUSPENSION) |
| 09159-12025-000 |
NUT |
Rear suspension (REAR SUSPENSION) |
| 09160-12096-000 |
WASHER(12.5X36X2.3) |
Rear suspension (REAR SUSPENSION) |
| 09160-17045-000 |
WASHER(17X35X2.6) |
Rear suspension (REAR SUSPENSION) |
| 09305-16005-000 |
BUSH |
Rear suspension (REAR SUSPENSION) |
| 41311-M72F0-000 |
Spring, rear coil |
Rear suspension (REAR SUSPENSION) |
| 41341-50A00-000 |
SEAT,REAR SPRING UPPER |
Rear suspension (REAR SUSPENSION) |
| 41800-70F00-000 |
ABSORBER ASSY,RR SHOCK |
Rear suspension (REAR SUSPENSION) |
| 41800-70F01-000 |
ABSORBER ASSY,RR SHOCK |
Rear suspension (REAR SUSPENSION) |
| 41981-60D00-000 |
BOLT,RR SHK ABSORBER UPR |
Rear suspension (REAR SUSPENSION) |
| 42251-50A00-000 |
STOPPER,RR BUMP |
Rear suspension (REAR SUSPENSION) |
| 46200-52E00-000 |
ARM ASSY,RR TRAILING |
Rear suspension (REAR SUSPENSION) |
| 46300-M70F0-000 |
Rod assy, lateral |
Rear suspension (REAR SUSPENSION) |
