Search › Model › SH410
SH410

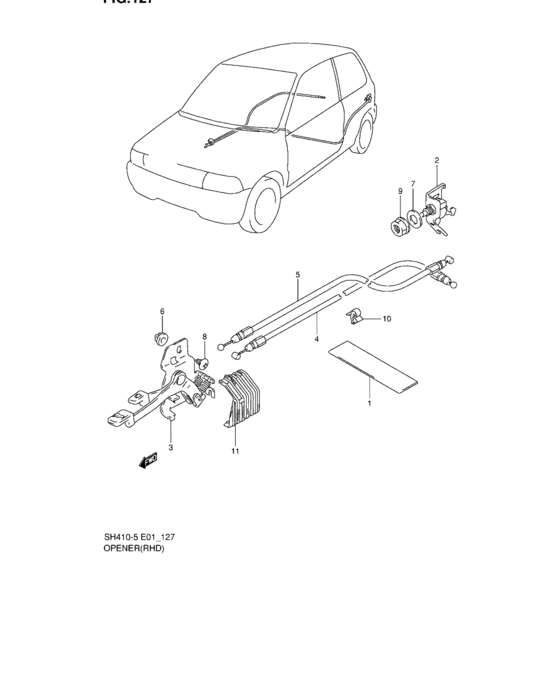

Opener (RHD) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 36930-M70F0-000 | Cover, door wire |
| 2 | 76520-M70F0-000 | Opener assy, fuel lid |
| 3 | 83310-51E00-000 | LEVER,BACK DR OPENER |
| 4 | 83340-70B00-000 | ケーブル,バックドアオープナ |
| 4 | 83340-70B0V-000 | CABLE,TRUNK LID OPENER,L |
| 5 | 83350-72F00-000 | ケーブル,フューエルリッドオープナ,ライト |
| 5 | 83350-72F0V-000 | CABLE,FUEL LID OPENER,R |
| 6 | 09148-06007-000 | NUT |
| 7 | 09160-13011-000 | WASHER(13X21X2.5) |
| 8 | 03541-06103-000 | Screw |
| 8 | 03541-0610B-000 | SCREW |
| 9 | 08316-10103-000 | Nut |
| 9 | 08316-1010B-000 | NUT |
| 10 | 83349-M70F0-000 | Clamp, Cable |
| 11 | 83319-50E01-000 | COVER,BACK DR OPENER LEVER,R |
| OEM | Part name | Category |
|---|---|---|
| 03541-06103-000 | Screw | Opener (RHD) |
| 03541-0610B-000 | SCREW | Opener (RHD) |
| 08316-10103-000 | Nut | Opener (RHD) |
| 08316-1010B-000 | NUT | Opener (RHD) |
| 09148-06007-000 | NUT | Opener (RHD) |
| 09160-13011-000 | WASHER(13X21X2.5) | Opener (RHD) |
| 36930-M70F0-000 | Cover, door wire | Opener (RHD) |
| 76520-M70F0-000 | Opener assy, fuel lid | Opener (RHD) |
| 83310-51E00-000 | LEVER,BACK DR OPENER | Opener (RHD) |
| 83319-50E01-000 | COVER,BACK DR OPENER LEVER,R | Opener (RHD) |
| 83340-70B00-000 | ケーブル,バックドアオープナ | Opener (RHD) |
| 83340-70B0V-000 | CABLE,TRUNK LID OPENER,L | Opener (RHD) |
| 83349-M70F0-000 | Clamp, Cable | Opener (RHD) |
| 83350-72F00-000 | ケーブル,フューエルリッドオープナ,ライト | Opener (RHD) |
| 83350-72F0V-000 | CABLE,FUEL LID OPENER,R | Opener (RHD) |
