SH410

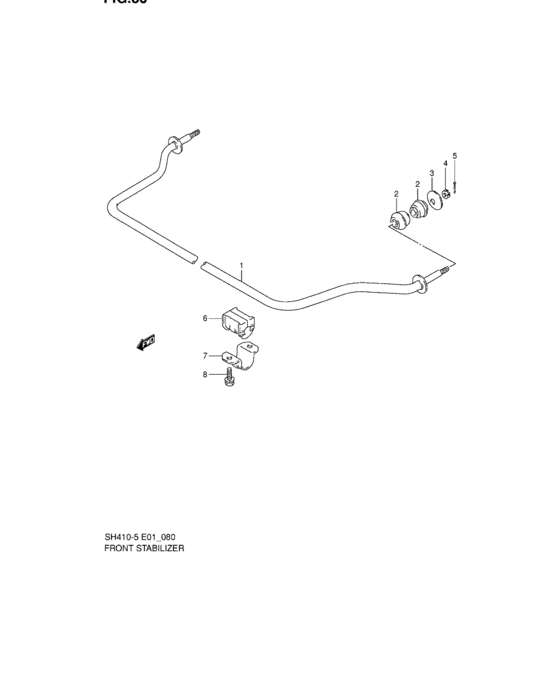

Front stabilizer (FRONT STABILIZER) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 42310-M70F0-000 | Bar, front stabilizer |
| 2 | 42451-69D01-000 | BUSHING,STAB BAR MOUNT |
| 3 | 09164-12017-000 | WASHER |
| 4 | 08314-40123-000 | Nut - Nut, knuckle end |
| 4 | 08314-4012A-000 | NUT |
| 5 | 04111-30206-000 | コッタピン |
| 5 | 04111-3020A-000 | PIN |
| 6 | 42431-70B42-000 | MOUNT,STAB |
| 7 | 42441-70B00-000 | BRACKET,STABILIZER BAR MOUNT |
| 8 | 09112-10002-000 | BOLT(10X25) |
| OEM | Part name | Category |
|---|---|---|
| 04111-30206-000 | コッタピン | Front stabilizer (FRONT STABILIZER) |
| 04111-3020A-000 | PIN | Front stabilizer (FRONT STABILIZER) |
| 08314-40123-000 | Nut - Nut, knuckle end | Front stabilizer (FRONT STABILIZER) |
| 08314-4012A-000 | NUT | Front stabilizer (FRONT STABILIZER) |
| 09112-10002-000 | BOLT(10X25) | Front stabilizer (FRONT STABILIZER) |
| 09164-12017-000 | WASHER | Front stabilizer (FRONT STABILIZER) |
| 42310-M70F0-000 | Bar, front stabilizer | Front stabilizer (FRONT STABILIZER) |
| 42431-70B42-000 | MOUNT,STAB | Front stabilizer (FRONT STABILIZER) |
| 42441-70B00-000 | BRACKET,STABILIZER BAR MOUNT | Front stabilizer (FRONT STABILIZER) |
| 42451-69D01-000 | BUSHING,STAB BAR MOUNT | Front stabilizer (FRONT STABILIZER) |
