SH410

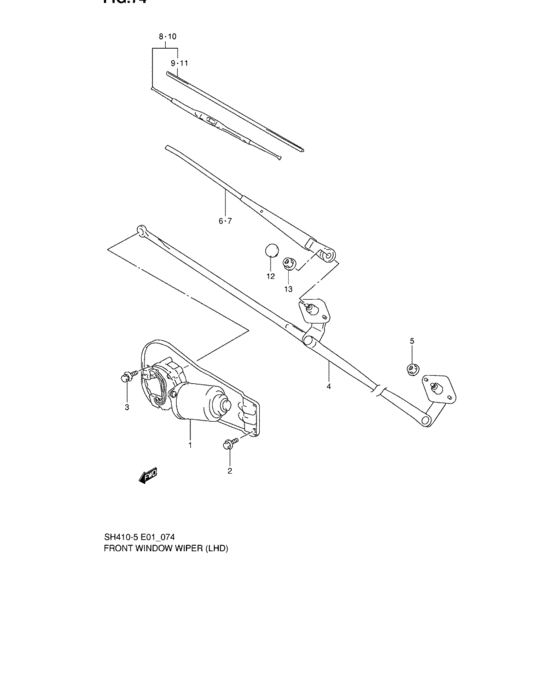

Fr window wiper (LHD) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-M70F1-000 | Motor & bracket assy, wiper |
| 2 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 2 | 09115-06005-000 | BOLT(6X16) |
| 3 | 01580-06123-000 | Bolt |
| 3 | 01580-0612B-000 | Bolt |
| 3 | 01580-0612A-000 | Bolt |
| 4 | 38102-M70F1-000 | Link assy, wiper |
| 5 | 08316-10063-000 | Nut |
| 5 | 08316-1006B-000 | NUT |
| 6 | 38310-70F10-000 | ARM ASSY,WIPER DRVR |
| 7 | 38330-70F10-000 | ARM ASSY,WIPER ASST |
| 8 | 38340-70F10-000 | BLADE ASSY,WIPER,DRVR |
| 9 | 38346-70F10-000 | BLADE,R |
| 10 | 38340-70F30-000 | Blade assy,wiper,as |
| 11 | 38346-70F00-000 | BLADE,L |
| 12 | 38344-50E00-000 | CAP,WIPER ARM |
| 13 | 08316-10083-000 | Nut |
| 13 | 08316-1008B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01580-06123-000 | Bolt | Fr window wiper (LHD) |
| 01580-0612A-000 | Bolt | Fr window wiper (LHD) |
| 01580-0612B-000 | Bolt | Fr window wiper (LHD) |
| 08316-10063-000 | Nut | Fr window wiper (LHD) |
| 08316-1006B-000 | NUT | Fr window wiper (LHD) |
| 08316-10083-000 | Nut | Fr window wiper (LHD) |
| 08316-1008B-000 | NUT | Fr window wiper (LHD) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Fr window wiper (LHD) |
| 09115-06005-000 | BOLT(6X16) | Fr window wiper (LHD) |
| 38101-M70F1-000 | Motor & bracket assy, wiper | Fr window wiper (LHD) |
| 38102-M70F1-000 | Link assy, wiper | Fr window wiper (LHD) |
| 38310-70F10-000 | ARM ASSY,WIPER DRVR | Fr window wiper (LHD) |
| 38330-70F10-000 | ARM ASSY,WIPER ASST | Fr window wiper (LHD) |
| 38340-70F10-000 | BLADE ASSY,WIPER,DRVR | Fr window wiper (LHD) |
| 38340-70F30-000 | Blade assy,wiper,as | Fr window wiper (LHD) |
| 38344-50E00-000 | CAP,WIPER ARM | Fr window wiper (LHD) |
| 38346-70F00-000 | BLADE,L | Fr window wiper (LHD) |
| 38346-70F10-000 | BLADE,R | Fr window wiper (LHD) |
